Description

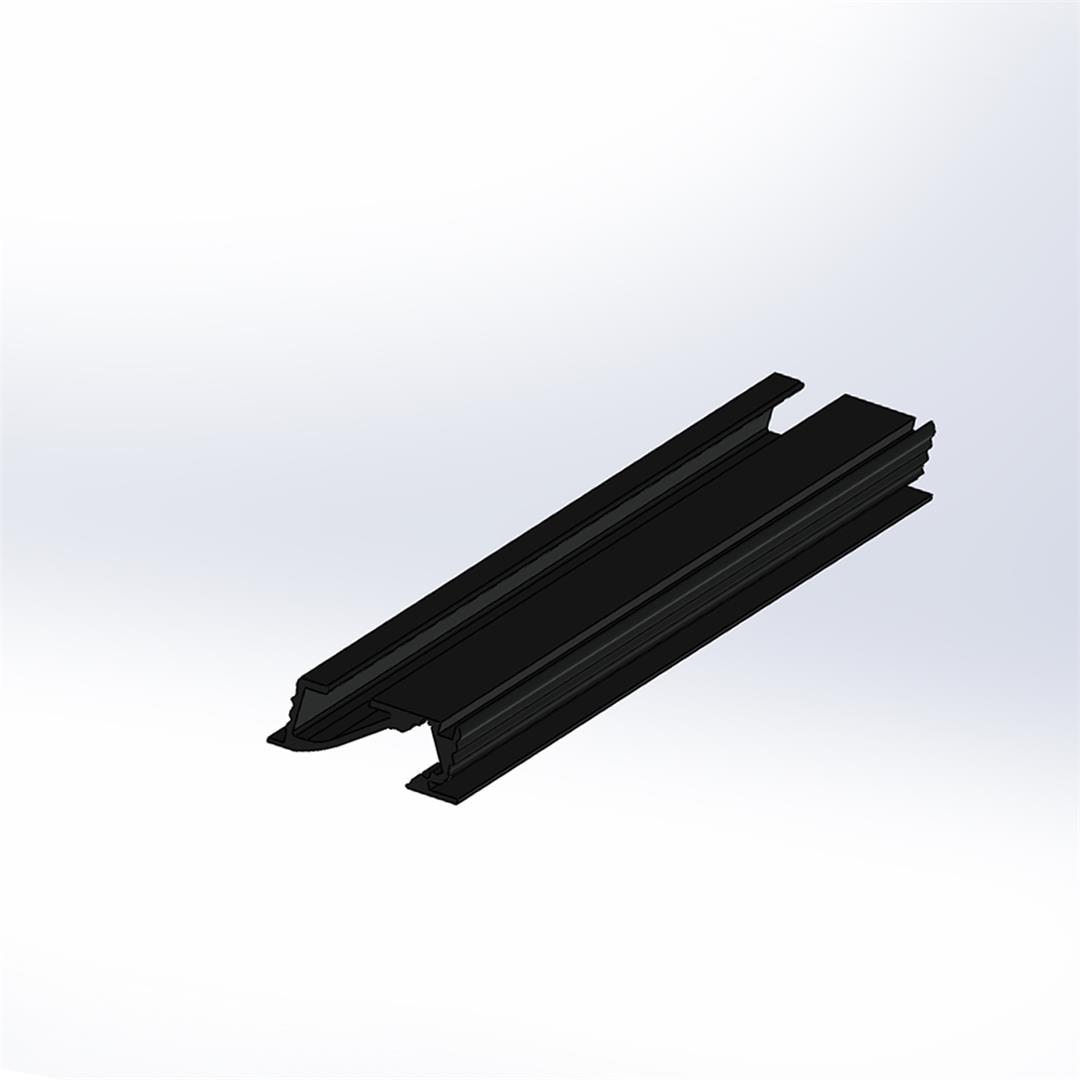

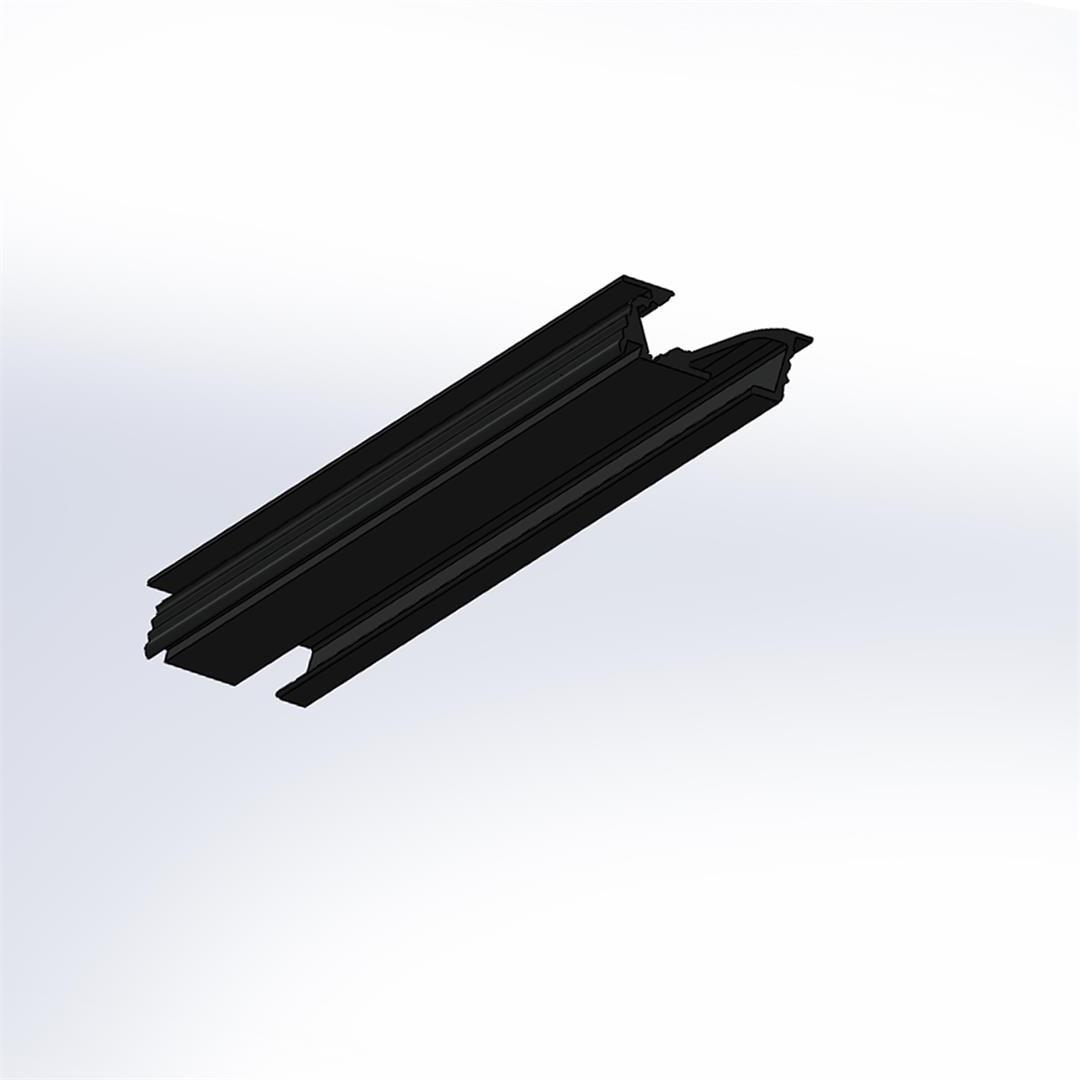

-Extruded Aluminum profile
-Extruded Polycarbonate Milky Diffuser
-ABS End Caps Used
-Flexible LED PCB Used
-External Constant Voltage Power Supply Used
-SS Clips For Mounting
-Mounting: Wall / Ceiling recessed mount with mounting Clips

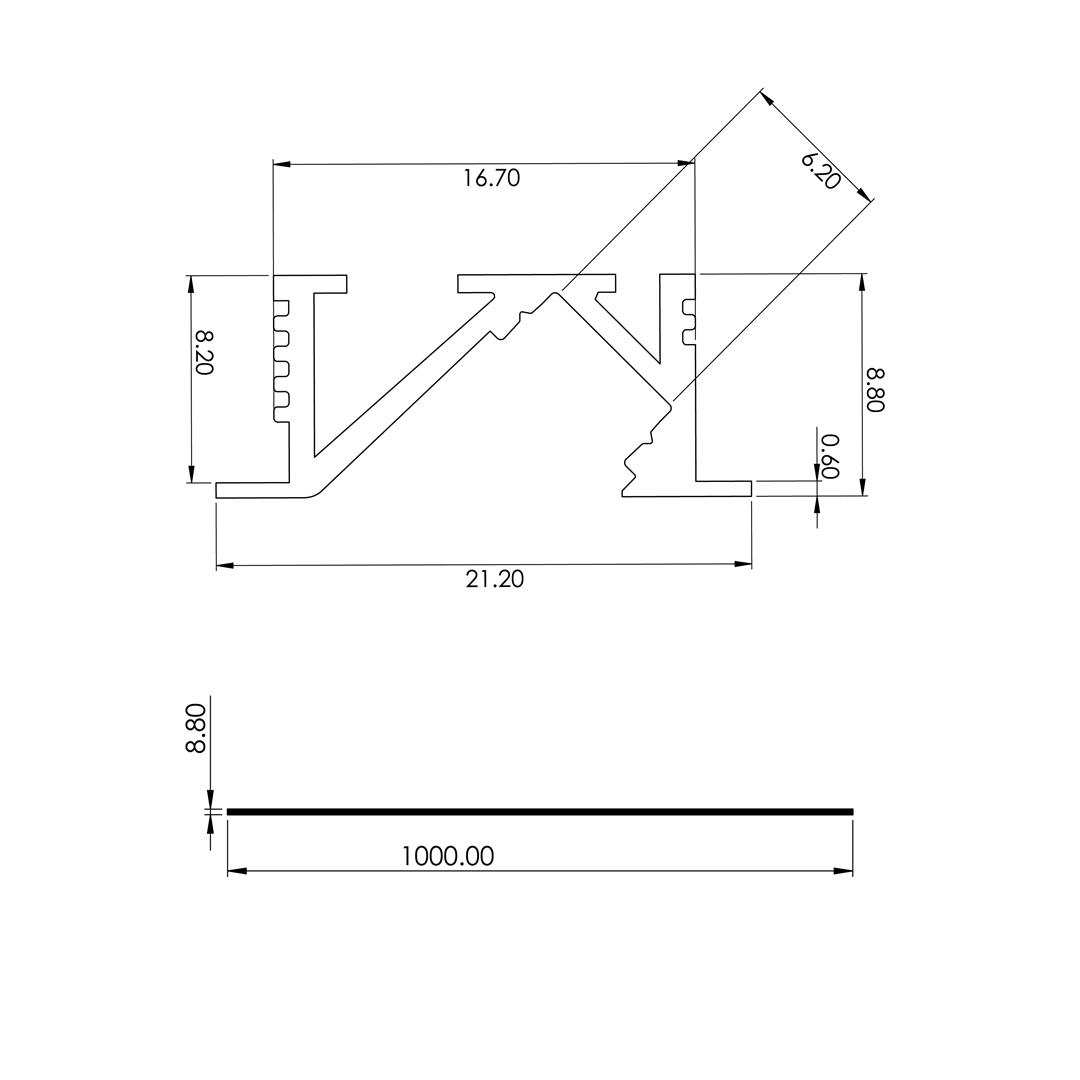

Mechanical Details
| Material | Aluminum |
| Finish | No Coating |
| Size | L-1000XW-21XH-09mm |
| Cutout | L-1000XW-17XH-08mm |
| Rotation and Tilt | NA |
| DIFFUSER | Polycarbonate milky Diffuser |
| Cable Entry | Single Entry |
| Power Supply | External |
| IP Rating | IP20 |
Technical Details
| Lamp | LED |
| Input Power | 5W |
| Color Temperature | 4000 K |
| Lumen | 420 LM |
| Efficacy | 84 LM/W |
| Beam Angle | V-68°XH-112° |
| Input Voltage | 24VDC |
| Driving System | Constant Voltage |
| Dimming Type | DALI DIMMABLE |
| CRI | 80+ |
| MacAdam | <3 |
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
| Safety Class | Class III (SELV) |
| System Warranty | 1 Year |
