Low Power Laser Spot (24V DC Input)

Low Power Laser Spot (24V DC Input)

Beam Angle - 12° /  40°
1,346
Product Code : LPLS
Availability:
Size (mm) / Input Power (Watts)
Reflector / Cone
Trim
Beam Angle
Color Temp
DrIving System
Select Qty:
Add to Wish List

* Shipping charges additional to be paid at the time of receiving delivery. To know more chat with us.

Description


- Extruded Aluminium Housing

- Polycarbonate Narrow Beam Primary Reflector Used

- Polycarbonate Secondary Reflector Used  to avoid glare

- MCPCB Used For Better Heat Dissipation

- Metal End Caps Used

- SS Mounting Clips Provided

- Protection : IP20

- Mounting : Recessed Mounting

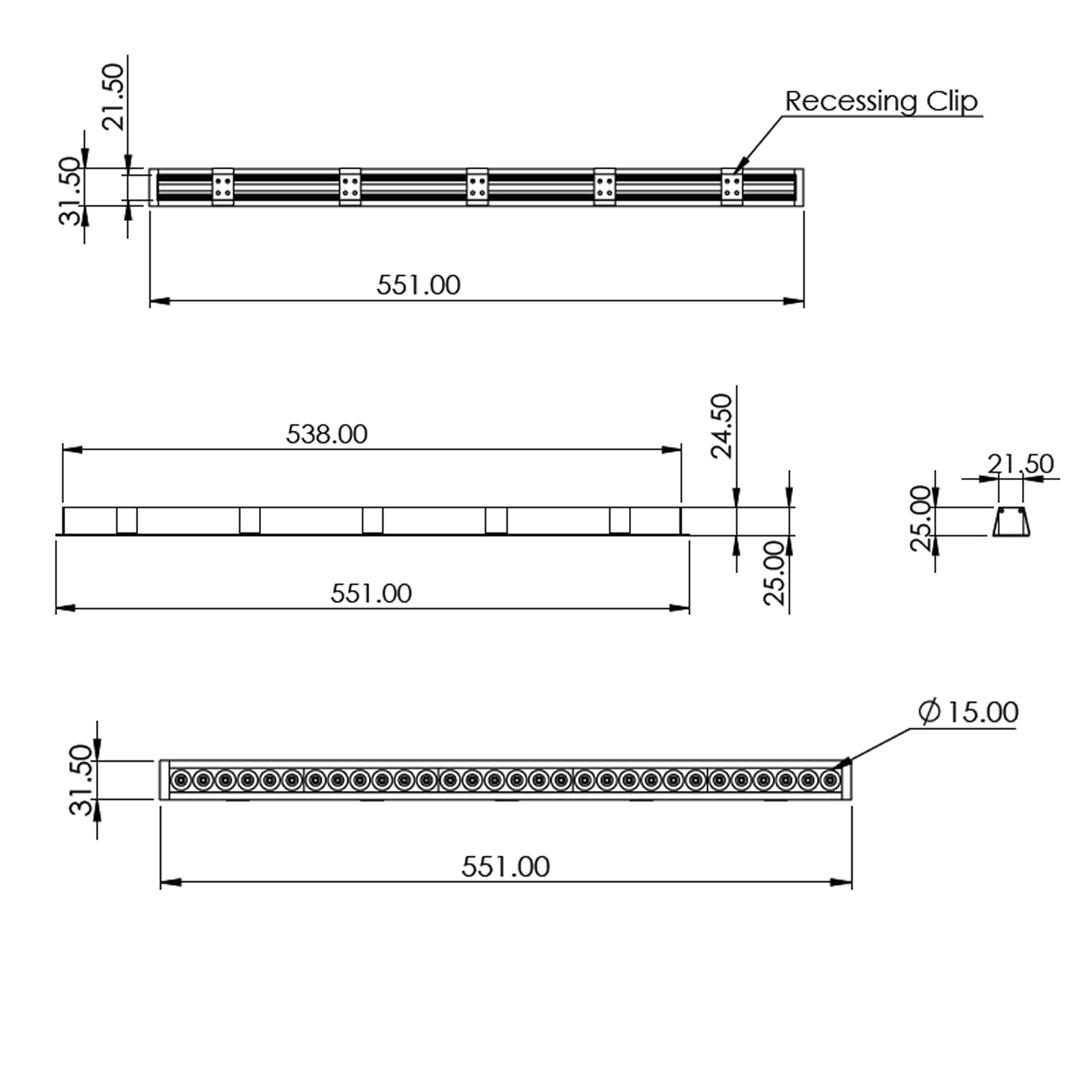

Mechanical Details

MaterialExtruded Aluminum
FinishWhite / Black
Watt / Size

6.7 Watt - 442X31X25mm

8.3 Watt - 550X31X25mm

9.9 Watt - 657X31X25mm

11.5 Watt - 765X31X25mm

13.1 Watt - 872X31X25mm

14.7 Watt - 980X31X25mm

16.3 Watt - 1087X31X25mm

17.9 Watt - 1195X31X25mm

19.5 Watt - 1302X31X25mm

21.1 Watt - 1409X31X25mm

22.7 Watt - 1516X31X25mm

24.3 Watt - 1624X31X25mm

27.5 Watt - 1731X31X25mm

29.1 Watt - 1838X31X25mm

30.7 Watt - 1945X31X25mm

32.3 Watt - 2052X31X25mm

33.9 Watt - 2160X31X25mm

35.5 Watt - 2267X31X25mm

37.1 Watt - 2374X31X25mm

38.7 Watt - 2481X31X25mm

40.3 Watt - 2588X31X25mm

41.9 Watt - 2696X31X25mm

43.5 Watt - 2803X31X25mm

45.1 Watt - 2910X31X25mm

46.7 Watt - 3017X31X25mm

48.3 Watt - 3125X31X25mm

49.9 Watt - 3232X31X25mm

51.5 Watt -  3334X31X25mm

53.1 Watt -  3446X31X25mm

54.7 Watt -   3553X31X25mm

56.3 Watt -   3660X31X25mm

57.9 Watt -   3768X31X25mm

59.5 Watt -   3875X31X25mm

61.1 Watt -   3982X31X25mm

CutoutW - 25mm
SwivelNO
BendableNO
Primary ReflectorPolycarbonate Lens
Secondary Reflector
Polycarbonate Anti Glare Reflector (White / Black / Dark Silver)
Cable EntrySingle Cable Entry
Power SupplyExternal Constant Current power supply
End CapsMetal Endcaps Used
Mounting ClipsSS Mounting Clips Provided
IP RatingIP20

 Technical Details

Light SourceLED
Input Power6.7 Watt
8.3 Watt
9.9 Watt
11.5 Watt
13.1 Watt
14.7 Watt
16.3 Watt
17.9 Watt
19.5 Watt
21.1 Watt
22.7 Watt
24.3 Watt
27.5 Watt
29.1 Watt
30.7 Watt
32.3 Watt
33.9 Watt
35.5 Watt
37.1 Watt
38.7 Watt
40.3 Watt
41.9 Watt
43.5 Watt
45.1 Watt
46.7 Watt
48.3 Watt
49.9 Watt
51.5 Watt
53.1 Watt
54.7 Watt
56.3 Watt
57.9 Watt
59.5 Watt
61.1 Watt
Color Temperature3000k /4000k / 6000K
Lumen

Beam Angle - 12°

6.7W - 409 / 422 / 436 lm

8.3W - 506 / 523 / 540 lm

9.9W - 604 / 624 / 644 lm

11.5W - 702 / 725 / 748 lm

13.1W - 799 / 825 / 852 lm

14.7 W - 897 / 926 / 956 lm

16.3 W - 994 / 1027 / 1060 lm

17.9 W - 1092 / 1128 / 1164 lm

19.5 W - 1190 / 1229 / 1268 lm

21.1 W - 1287 / 1329 / 1372 lm

22.7 W - 1385 / 1430 / 1476 lm

24.3 W - 1482 / 1531 / 1580 lm

27.5 W - 1678 / 1733 / 1788 lm

29.1 W - 1775 / 1833 / 1892 lm

30.7 W - 1873 / 1934 / 1996 lm

32.3 W - 1970 / 2034 / 2100 lm

33.9 W - 2068 / 2136 / 2204 lm

35.5 W - 2166 / 2237 / 2308 lm

37.1 W - 2263 / 2337 / 2411 lm

38.7 W - 2361 / 2438 / 2516 lm

40.3 W - 2458 / 2539 / 2620 lm

41.9 W - 2556 / 2640 / 2724 lm

43.5 W - 2654 / 2741 / 2828 lm

45.1 W - 2751 / 2841 / 2932 lm

46.7 W - 2849 / 2942 / 3036 lm

Beam Angle - 40°

6.7W - 302 / 315 / 328 lm

8.3W - 374 / 390 / 407 lm

9.9W - 446 / 465 / 485 lm

11.5W - 518 / 541 / 564 lm

13.1W - 590 / 616 / 642 lm

14.7 W - 662 / 691 / 720 lm

16.3 W - 747 / 780 / 813 lm

17.9 W - 806 / 841 / 877 lm

19.5 W - 878 / 917 / 956 lm

21.1 W - 950 / 992 / 1034 lm

22.7 W - 1022 / 1067 / 1112 lm

24.3 W - 1094 / 1142 / 1191 lm

27.5 W - 1238 / 1293 / 1348 lm

29.1 W - 1310 / 1368 / 1426 lm

30.7 W - 1382 / 1443 / 1504 lm

32.3 W - 1454 / 1518 / 1583 lm

33.9 W - 1526 / 1593 / 1661 lm

35.5 W - 1598 / 1669 / 1740 lm

37.1 W - 1670 / 1744 / 1818 lm

38.7 W - 1742 / 1819 / 1896 lm

40.3 W - 1814 / 1894 / 1975 lm

41.9 W - 1886 / 1969 / 2053 lm

43.5 W - 1958 / 2045 / 2132 lm

45.1 W - 2030 / 2120 / 2210 lm

46.7 W - 2102 / 2195 / 2288 lm

Efficacy12° - 61 / 63 / 65 lm/w
40° - 45 / 47 / 49 lm/w
Beam Angle12° /  40°
Input Voltage24V DC
Driving SystemConstant Voltage
Dimming TypeON / OFF
CRI80+
MacAdam<3
Operating Temperature-10 to 50°C
LED LifeL70 at 50000 burning Hours
Safety ClassClass II
System Warranty1 Year
