Description

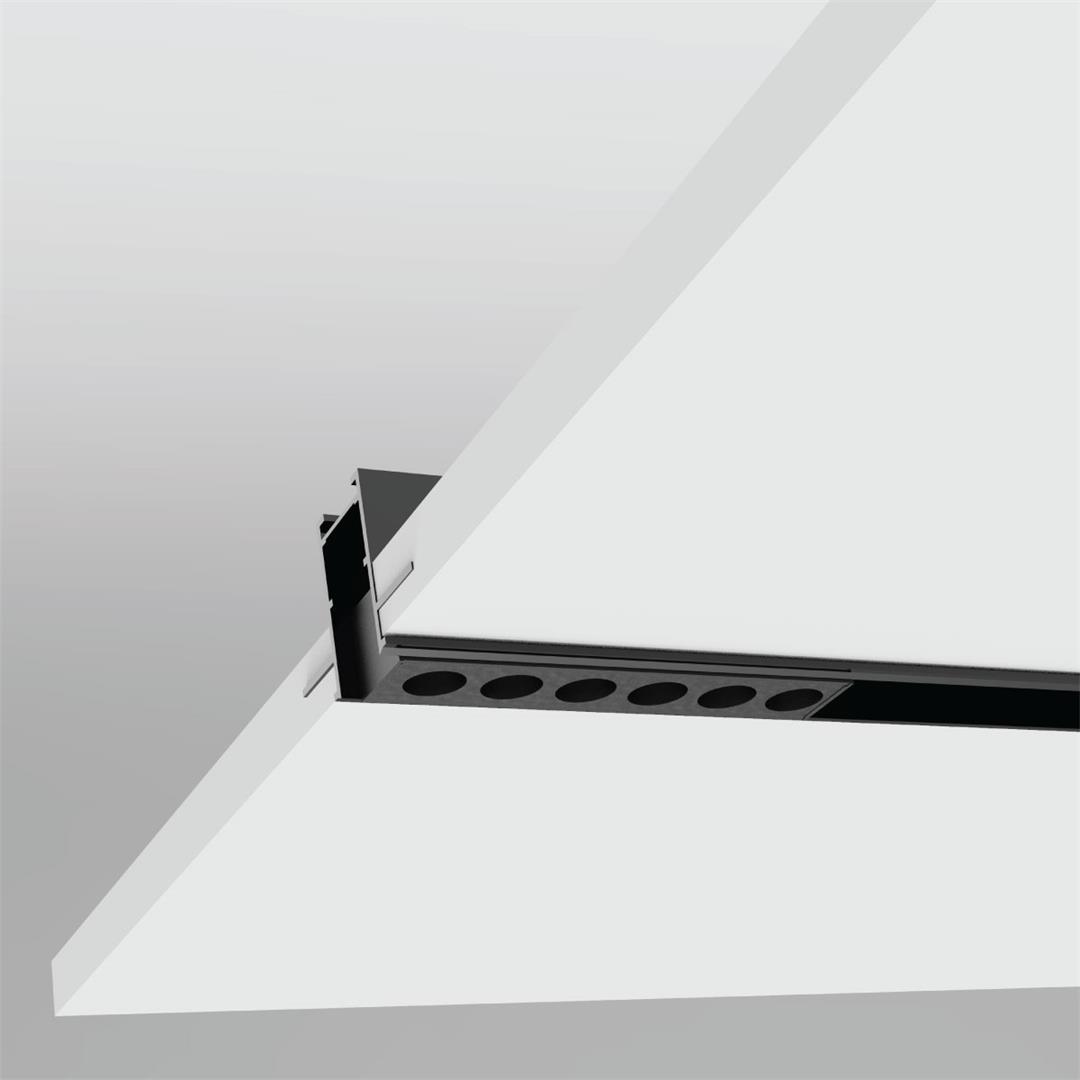

Magnetic Linear Movable Light
Die Cast Aluminum Housing
Pre - treated Powder Coating for corrosion resistance
SS304 Grade External & Internal Fasteners used for corrosion resistance
Spring plungers used for easy locking & Unlocking on Track
350° Rotational + 90° Tiltable
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | Black |
| Size | 6W: L-120X W-25X H-44
12W: L-234X W-25X H-44 |
|---|
Lens
| Polycarbonate Lens
|
|---|
| Fasteners | SS 304 grade fastener |
|---|
Reflector
| PC Anti Glare Reflector
|
|---|
| Weight | 6W: 0.08 Kg
12W: 0.11 Kg
|
|---|
Technical Details
| Light Source | LED |
| Input Power | 6W/ 12W |
| Color Temperature | 2700K/3000K / 4000K / 6000K / Dual CCT 2700-6000K
|
| Lumen | 6W: 312/325/338/352 LM
12W: 626/652/678/705 LM |
| Efficacy | 52/54/56/58 LM/W |
| Beam Angle | 32° |
| Input Voltage | 48VDC
|
| Driving System | Constant Voltage
|
| Dimming Type | R.F Dimming / DALI Dimming
|
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| System Warranty | 1 Year |
|---|
Instagram Reel

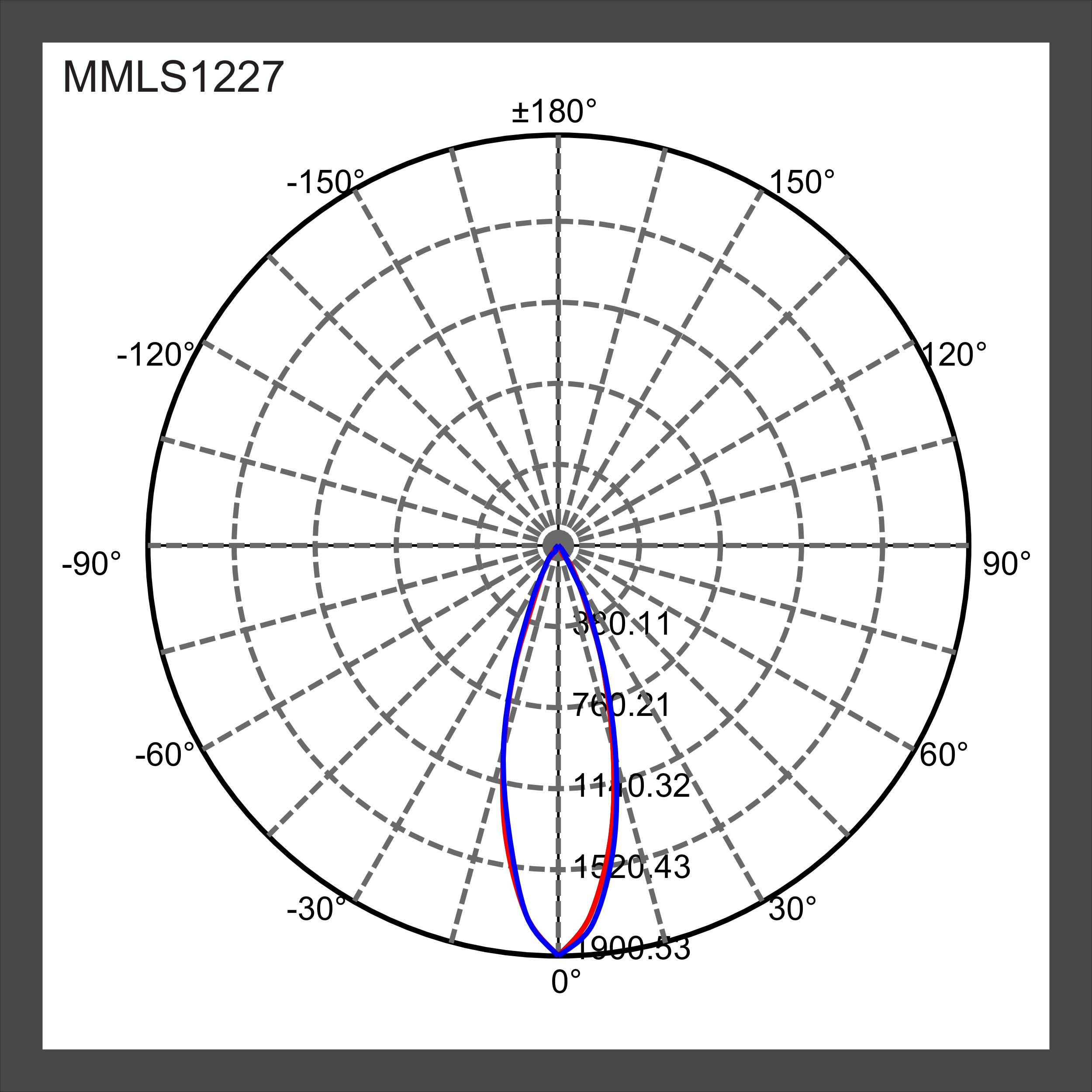

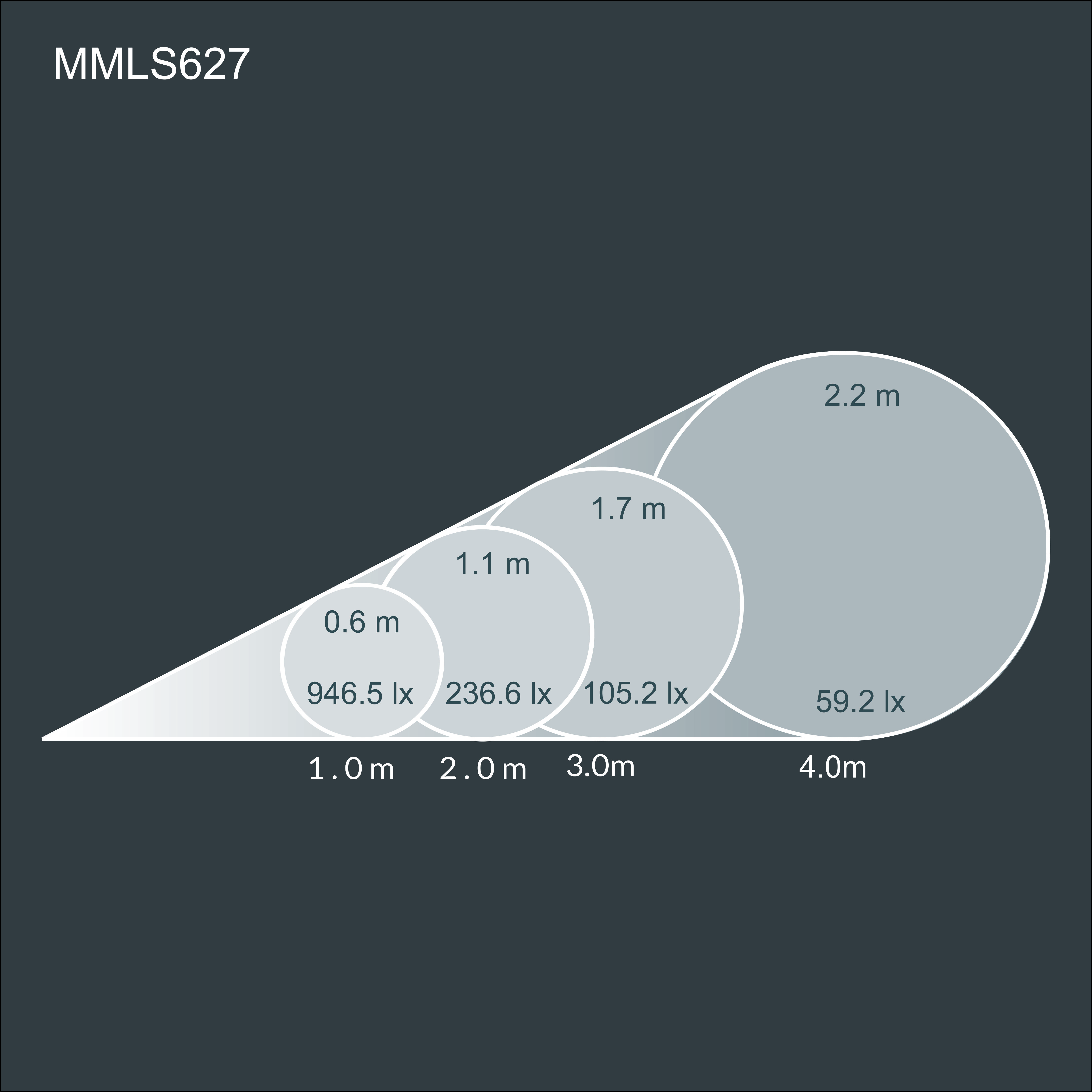

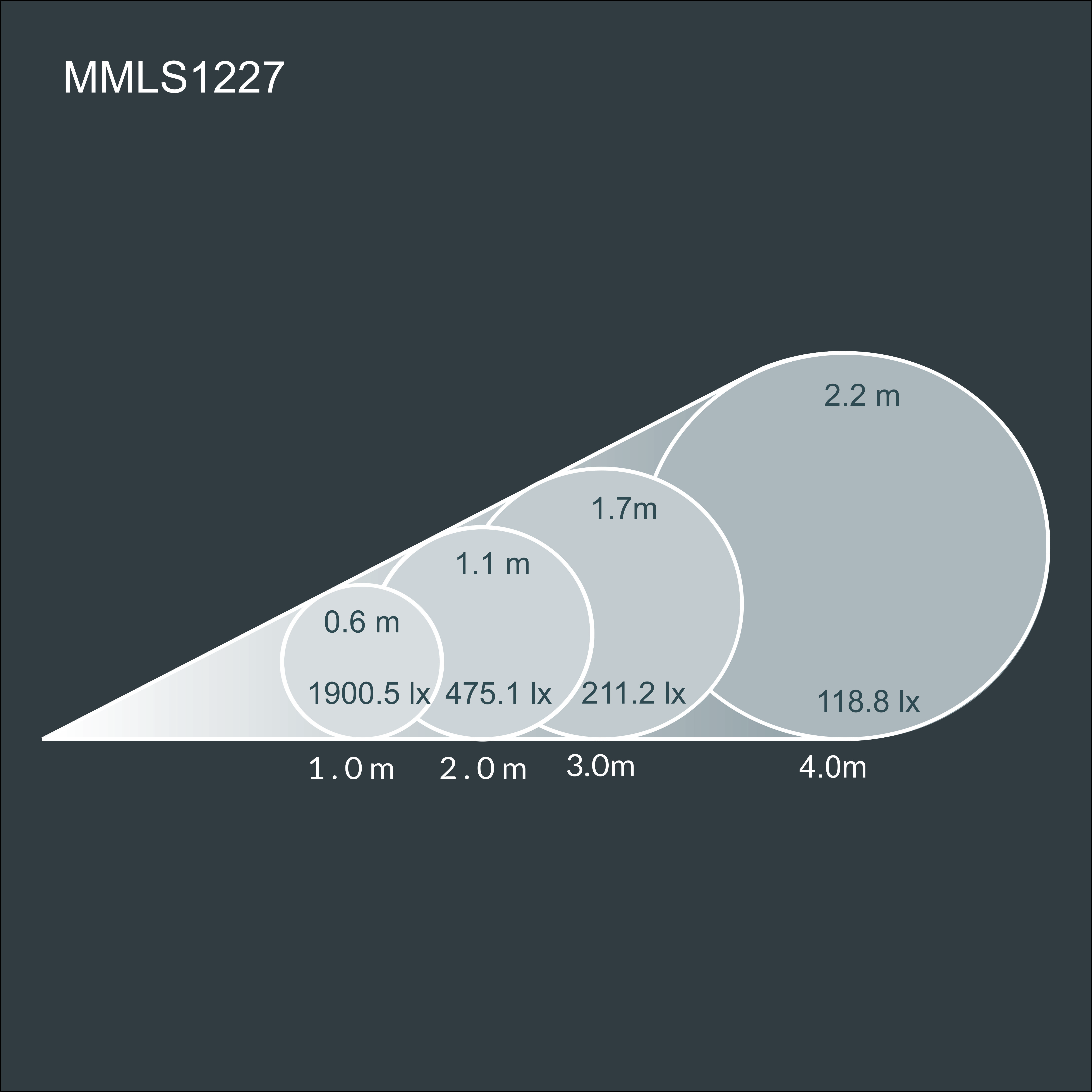

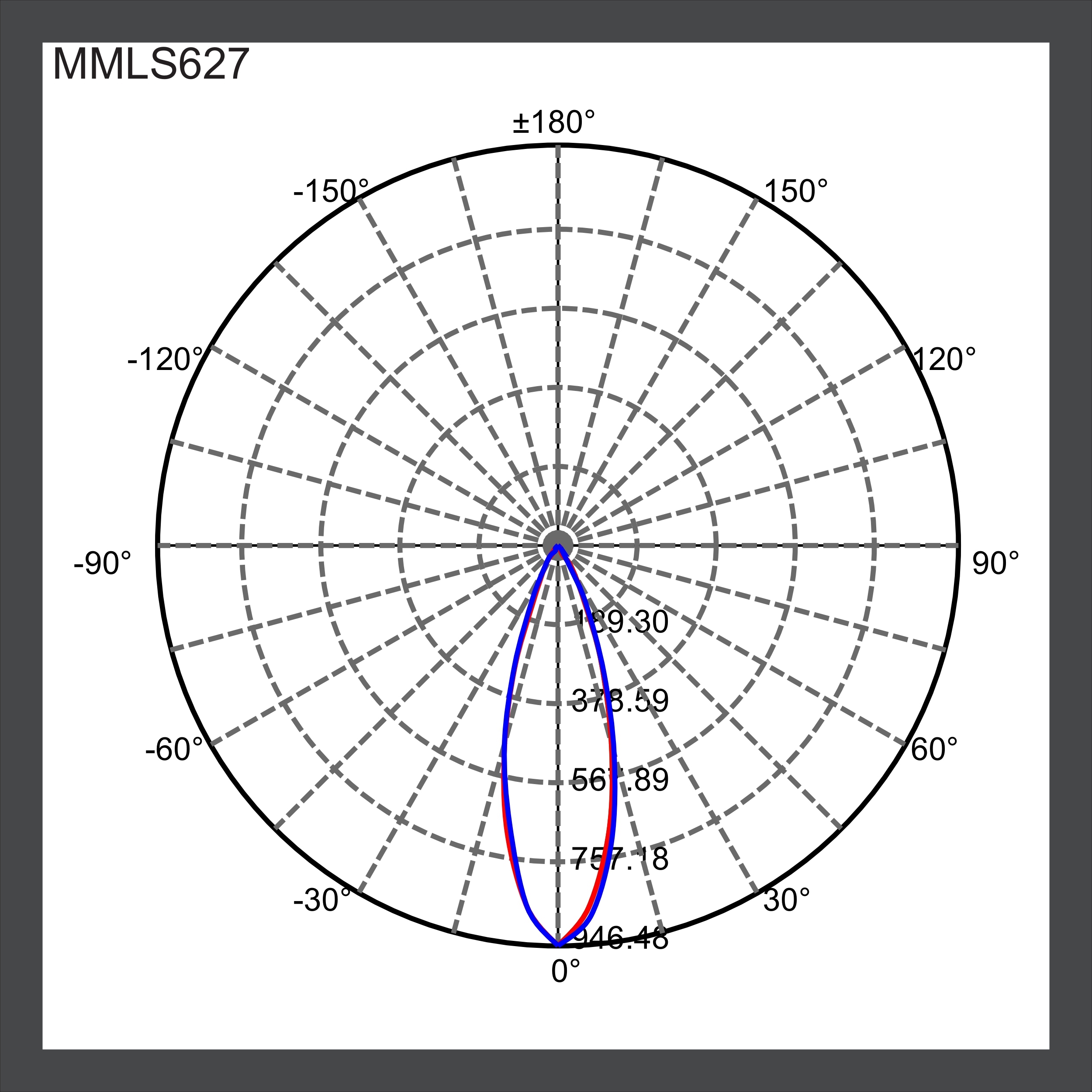

Beam Angle: 32°
6W-2700K
12W-2700K
Downloads
6W-2700K
12W-2700K
6W-2700K
12W-2700K
| Model | Watt | Driving System | Beam Angle | Color Temp | Data Sheet - PDF | Luminaire Data - IES |
MMLS06B27 | 06 Watt | RF - B | 32° | 2700K
| PDF | IES |
MMLS06B30 | 06 Watt | RF - B
| 32°
| 3000K | PDF | IES |
MMLS06B40
| 06 Watt | RF - B
| 32°
| 4000K
|
|
|
MMLS06B60
| 06 Watt | RF - B
| 32°
| 6000K
|
|
|
MMLS06B26
| 06 Watt | RF - B
| 32°
| 2700-6000K
|
|
|
MMLS06I27
| 06 Watt | DALI DIMING - I
| 32°
| 2700K
|
|
|
MMLS06I30
| 06 Watt | DALI DIMING - I
| 32°
| 3000K
|
|
|
MMLS06I40
| 06 Watt | DALI DIMING - I
| 32°
| 4000K
|
|
|
MMLS06I60
| 06 Watt | DALI DIMING - I
| 32°
| 6000K
|
|
|
MMLS06I26
| 06 Watt | DALI DIMING - I
| 32°
| 2700-6000K
|
|
|
MMLS12B27
| 12 Watt | RF - B
| 32°
| 2700K
|
|
|
MMLS12B30
| 12 Watt | RF - B
| 32°
| 3000K
|
|
|
MMLS12B40
| 12 Watt | RF - B
| 32°
| 4000K |
|
|
MMLS12B60
| 12 Watt | RF - B
| 32°
| 6000K |
|
|
MMLS12B26
| 12 Watt | RF - B
| 32°
| 2700-6000K
|
|
|
MMLS12I27
| 12 Watt | DALI DIMING - I
| 32°
| 2700K
|
|
|
MMLS12I30
| 12 Watt | DALI DIMING - I
| 32°
| 3000K
|
|
|
MMLS12I40
| 12 Watt | DALI DIMING - I
| 32°
| 4000K
|
|
|
MMLS12I60
| 12 Watt | DALI DIMING - I
| 32°
| 6000K |
|
|
MMLS12I26
| 12 Watt | DALI DIMING - I
| 32°
| 2700-6000K
|
|
|
Downloads
PDF
IES
3D
