Description
Magnetic Track Spot Light
Die Cast Aluminum Housing
Extruded Aluminum Heatsink for Heat Dissipation
Pre-treated Powder Coating for corrosion resistance
SS304 Grade External & Internal Fasteners used for corrosion resistance
Spring plungers used for easy locking & Unlocking on Track
350° Rotational + 90° Tiltable
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | Black |

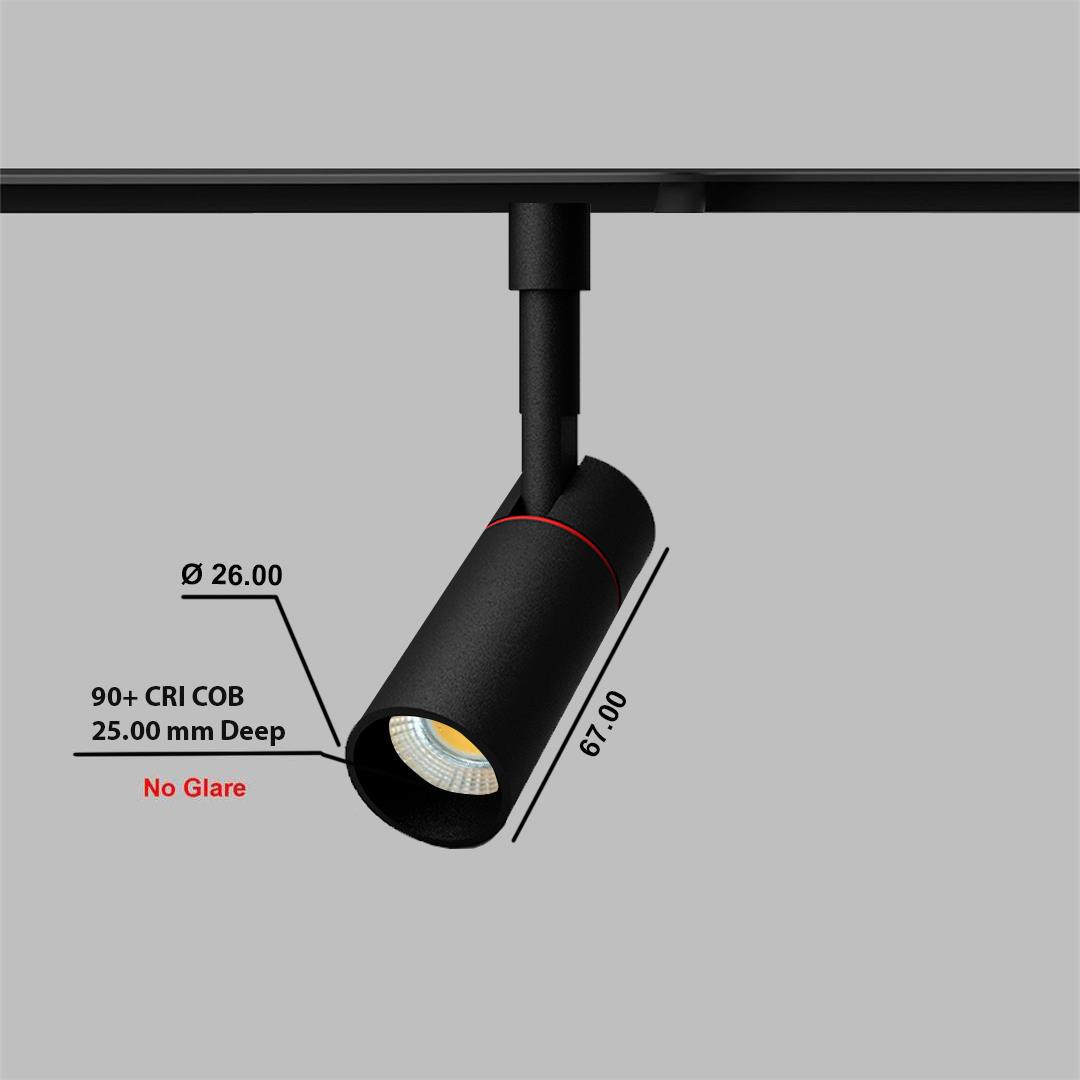

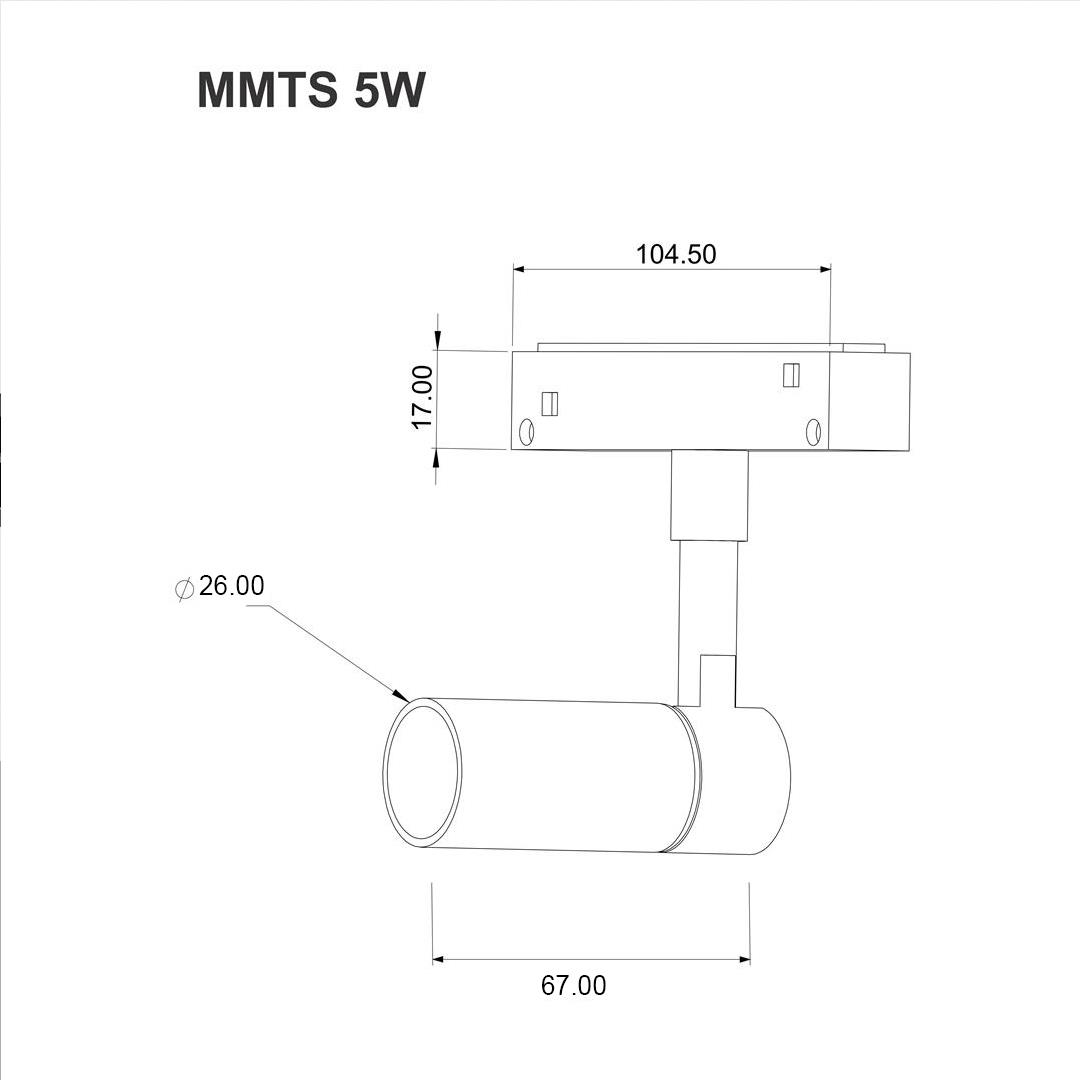

| Size | Ø 26X H-67mm |
|---|
| Glass | Clear Polycarbonate glass |
|---|
| Gasket | Silicone O Ring
|
| Fasteners | SS 304 grade fastener |
|---|
Rotation and Tilt
| 350° Rotational + 90° Tiltable
|
|---|
Reflector
| Optical Grade PC with UV Coated Reflector
|
|---|
| Weight | 0.1Kg |
|---|
Technical Details
| Light Source | COB |
| Input Power | 5W |
| Color Temperature | 2700K/3000K / 4000K / 5000 / Dual CCT 2700-5000K
|
| Lumen | 168/175/177/188 LM
|
| Efficacy | 34/35/36/37 LM/W |
| Beam Angle | 45° |
| Input Voltage | 48VDC
|
| Driving System | Constant Voltage
|
| Dimming Type | R.F Dimming / DALI Dimming
|
|---|
| CRI | 90+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| System Warranty | 1 Year |
|---|
Instagram Reel
Instagram Reel

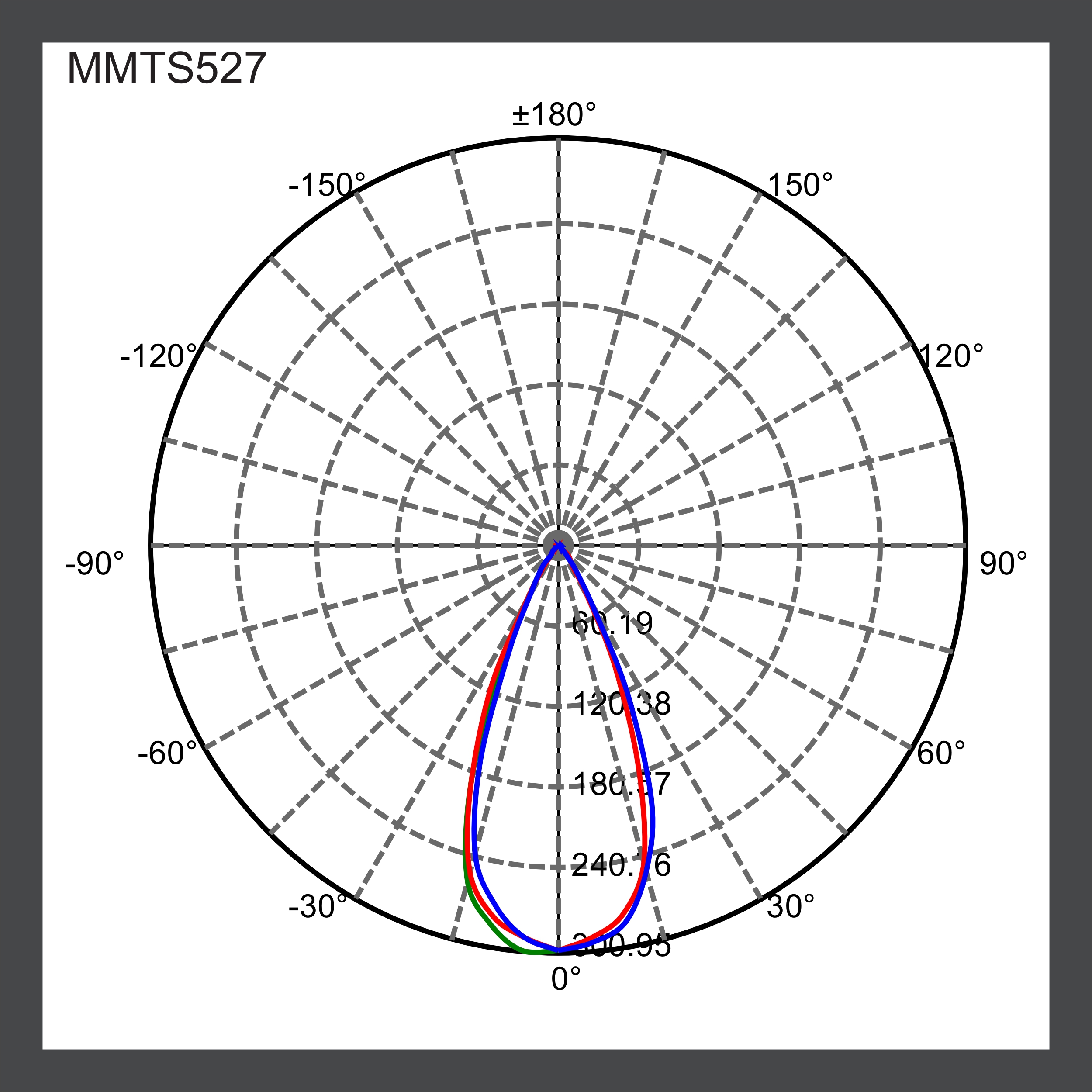

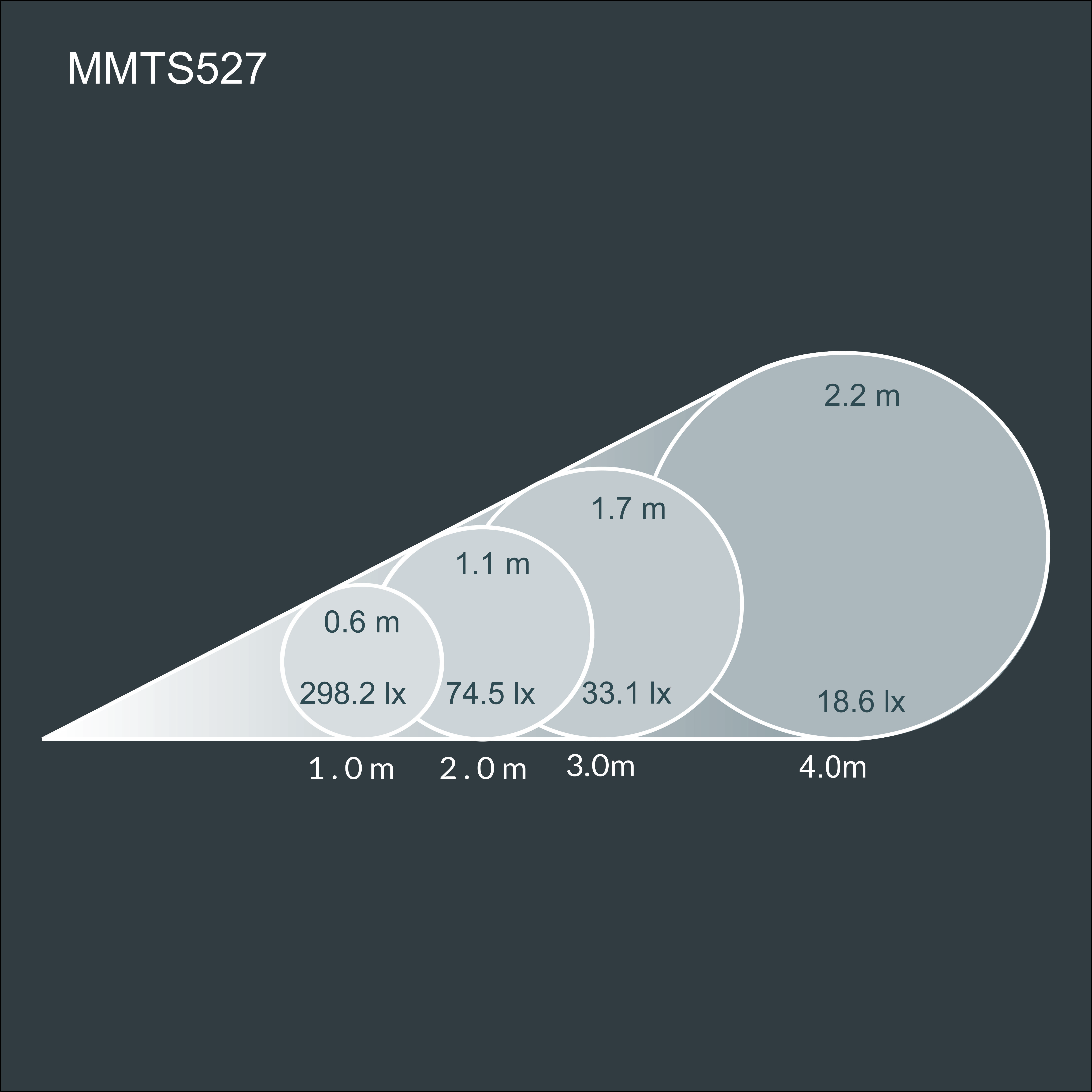

Beam Angle- 45°
5W- 2700K
Downloads
5W- 2700K
5W- 2700K
| Model | Watt | Driving System | Beam Angle | Color Temp | Data Sheet - PDF | Luminaire Data - IES |
MMTS05B27 | 05 Watt | RF - B | 45° | 2700K
| PDF | IES |
MMTS05B30 | 05 Watt | RF - B
| 45°
| 3000K | PDF | IES |
MMTS05B40
| 05 Watt | RF - B
| 45°
| 4000K
|
|
|
MMTS05B50
| 05 Watt | RF - B
| 45°
| 5000K
|
|
|
MMTS05B25
| 05 Watt | RF - B
| 45°
| 2700-5000K
|
|
|
MMTS05I27
| 05 Watt | DALI DIMING - I
| 45°
| 2700K
|
|
|
MMTS05I30
| 05 Watt | DALI DIMING - I
| 45°
| 3000K
|
|
|
MMTS05I40
| 05 Watt | DALI DIMING - I
| 45°
| 4000K
|
|
|
MMTS05I50
| 05 Watt | DALI DIMING - I
| 45°
| 5000K
|
|
|
MMTS05I25
| 05 Watt | DALI DIMING - I
| 45°
| 2700-5000K
|
|
|
