Louvers + Linear Spot

Louvers + Linear Spot

Linear Diffused Beam Angle - 112°

Linear Spot Beam Angle - 15°
10,120
Product Code : LULS
Availability:
Profile Color
Linear Diffused Color Temp.
Linear Spot Color Temp.
Driving System
Select Qty:
Add to Wish List

* Shipping charges additional to be paid at the time of receiving delivery. To know more chat with us.

Description

Profile
ModelH3550 Profile - Linear Diffused Track Spot
MountingSuspended, Surface
MaterialAluminum
IP RateIP20
MacAdam ellipseinitial ≤ 3 MacAdam
Driving System
RF, RF + Dual Color
System Warranty
1 Year

Linear Diffused

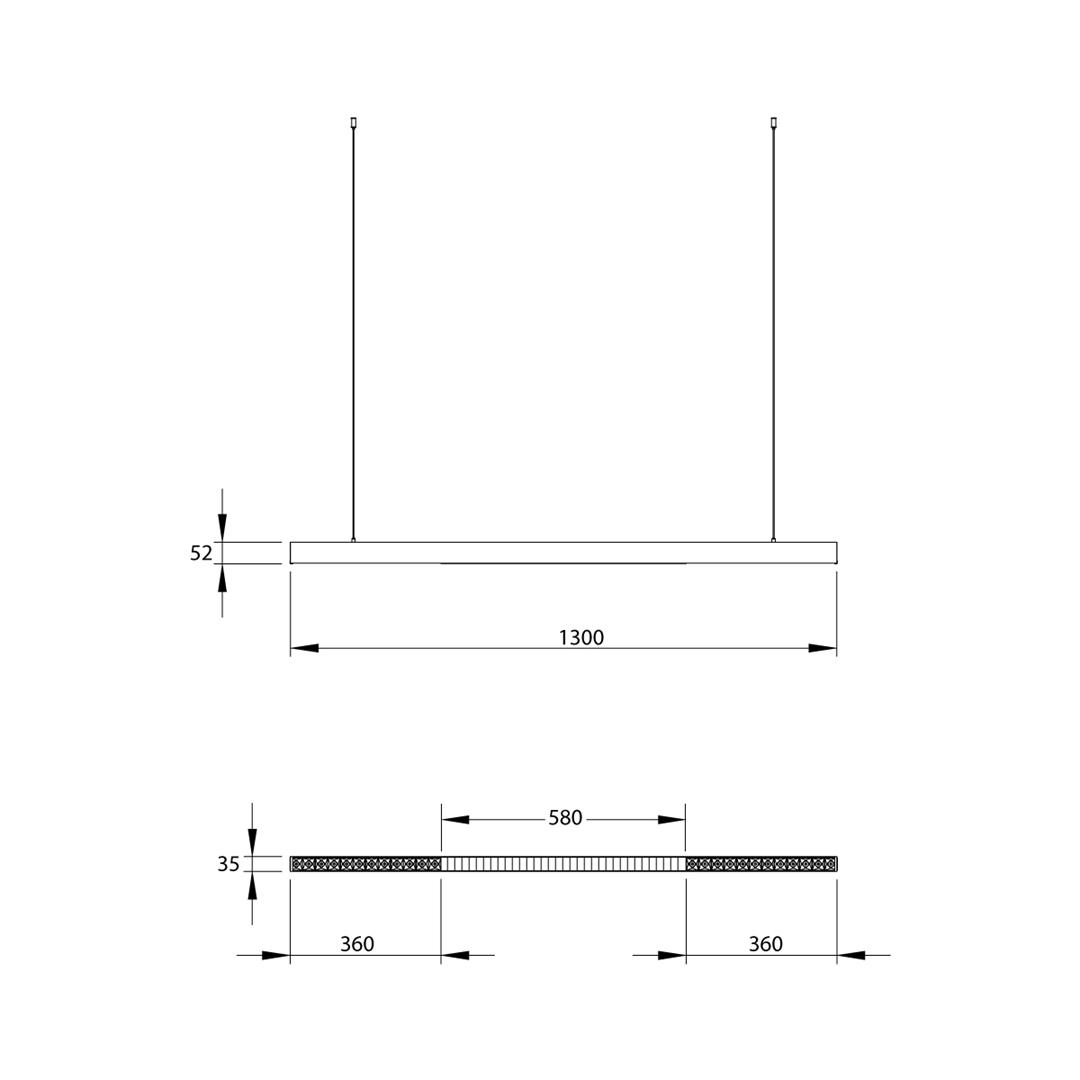

Louvers SizeL580mm X W35mm
Input Power
20 Watt
Beam Angle
112°
Typ. Color Temp
 2700K / 3000K / 4000K / 6000K / 2700K-5000K (Dual Color)
Lumen
908 / 946 / 985 / 1024 lm
IP RateIP20
CRI
80
System Warranty
1 Year


Linear Spot
Input Power
12 + 12 Watt
Beam Angle
15°
Typ. Color Temp
 2700K / 3000K / 4000K / 6000K / 2700K-5000K (Dual Color)
Lumen
2097 / 2184 / 2181 / 2268 lm
IP RateIP20
CRI
80
System Warranty
1 Year



Downloads

 PDF           DWG


 3D             IES             LDT
