Description
Die-cast Aluminum Housing
PMMA lens
Polycarbonate Reflector
Stainless steel fasteners
Corrosion Resistant Aluminum heatsink
Anti-glare Steel honeycomb mesh
External Driver
Protection: IP20
Technical Details
| Light Source | COB |
| Input Power | 10 W
|
| Fixture Color | White, Black
|
| Input Voltage | 220-240VAC
|
| Beam Angle | 22°
|
| Color Temperature | 6000K / 5000K / 4000K / 3000K / 2700K |
CRI
| 90+
|
|---|
| Driving System | Constant Current / R.F. / DALI |
|---|
| Operating Temperature | -10 to 50°C
|
|---|
System Warranty
| 1 Year |
Medium Beam 22°

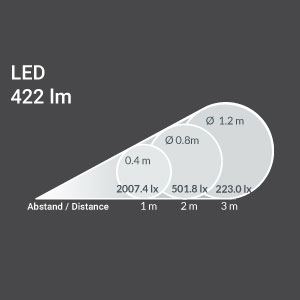

Luminous Flux-2700K

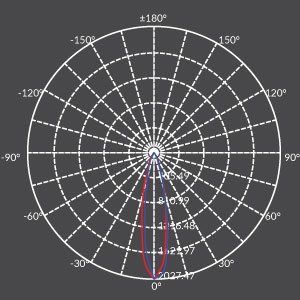

Light Distribution-2700K

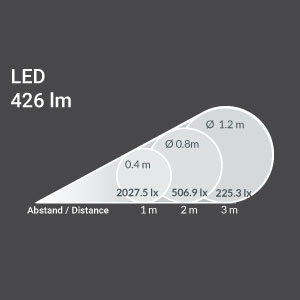

Luminous Flux-3000K

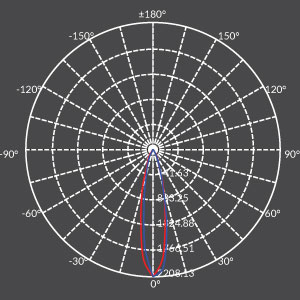

Light Distribution-3000K

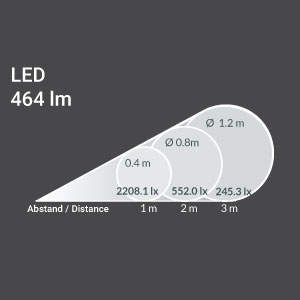

Luminous Flux-4000K

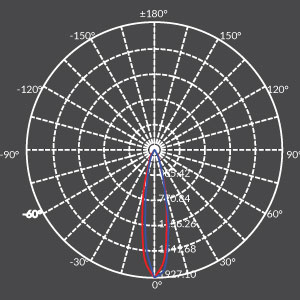

Light Distribution-4000K
Luminous Flux-5000K

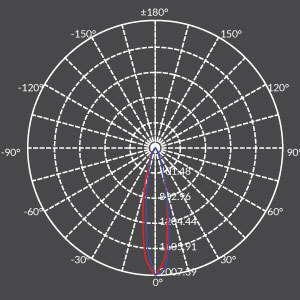

Light Distribution-5000K
Luminous Flux-6000K
Light Distribution-6000K
| Model | Color | Watt | Beam Angle | Color Temp | Data Sheet - PDF | Luminaire Data - IES |
| SRC | White - R/ Black- B | 10 Watt | Narrow - 22°
| 2700K | PDF | IES |
SRC
| White - R/ Black- B
| 10 Watt
| Narrow - 22°
| 3000K
| PDF
| IES
|
SRC
| White - R/ Black- B
| 10 Watt
| Narrow - 22°
| 4000K | PDF | IES |
SRC
| White - R/ Black- B
| 10 Watt | Narrow - 22°
| 5000K | PDF | IES |
SRC
| White - R/ Black- B
| 10 Watt
| Narrow - 22°
| 6000K | PDF
| IES
|
