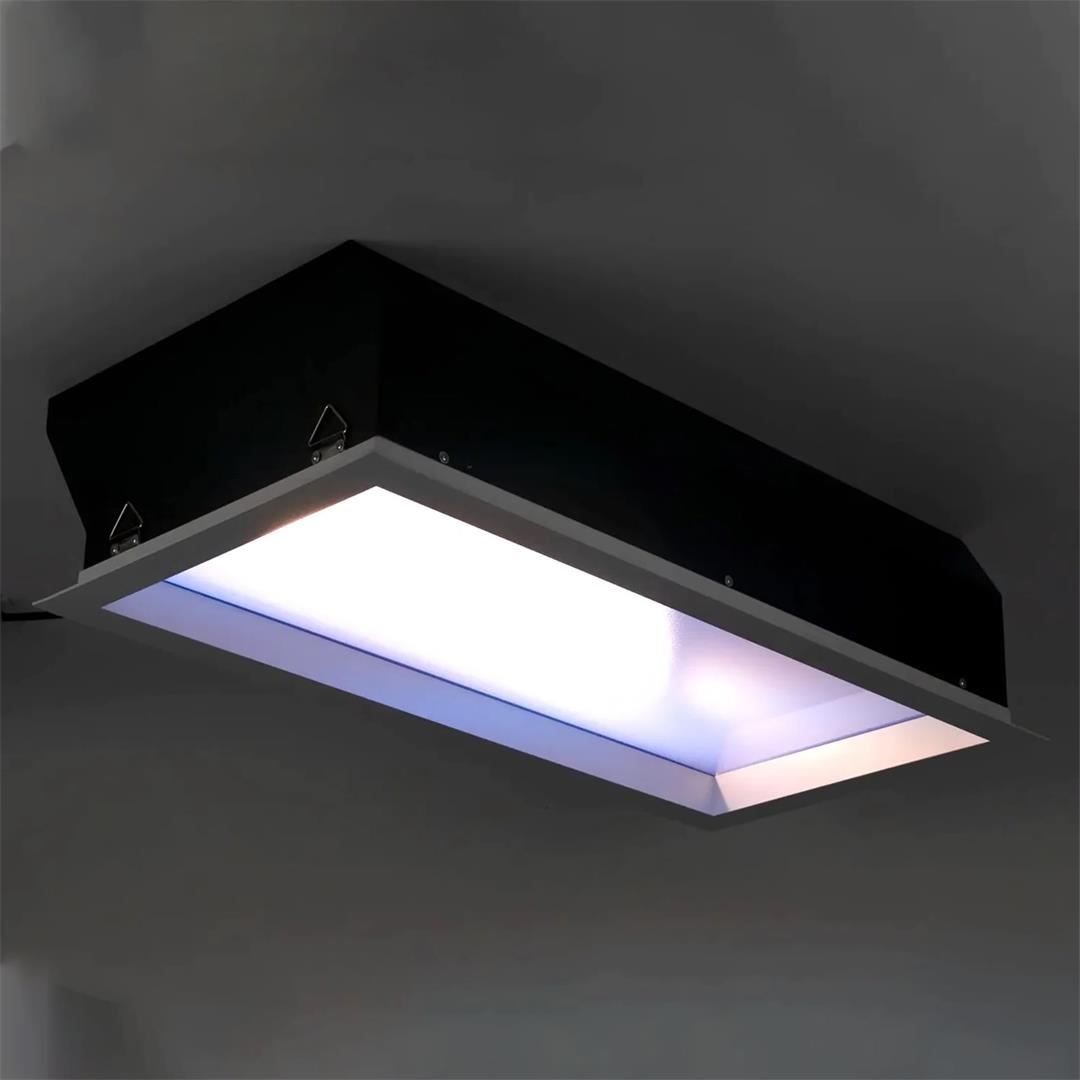

Description
- Black Powder Coated Finish CRCA Housing
- Extruded Aluminium Frame With White Powder Coating
- Extruded Aluminium Heatsink Used
- PMMA Sky Blue Optical Diffuser Used
- Aluminium PCB for Better Heat Dissipation
- High CRI Long Life LEDs Used
- Torsion Spring Provided For Recessing
- Additional Suspension Rope & KEEL Buckle Provided
- Mounting : Recessed Mounting
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | White |
| Size | 1200 X 600 X 230mm
|
|---|
Cutout
| 1180 X 580mm
|
Tilted Angle
| 40°
|
Diffuser
| PMMA Optical Diffuser
|
Cable Entry
| Single Entry
|
Cable Gland
| Nylon Cable Gland
|
| Power Supply | External |
|---|
| IP Rating | IP20 |
|---|
Weight
| 13Kg
|
Technical Details
| Lamp | LED
|
| Input Power | 80W |

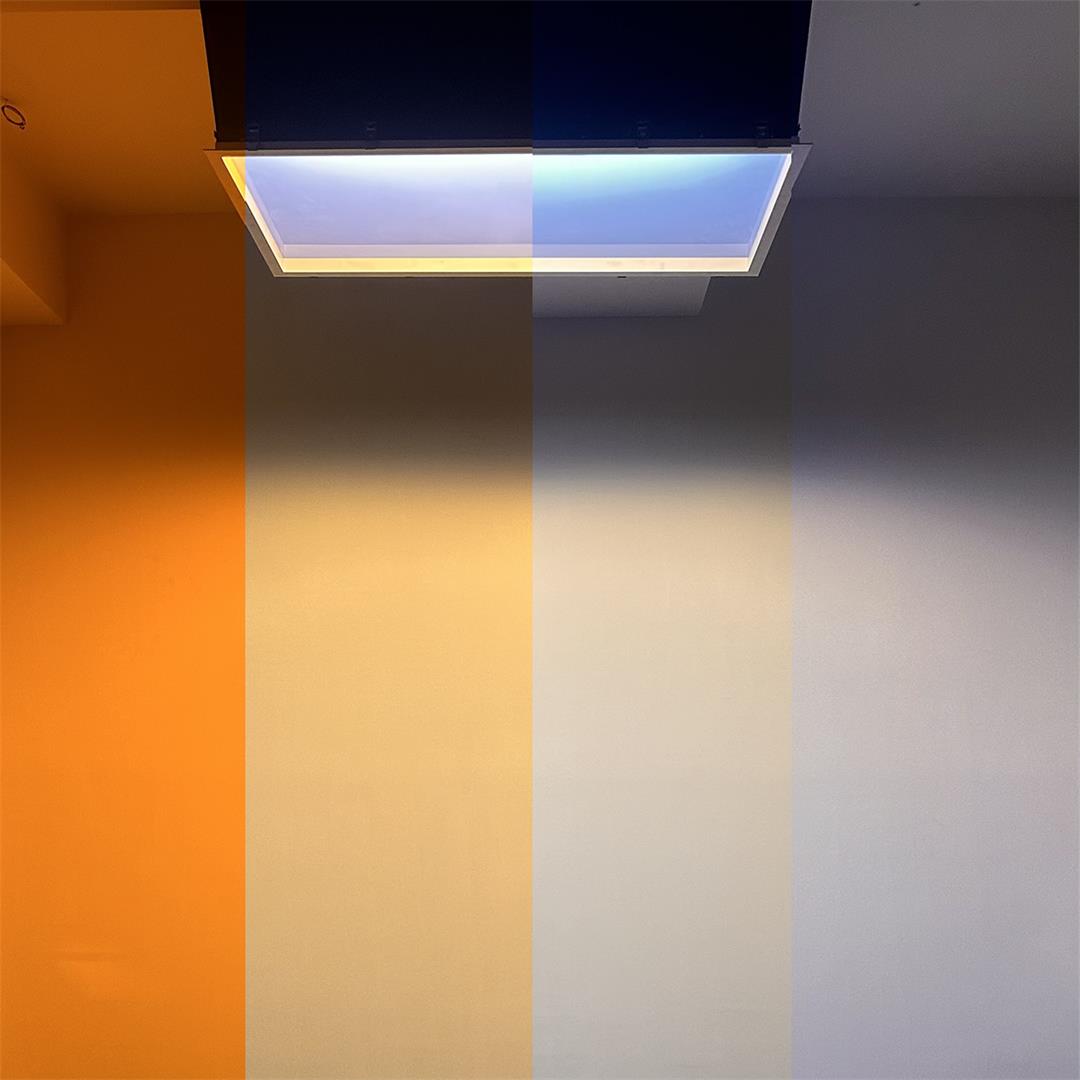

| Color Temperature | 2000 - 6500K (Tunable)
|
| Lumen | 2080-4160 LM
|
| Installation Distance | 1.7mtr From Wall
|

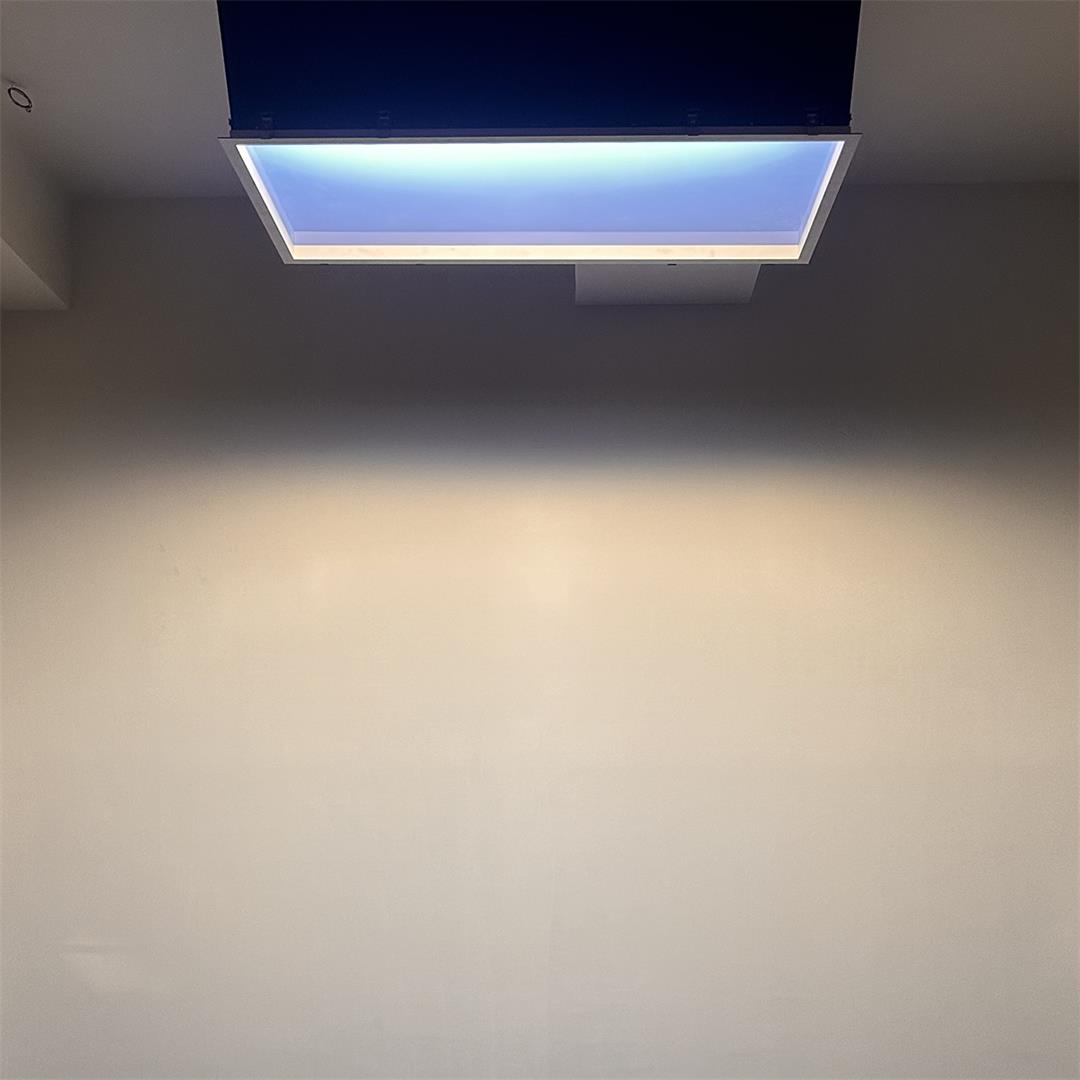

Beam Angle
| 40° Wallwash
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | DALI , WIFI
|
|---|
| CRI | 80+ |
|---|
| MacAdam | >90
|
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class II
|
|---|
| System Warranty | 1 Year |
|---|
Downloads
| Model | Watt | Color | Light source
| Luminous flux
| Beam Angle
| Driving System
|
SKL126080R26I
| 80 Watt | White - R
| 120X0.67W LED (2000-6500K) | 2080-4160 lm
| 40° Wallwash
| Dali Diming - I
|
SKL126080R26W
| 80 Watt | White - R
| 120X0.67W LED (2000-6500K)
| 2080-4160 lm
| 40° Wallwash
| WIFI Diming - W
|
