Description

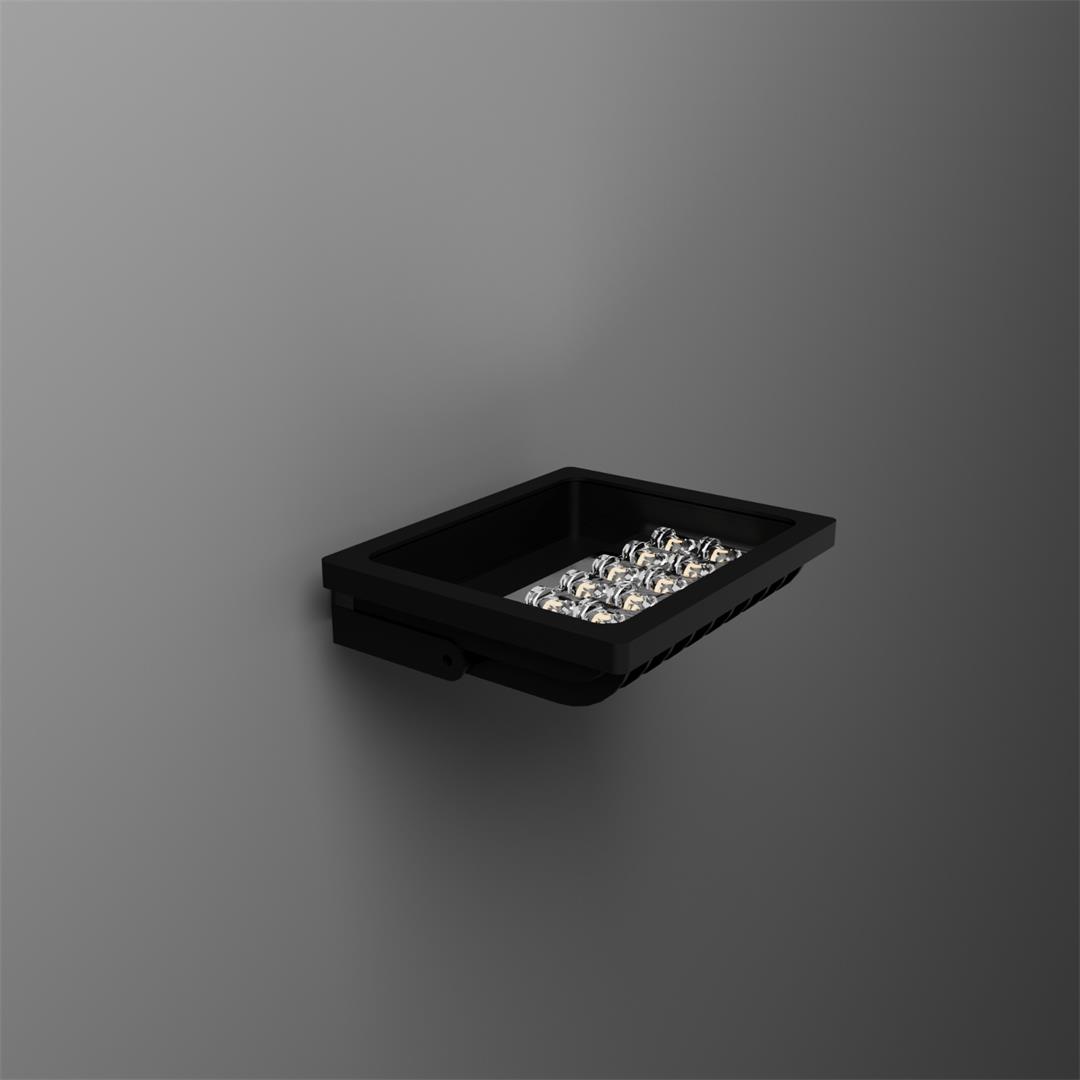

Outdoor Wall Surface Light
Pressure Die Cast Aluminium Housing
Pre-Treated Powder Coating For Corrosion Resistance
Clear Toughend Glass Used
Aluminium Chrome Assymetric Reflector Used
Silicone Gasket Used for Water resistance
SS304 Grade External & Internal Fasteners used for corrosion resistance
MCPCB Used for Better Heat Dissipation
High Lumen Leds Used
Built In IP68 Potted Power Supply Used
Protection : IP65
Mounting : Wall mounting
USP
*Square Shaped Housing For Distinct Wall Mount Look.
*Précised Single Reflector Used For Ceiling Lighting.
*Earthing safe for shock proof connection.
*Easy Installation On Wall Surface with Bracket.
Mechanical Details
| Mounting | Outdoor |
| Housing Material | Aluminum |
|---|
| Finish | Graphite Grey
|

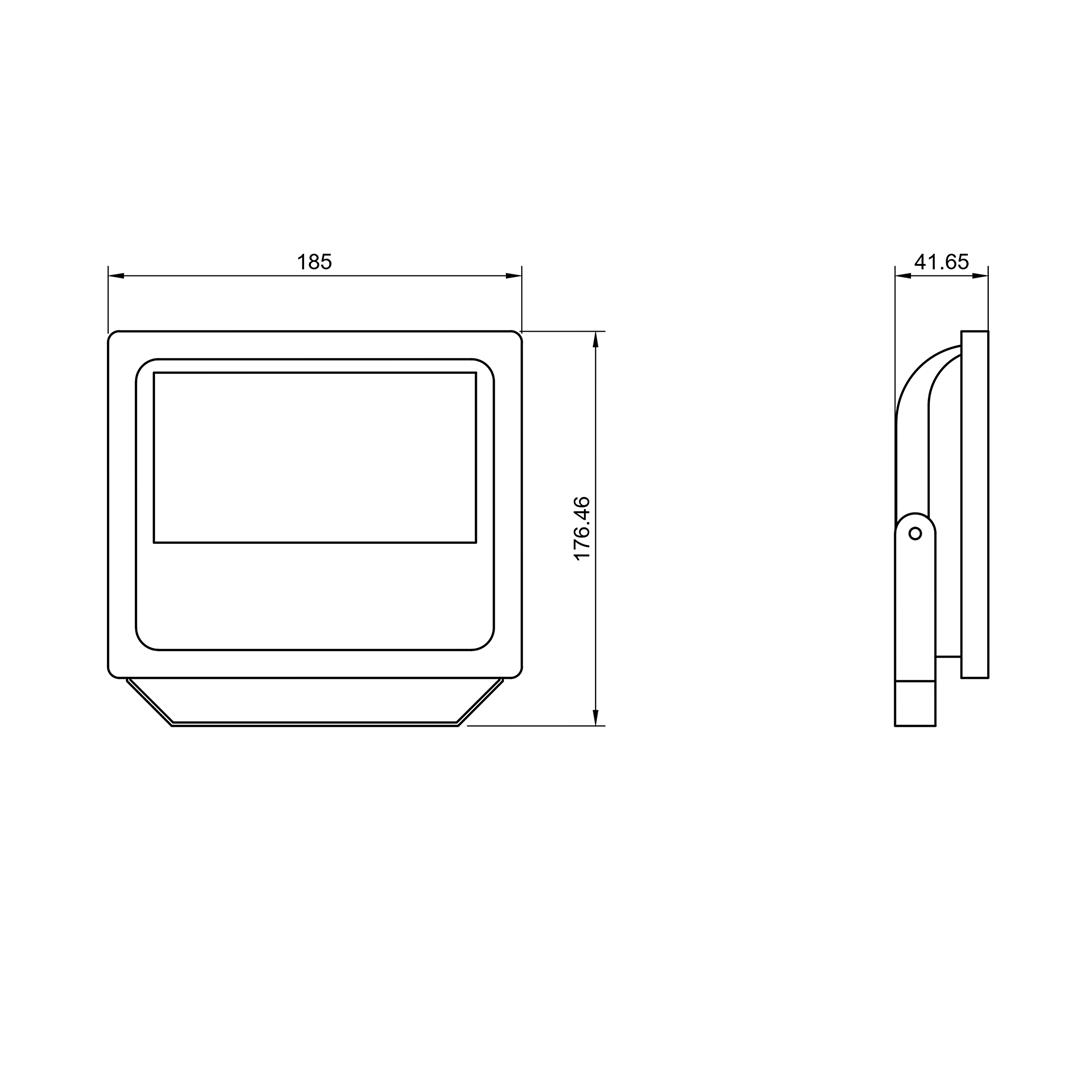

| Size | L - 200mm W - 220mm H - 34mm (Overall Length - 224mm)
|
|---|
Gasket
| Silicone Gasket Used
|
|---|
Reflector
| Aluminium Chrome Asymetric Reflector Used
|
Tilt
| 80°
|
Cable
| na
|
|---|
Cable Entry
| Single Entry
|
|---|
Power Supply
| Built - In IP68 Potted
|
|---|
IP Rating
| IP65
|
| Weight | 2.0Kg
|
|---|
Technical Details
| Light Source | LED
|
| Input Power | 30W
|
| Color Temperature | 3000 / 4000K |
| Lumen | 1728 / 1800 LM
|
| Efficacy | 72 / 75 LM/W
|
| Beam Angle | H-97°X V-63°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+
|
|---|
| McAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
