Description
Lamp :
- Die Cast Aluminium Housing With Heatsink within
- Optical grade PMMA Lens used
- Pre - treated Powder Coating for corrosion resistance
- Clear Toughened Glass Used
- Silicone Rubber Gasket Used For Water Resistance
- SS304 Grade External & Internal Fasteners used for corrosion resistance
- Built - In IP68 Potted Control Gear Used
- High Power LEDs Used for long life & good Thermal management
- Swivel Joint for 350° Rotational + 180° Tiltable
- With Pole Holder with Lamp For easy installation on Pole
- Protection : IP65
Pole:
- Pole made of Galvanized Steel
- High strength and corrosion resistance in various atmospheric conditions
- All the joints in the body of the pole are welded by using the v groove technique
- Pole used for integration of various LED modules
- The coating process makes the pole excellent corrosion resistant.
- Quick installation and low assembly costs.
- Functionally versatile, strong, and stable.
- Long life span with very low maintenance.
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | Graphite Grey
|

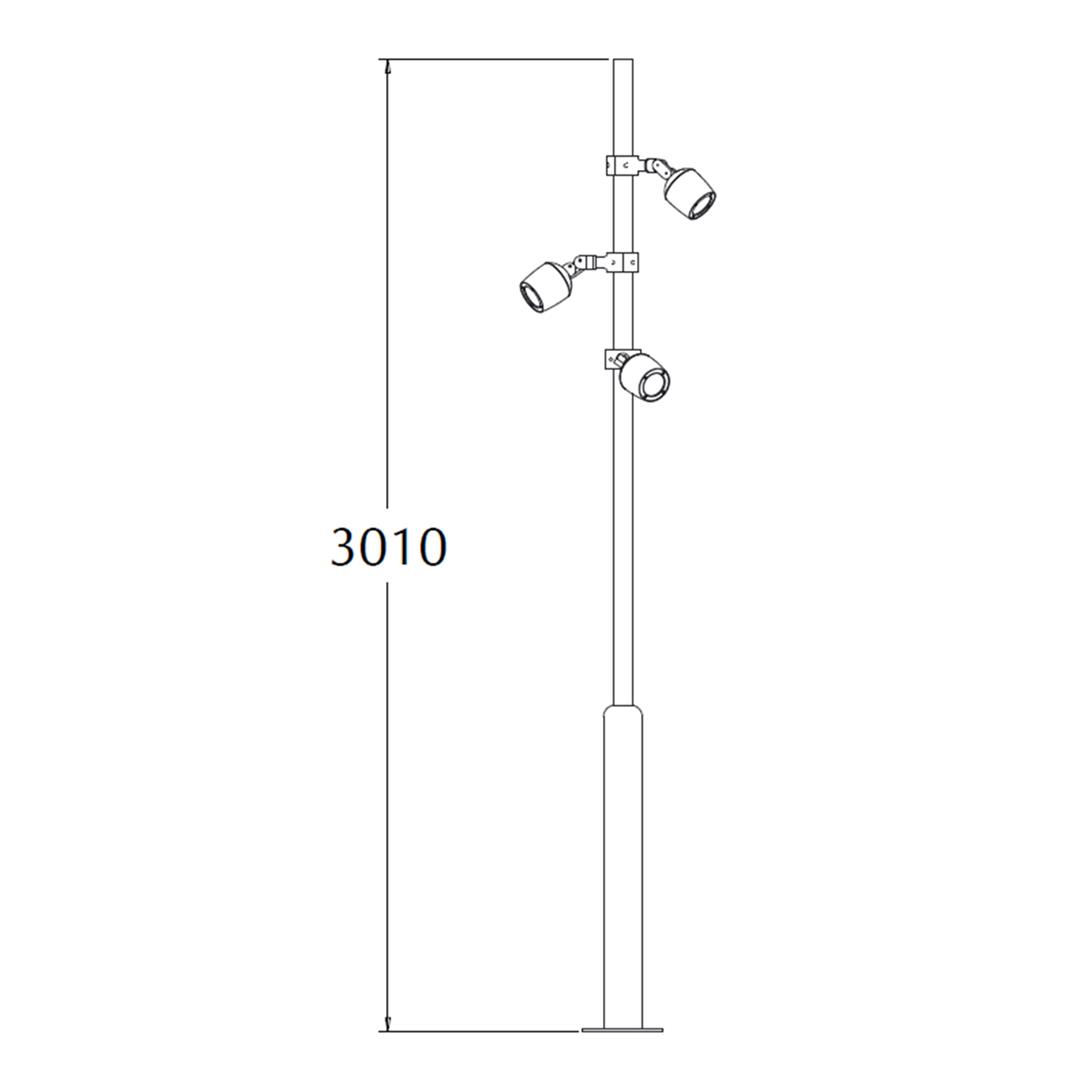

| Size | Lamp : 36W - Ø110X300mm 60W - Ø200X300mm Pole : ø114.3X3200mm |
|---|
Swivel
| Swivel For Directional Lighting
|
|---|
Rotation & Tilt
| 350° Rotational + 180° Tiltable
|
LENs
| Optical grade PMMA Lens
|
|---|
Glass
| Clear Toughened Glass
|
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
Cable Entry
| Single Cable Entry
|
|---|
Cable Gland
| SS Cable Gland
|
Power Supply
| Built - IN IP68 potted power supply Used
|
IP Rating
| IP65
|
Technical Details
| Light Source | LED |
| Input Power | 3X36W 3X60W |
| Color Temperature | 3000 / 4000K |
| Lumen | 36W 3X(34° - 3132 / 3240 LM) 3X(48° - 2988 / 3096 LM) 3X(58° - 2736 / 2844 LM) 60W 3X(34° - 6264 / 6480 LM) 3X(48° - 5976 / 6192 LM) 3X(58° - 5472 / 5988 LM) |
| Efficacy | 3X(34° - 87/ 90 LM/W) 3X(48° - 83/86 LM/W) 3X(58° - 76/79 LM/W) |
| Beam Angle | 34° / 48° / 58°
|
| Input Voltage | 220-240 VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
| Model | Watt | Light Qty On A pole
| CCT
| Luminous flux
| Beam angle
|
PW3PM3X3630MGG
| 3X36W | 3 nos
| 3000K
| 3X3132 lm
| Medium - 34°
|
PW3PM3X3640MGG
| 3X36W | 3 nos
| 4000K
| 3X3240 lm
| Medium - 34°
|
PW3PM3X3630WGG
| 3X36W
| 3 nos
| 3000K
| 3X2988 lm
| Wide - 48°
|
PW3PM3X3640WGG
| 3X36W
| 3 nos
| 4000K
| 3X3096 lm
| Wide - 48°
|
PW3PM3X3630FGG
| 3X36W
| 3 nos
| 3000K
| 3X2736 lm
| Flood - 58°
|
PW3PM3X3640FGG
| 3X36W
| 3 nos
| 4000K
| 3X2844 lm
| Flood - 58°
|
PW3PM3X6030MGG
| 3X60W
| 3 nos
| 3000K
| 3X6264 lm
| Medium - 34°
|
PW3PM3X6040MGG
| 3X60W
| 3 nos
| 4000K
| 3X6480 lm
| Medium - 34°
|
PW3PM3X6030WGG
| 3X60W
| 3 nos
| 3000K
| 3X5976 lm
| Wide - 48°
|
PW3PM3X6040WGG
| 3X60W
| 3 nos
| 4000K
| 3X6192 lm
| Wide - 48°
|
PW3PM3X6030FGG
| 3X60W
| 3 nos
| 3000K
| 3X5472 lm
| Flood - 58°
|
PW3PM3X6040FGG
| 3X60W
| 3 nos
| 4000K
| 3X5988 lm
| Flood - 58°
|
