Description
- Pressure Die Cast Aluminum Housing with heatsink
- Pressure Die Cast Aluminum Frame Used
- Pre-Treated Powder Coating For Corrosion Resistance
- Optical Grade PC LENs Used
- Toughened Glass Used
- Silicone Rubber Gasket Used for water resistance
- Separate Compartment For Driver
- IP68 Potted power supply used
- High Lumen & High Power LEDs used
- Mounting: Mounting Bracket (180° Tiltable )
USP:-
*Earthing Safe Shockproof Application
*Separate Driver Compartment For Easy Servicing
*Easy Surface Bracket Mount On Pole & Ground As per application
*Hood Provided Frame For Glare reduction
*180° Tiltable For Directioning
Mechanical Details
Material
| Aluminum
|
Finish
| Black / White / Graphite Grey / Dark Green
|
|---|

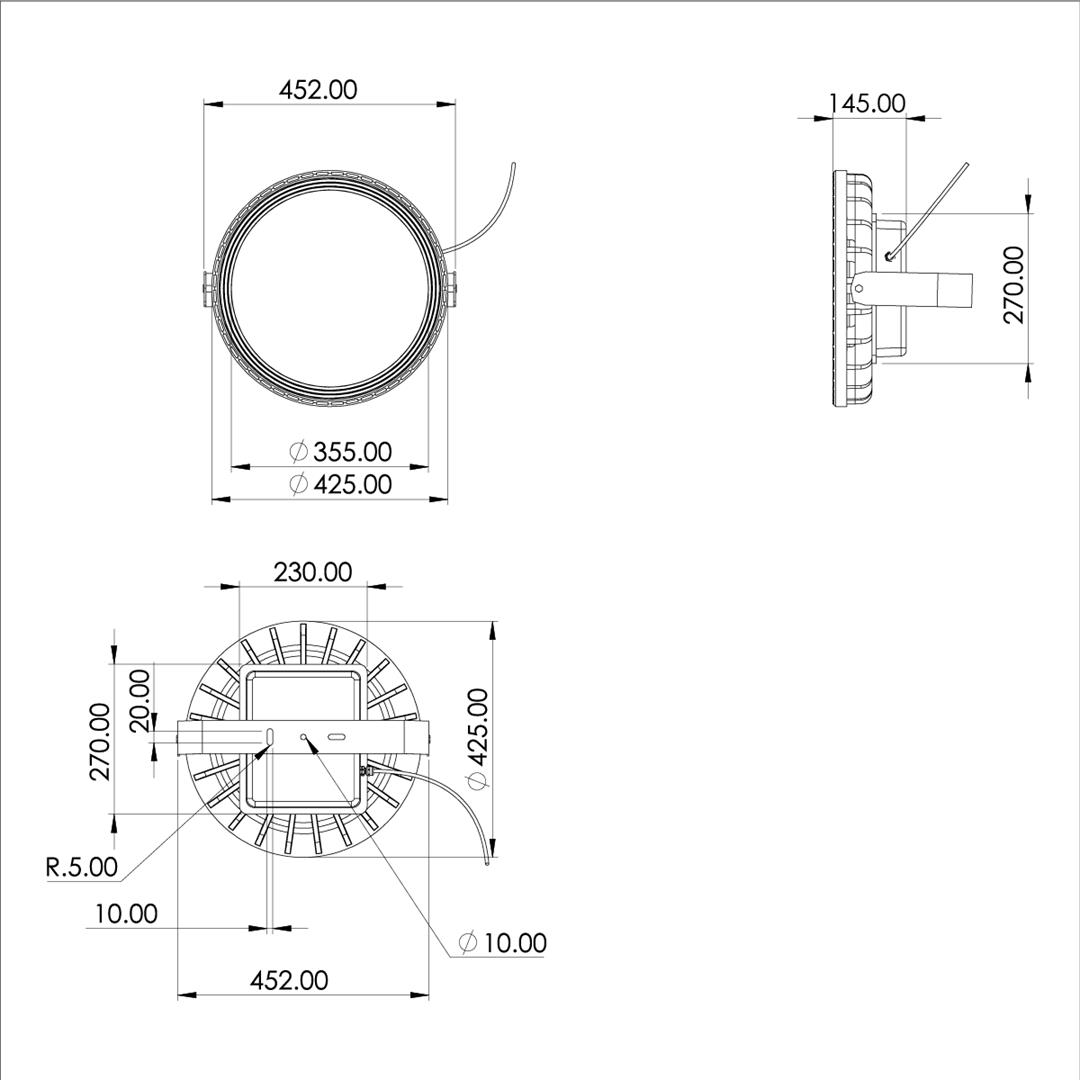

Size
| ø425X145mm
|
Rotation and Tilt
| TILT - 180° THROUGH BRACKET
|
|---|
LENS
| Optical Grade PC Lens Used
|
|---|
GLASS
| Toughened Glass Used
|
Fasteners
| SS Grade Fasteners
|
| Cable | High Current Carrying 3-Core Cable
|
Cable Entry
| Single Cable(L-1000mm)
|
Cable Gland
| SS Cable Gland Used
|
Power Supply
| Built In IP68 Driver
|
IP Rating
| IP65
|
| Weight | 13.5Kg |
Technical Details
| Light Source | LED |
| Input Power | 200W
|
Color Temperature
| 3000K
|
Lumen
| 22296 LM |
Efficacy
| 111 LM/W
|
Beam Angle
| 14°
|
Input Voltage
| 220-240VAC
|
Driving System
| Constant Current
|
Dimming Type
| ON / OFF
|
CRI
| 80+
|
MacAdam
| <3
|
Operating Temperature
| -10 to 50°C
|
LED Life
| L70 at 50000 burning Hours
|
Safety Class
| Class I
|
System Warranty
| 1 Year |
Beam Angle - 14°
| Model | Fixture Colour | Light source | Luminous flux | Beam angle | Control | WITH |
| PB R/B/G/D 200VN30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | LED
(3000K) | 22296 lm | Very Narrow - 14° | CC - Constant Current | B - Bracket |

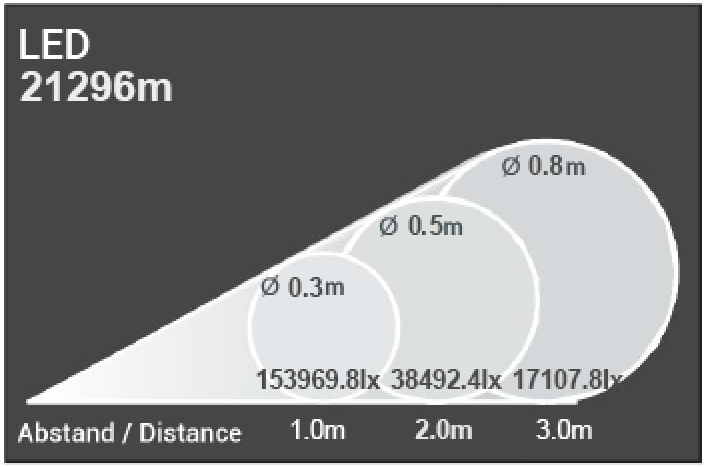

Luminous flux- 3000K

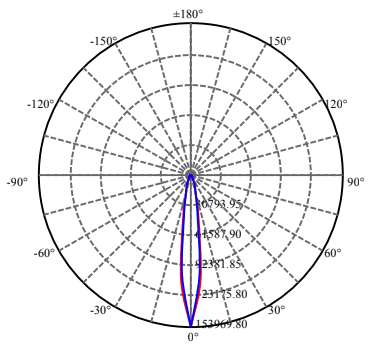

Light Distribution-3000K
