Description

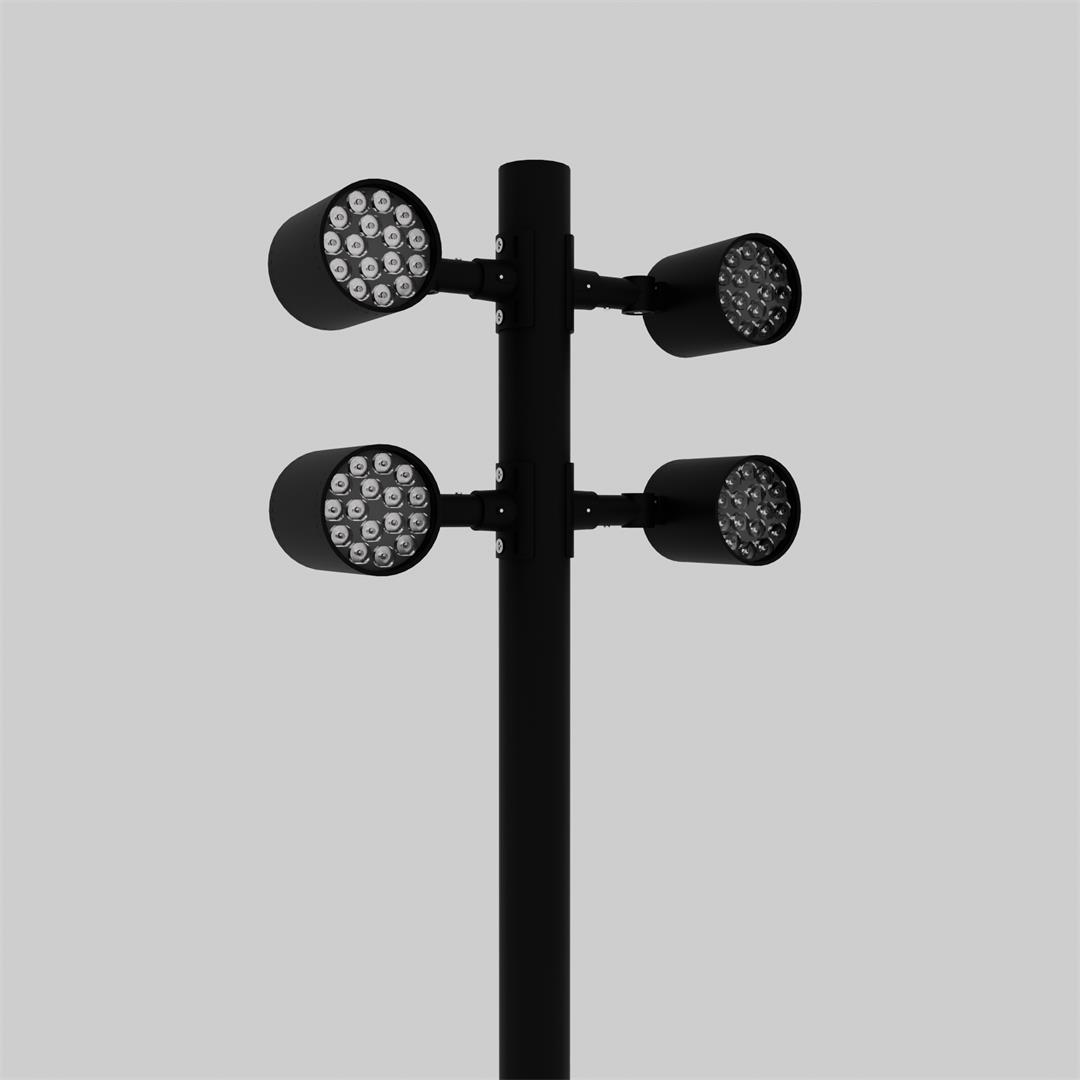

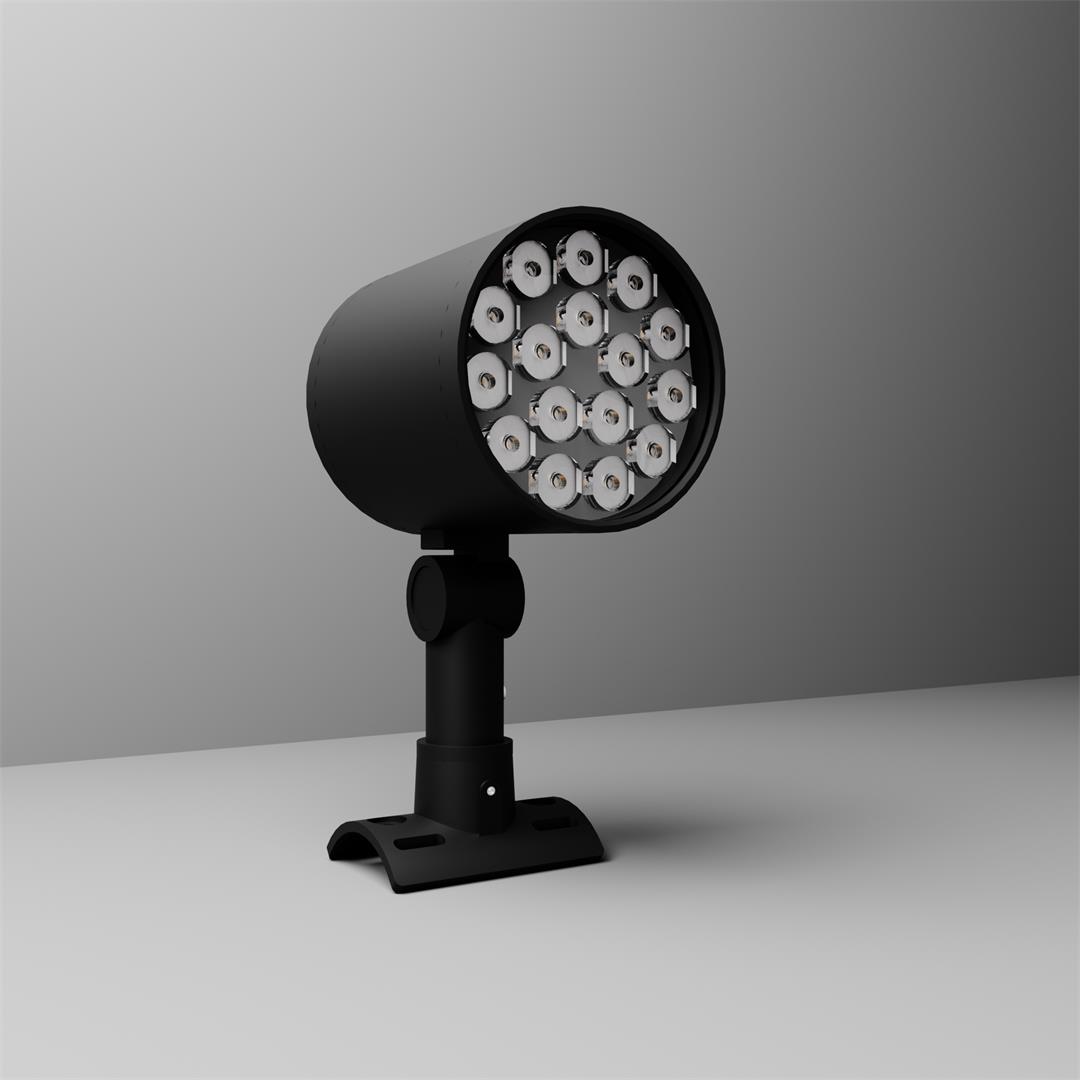

Outdoor Pole Projector Light
Lamp :
-Outdoor Pole Projector Light
-Extruded Aluminium Housing With Heatsink within it
-Die Cast Aluminium Pole Mount Curved Bracket
-Pre - treated Powder Coating for corrosion resistance
-Optical grade PMMA Lens Used
-With/ Without Black Honeycomb louver As per application
-Clear Toughened Glass
-SS304 Grade External & Internal Fasteners used for corrosion resistance
-Built-In IP68 Constant Current Control Gear
-Earthing Safe for shock proof application
-High Power Leds Used
-Swivel Joint For 360° Rotational + 180° Tiltable
-Mounting: On Pole With Curved Bracket
-Protection : IP65
Pole:
-Pole made of Mild Steel
-High strength and resistance in various atmospheric conditions
-All the joints in the body of the pole are welded by using the v groove technique
-Pole used for integration of various LED modules
-The coating process makes the pole excellent corrosion resistant.
-Mounting : On Base Plate & J Anchor Bolt In Foundation
Mechanical Details
| Material | Aluminum
|
Finish
| Jet Black / White |

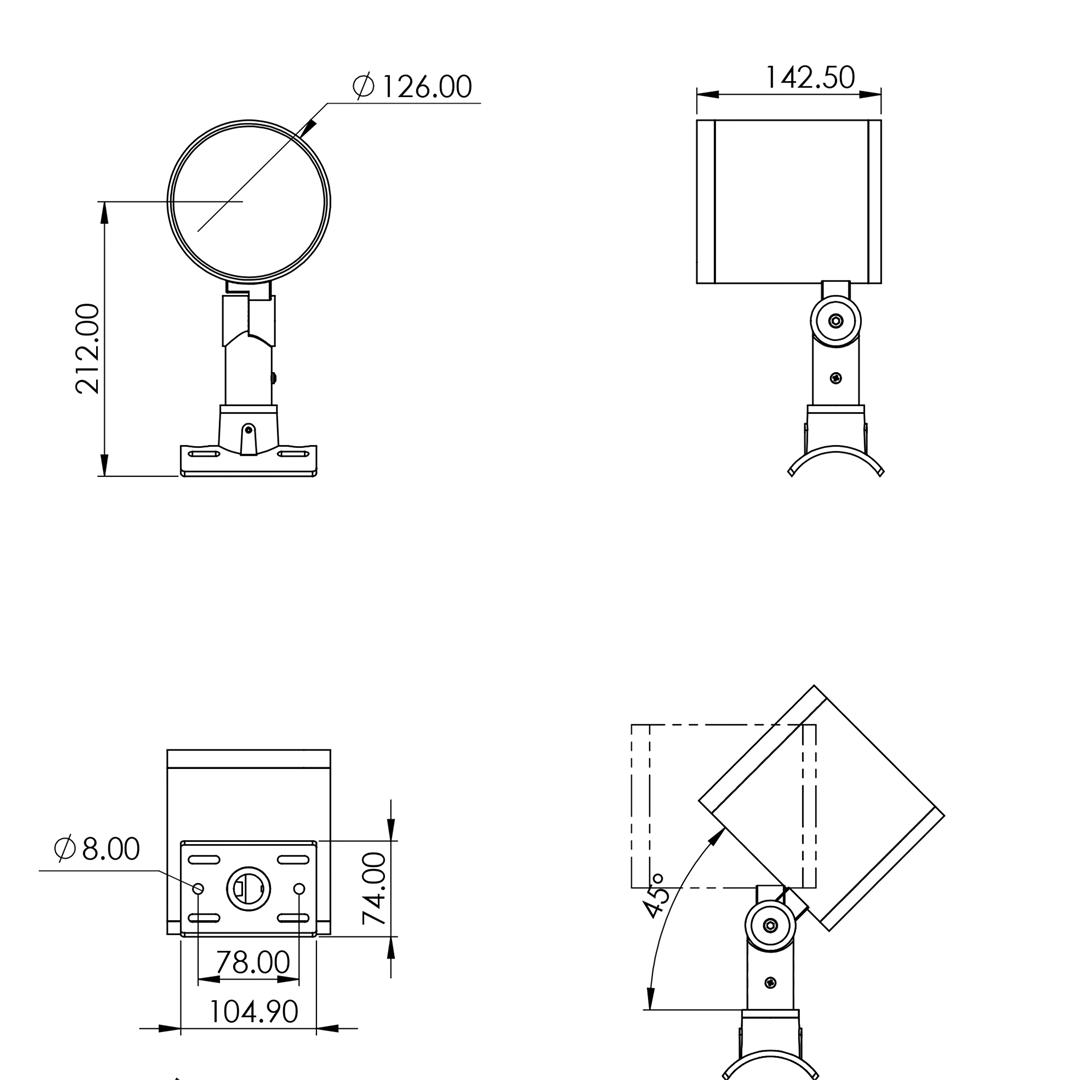

| Size | Ø126X142.5mm Pole Bracket Suitable For : Pole OD - Ø 80mm |
Swivel
| Swivel Joint For Directional Lighting
|
Rotation & Tilt
| 360° Rotational + 180° Tiltable
|
| Lens | Optical grade PMMA Lens
|
Glass
| Clear Toughened Glass |
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
| Cable Entry | Single Cable Entry
|
|---|
Power Supply
| Built - IN IP68 potted constant Current power supply unit
|
|---|
IP Rating
| IP65
|
|---|
Weight
| Lamp: 2.1Kg Pole : 19.1Kg |
|---|
Technical Details
Lamp
| COB |
| Input Power | 36W
|
| Color Temperature | 3000 K
|
| Lumen | 3814 LM |
| Efficacy | 105.9 LM/W |
| Beam Angle | Without mesh-14°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Wide Beam 14°
Model
| Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | WITH | WITH | Data Sheet | IES File |
| OBPB36VN30CC-PB | Jet B-Black | 36W | 16X2.25W LED
3000K | 3814 LM | VERY NARROW - 14° | CC - Constant Current | PB - Pole Bracket | - Without Mesh |  |  |
| OBPR36VN30CC-PB | R-White | 36W | 16X2.25W LED
3000K | 3814 LM | VERY NARROW - 14° | CC - Constant Current | PB - Pole Bracket | - Without Mesh |  |  |
