Description

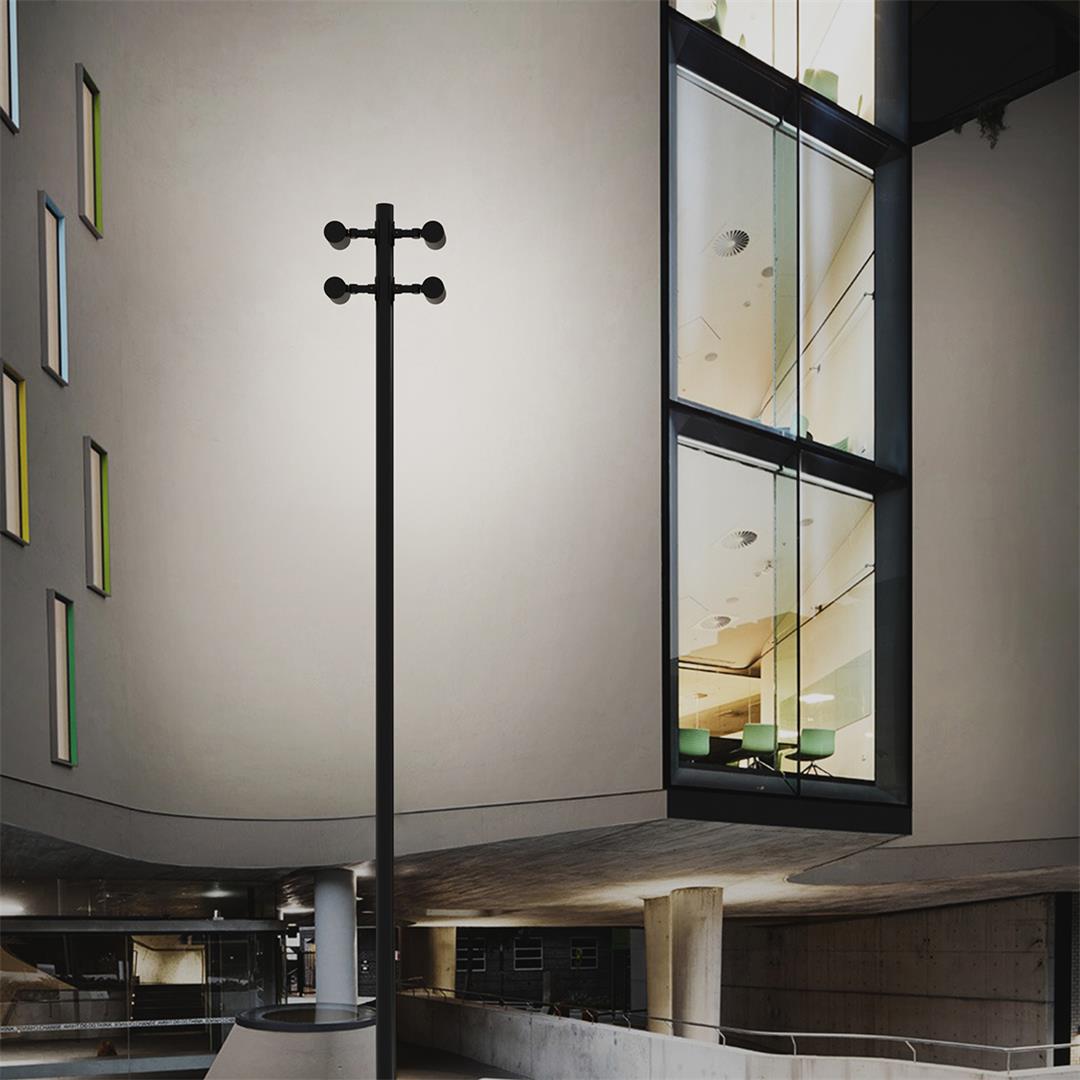

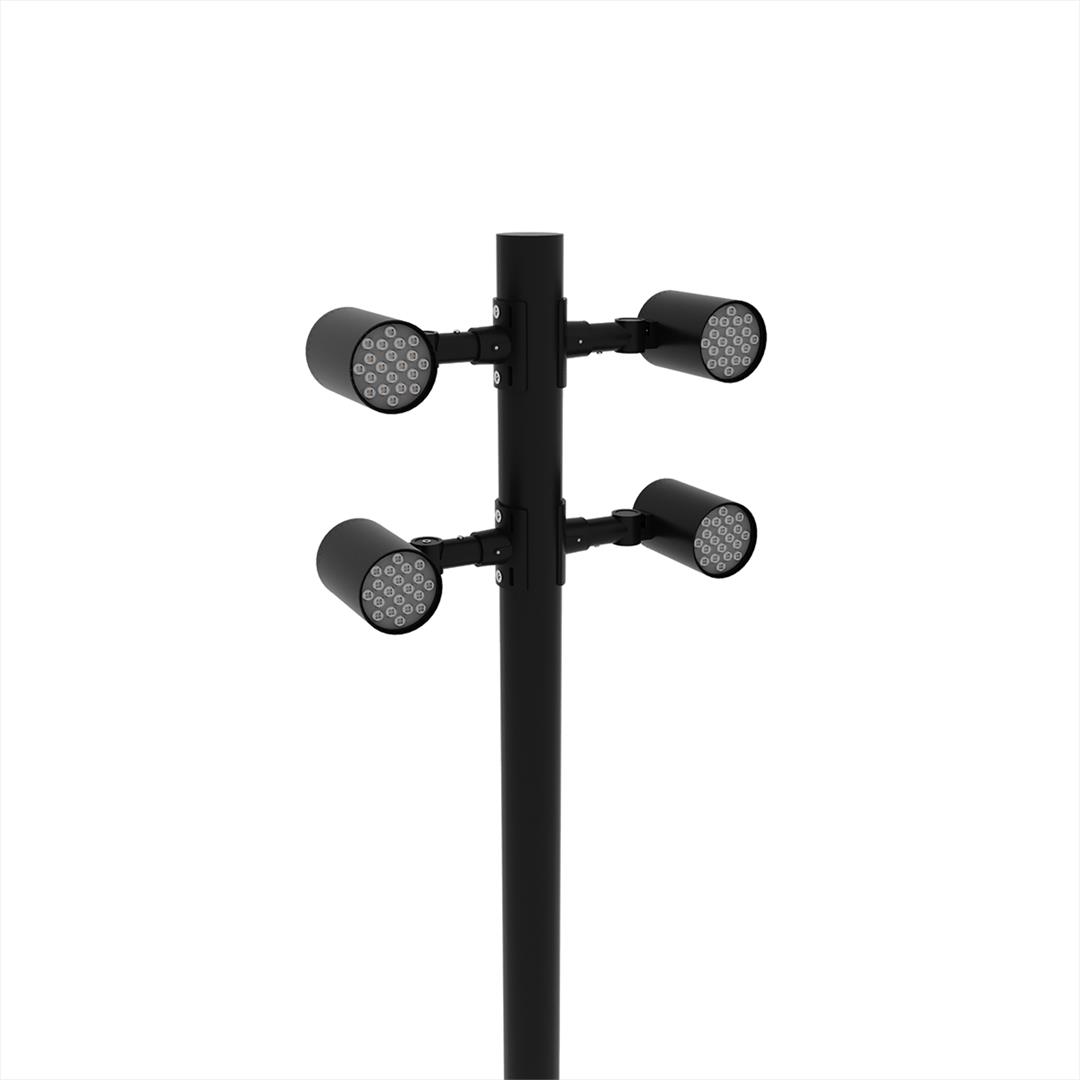

Outdoor Pole Projector Light
Lamp :
Die Cast Aluminium Housing With Heatsink within
Optical Grade PMMA Lens Used
Pre - Treated Powder Coating for Corrosion Resistance
Clear Toughened Glass Used
SiliconeRubber Gasket Used For Water Resistance
SS304 Grade External & Internal Fastners used for corrosion resistance
Built - In IP68 Potted Control Gear Used
High Power Leds Used for long life & good Thermal management
Swivel Joint for 350° Rotaional + 180° Tiltable
With Pole Holder with Lamp For easy installtion on Pole
Protection : IP65
Mounting : On Pole Through Pole Holder Bracket with Bolts
Pole:
Pole made of Mild Steel
High strength and resistance in various atmospheric conditions
All the joints in the body of the pole are welded by using the v groove technique
Pole used for integration of various LED modules
The coating process makes the pole excellent corrosion resistant.
Mounting : On Base Plate & J Anchor Bolt In Foundation
Mechanical Details
| Material | Aluminum
|
Finish
| Black / White |

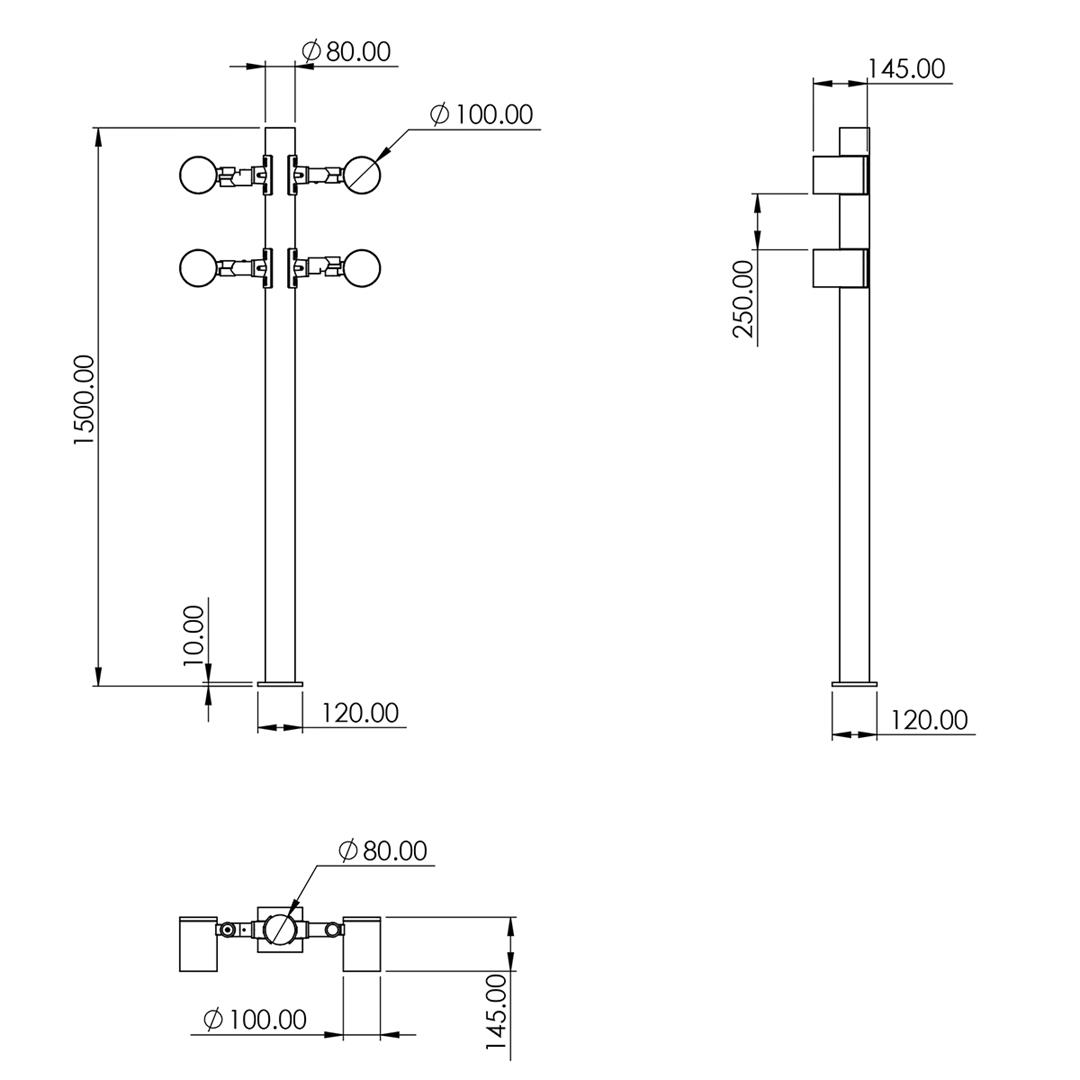

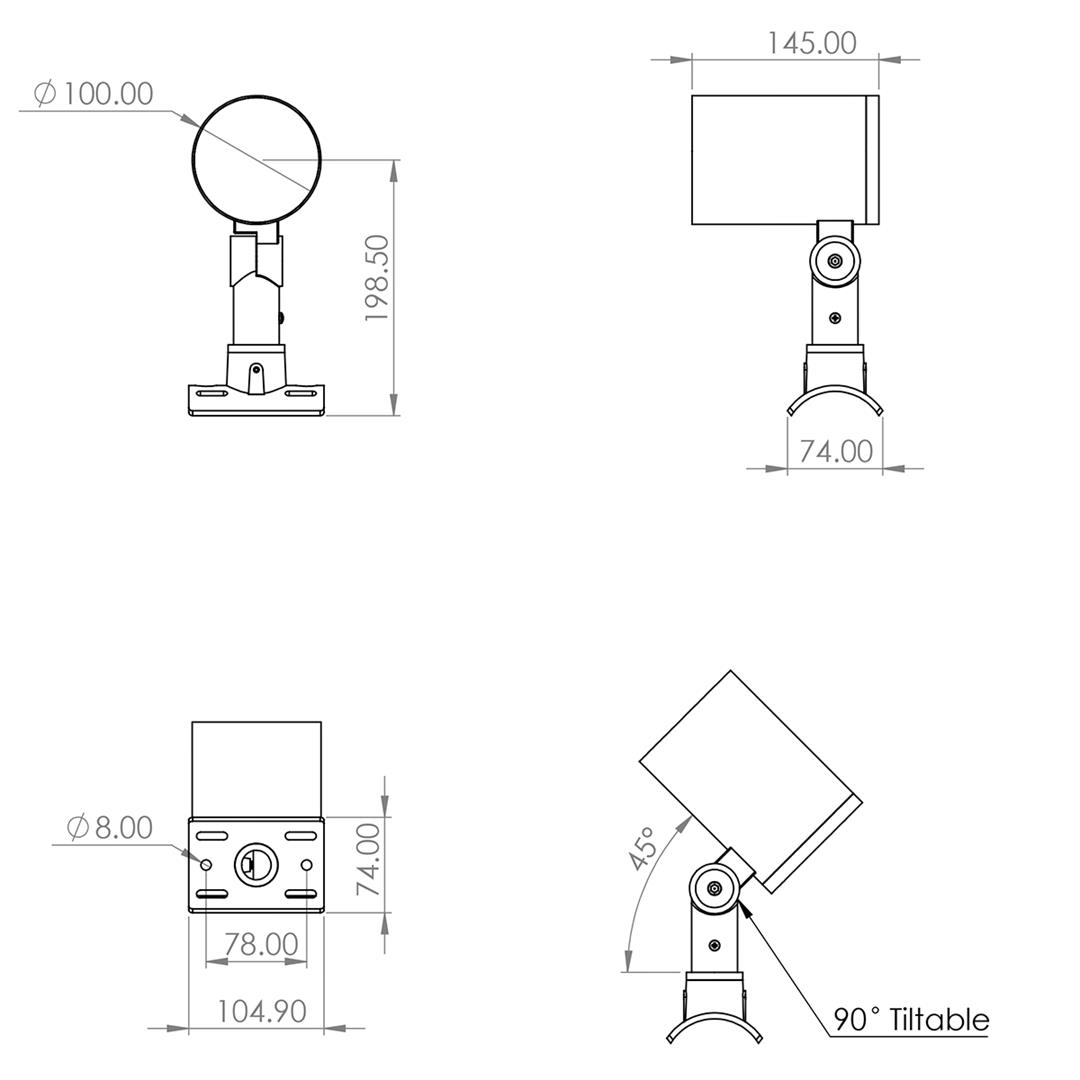

| Size | Lamp : 36W - Ø100X198mm Pole : ø80X3200mm |
Swivel
| Swivel Joint For Directional Lighting
|
Rotation & Tilt
| Lamp : 350° Rotational + 180° Tiltable
|
| Lens | Optical grade PMMA Lens
|
Glass
| Clear Toughened Glass |
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
| Cable Entry | Single Cable Entry
|
|---|
Power Supply
| Built - IN IP68 potted constant Current power supply unit
|
|---|
IP Rating
| IP65
|
|---|
Weight
| Lamp: 4X2.1Kg Pole : 19.1Kg |
|---|
Technical Details
Lamp
| COB |
| Input Power | 4X36W
|
| Color Temperature | 3000 / 4000K
|
| Lumen | 36W 4X(34° - 3132 / 3240 LM) 4X(48° - 2988 / 3096 LM) 4X(58° - 2736 / 2844 LM) |
| Efficacy | 36W 4X(34° - 87/ 90 LM/W) 4X(48° - 83/86 LM/W) 4X(58° - 76/79 LM/W) |
| Beam Angle | 34° / 48° / 58°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Wide Beam 34° / 48° / 58°
Model
| Light Qty On A pole
| CCT
| Watt
| Beam Angle
| Light O/p
| Data Sheet | IES File |
|---|
PW3PM4X3630MGG
| 4 nos | 3000K | 4X36W | Medium - 34° | 4X3132 lm |  |  |
PW3PM4X3640MGG
| 4 nos | 4000K | 4X36W | Medium - 34° | 4X3240 lm |  |  |
PW3PM4X3630WGG
| 4 nos | 3000K | 4X36W | Wide - 48° | 4X2988 lm |  |  |
PW3PM4X3640WGG
| 4 nos | 4000K | 4X36W | Wide - 48° | 4X3096 lm |  |  |
PW3PM4X3630FGG
| 4 nos | 3000K | 4X36W | Flood - 58° | 4X2736 lm |  |  |
PW3PM4X3640FGG
| 4 nos | 4000K | 4X36W | Flood - 58° | 4X2844 lm |  |  |
