Description
-Outdoor Deep Projector Spike Light
-Extruded Aluminium Housing With Heatsink within it
-Optical grade PC with UV coated reflector / PC LENS
-Pre-treated powder Coating for corrosion resistance
-Clear Toughened Glass
-SS304 Grade External & Internal Fasteners used for corrosion resistance
-Built-In IP68 Constant Current Control Gear
-Earthing Safe for shock proof application
-High CRI COB Used
-Swivel Joint For 350° Rotational + 180° Tiltable
-Mounting: With Spike / Bracket
-Protection : IP65
Mechanical Details
| Mounting | Outdoor |
| Material | Aluminum |
Finish
| Black / White / Dark Green / Graphite Grey |

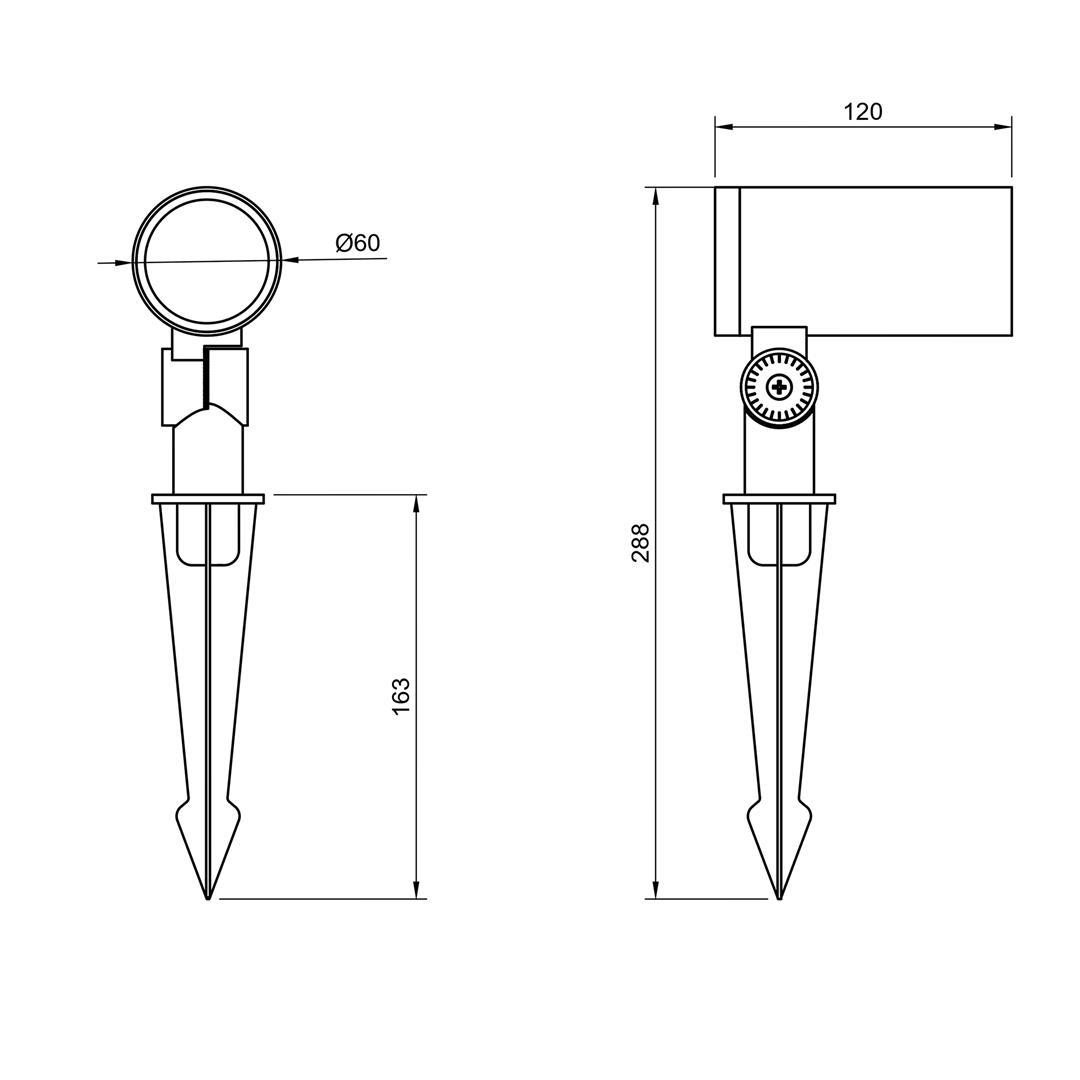

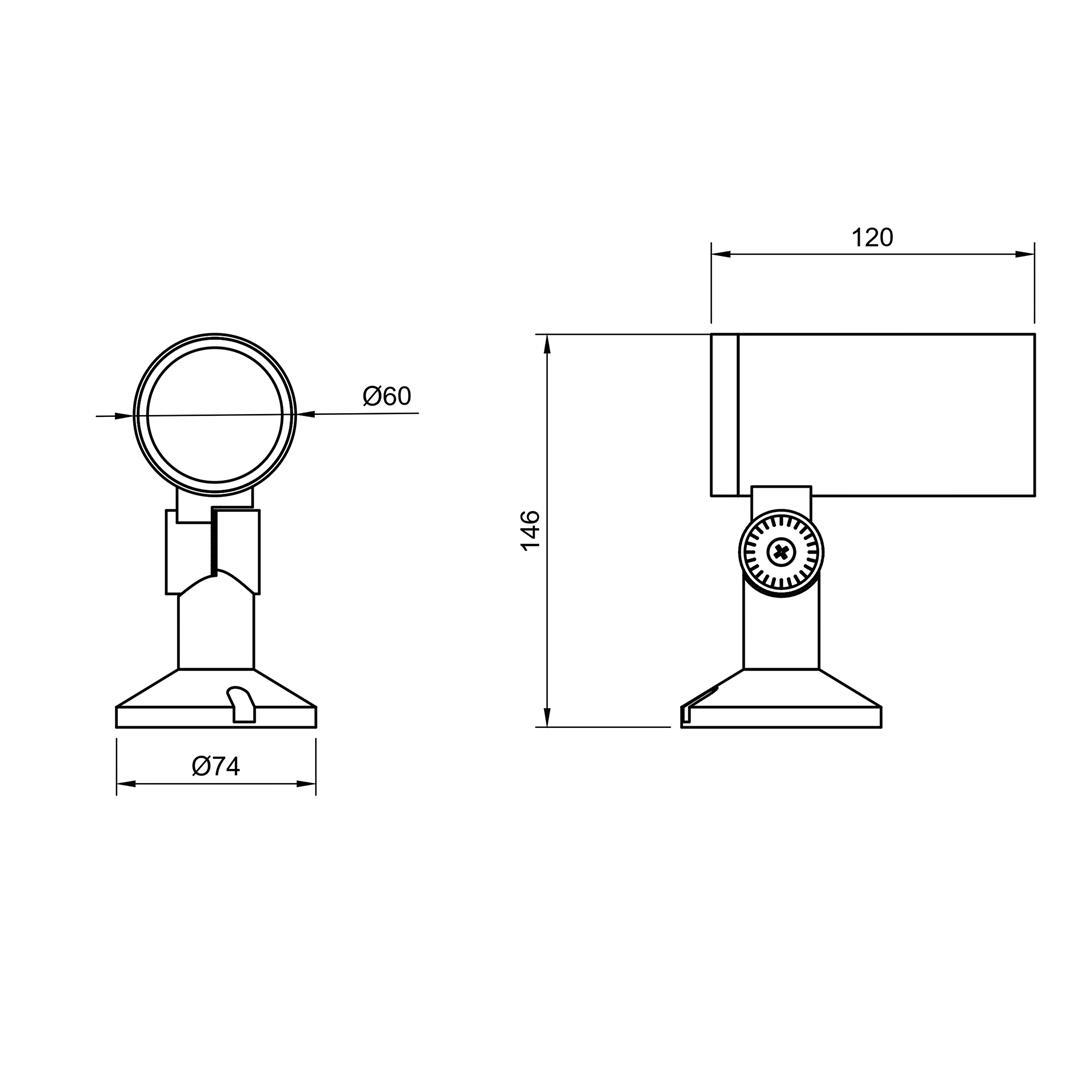

| Size | Ø60X120mm |
Swivel
| Swivel Joint For Directional Lighting
|
Rotation and Tilt
| 350° Rotational + 180° Tiltable
|
Reflector
| Optical grade PMMA Lens / Reflector (20mm Deep & 11mm Deep)
|
Louvre
| With / Without Honeycomb Louver
|
Glass
| Clear Toughened Glass |
|---|
Depth
| 40mm Deep |
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
| Cable Entry | Single Cable Entry (L-300mm)
|
|---|
Power Supply
| Built - IN IP68 potted constant Current power supply unit
|
|---|
IP Rating
| IP65
|
|---|
Weight
| 0.8Kg |
|---|
Technical Details
Lamp
| COB |
| Input Power | 15W |
| Color Temperature | 3000K |
| Lumen | Lens With Mesh : 26° - 690 LM Without Mesh : 32° - 1005 LM Reflector 38° - 1125 LM |
| Efficacy | Lens With Mesh : 26° - 46 LM/W Without Mesh : 32° - 67 LM/W
Reflector 38° - 75 LM/W |
| Beam Angle | Without Mesh - 32° / 38° With Mesh - 26° |
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 90+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Beam Angle :-
Without Mesh - 32° / 38°
With Mesh - 26°
LENS
| Model | Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | Mesh | WITH | Cable |
| PB R/B/G/D 15MC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 15W | 1X15W COB
3000K | 1005 LM | M - 32° | CC - Constant Current | C - Clear Glass
| B - Bracket | - Single Cable |
| PB R/B/G/D 15MM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 15W | 1X15W COB
3000K | 690 LM | M - 26° | CC - Constant Current |
M - Mesh | B - Bracket | - Single Cable |
| PS R/B/G/D 15MC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 15W | 1X15W COB
3000K | 1005 LM | M - 32° | CC - Constant Current | C - Clear Glass
| S - Spike | - Single Cable |
| PS R/B/G/D 15MM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 15W | 1X15W COB
3000K | 690 LM | M - 26° | CC - Constant Current |
M - Mesh | S - Spike | - Single Cable |
PB R/B/G/D 15WC30CC-
| R - White B - Black G - Graphite Grey D - Dark Green
| 15W
| 1X15W COB
3000K
| 1125 LM
| W - 38°
| CC - Constant Current
|
C - Clear Glass
| B - Bracket
| - Single Cable
|
PS R/B/G/D 15WC30CC-
| R - White B - Black G - Graphite Grey D - Dark Green
| 15W
| 1X15W COB
3000K
| 1125 LM
| W - 38°
| CC - Constant Current | C - Clear Glass
| S - Spike
| - Single Cable |
