Description

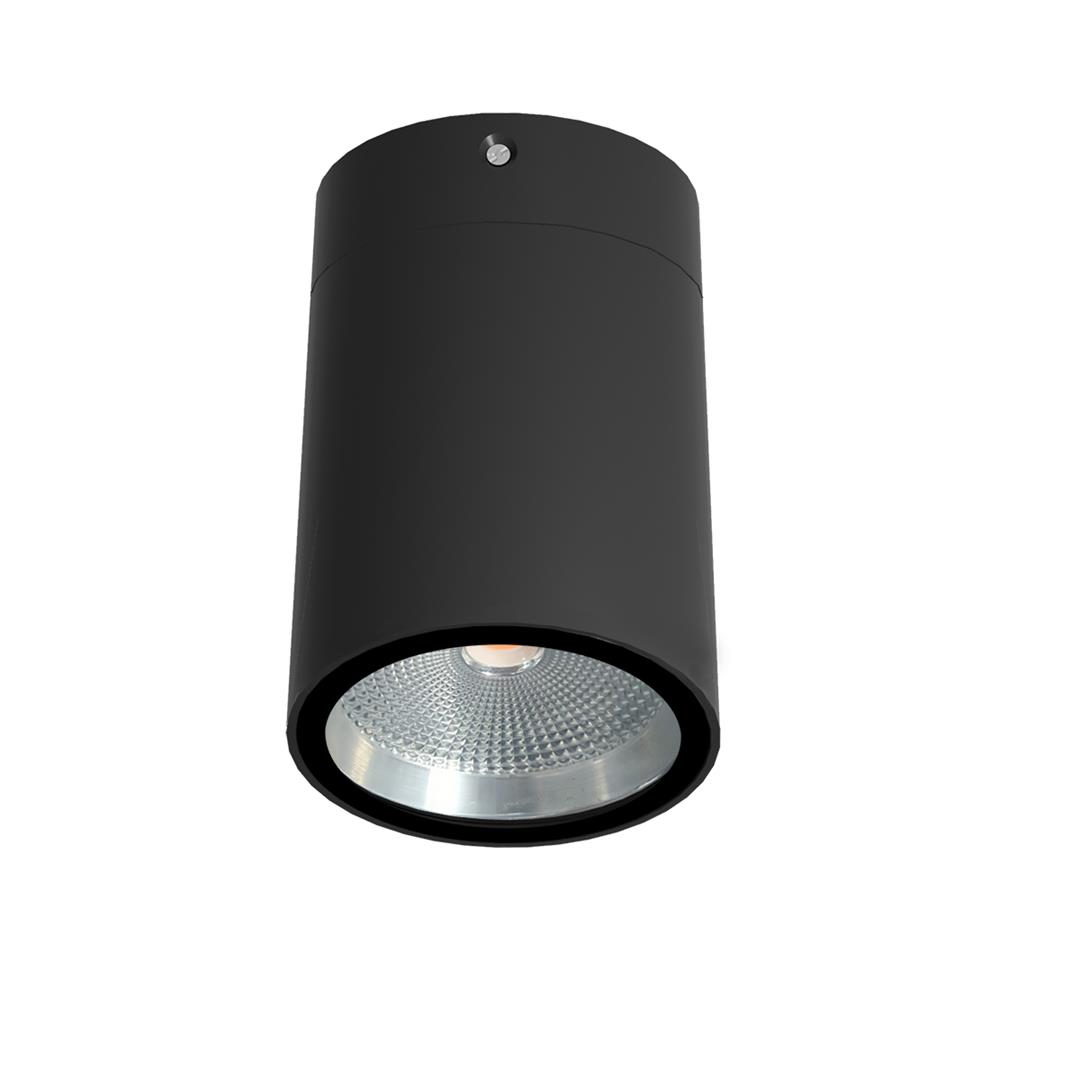

-Outdoor Surface Light
-Extruded Aluminium Houing With Heatsink within it
-Optical grade PC with UV coated reflector
-Pre - treated Powder Coating for corrosion resistance
-Clear Toughened Glass
-SS Cable Gland Used
-SS304 Grade External & Internal Fasteners used for corrosion resistance
-High CRI COB Used
-Built - In IP68 Power Supply Used
-Protection : IP65
-Mounting : Surface Mount With C Clamp
USP:-
*Cylinder Surface Mount Light Distinct Look For outdoor Surface mount.
*Earthing Safe For Shock Proof Application.
*C Clamp For Easy Installation & Uninstallation on outdoor Surface
Mechanical Details
| Material | Aluminum |
|---|
| Finish | Black / White |
| Size | Ø105X138.5mm |
|---|
Reflector
| Optical grade PC Reflector
|
Glass
| Clear Toughened Glass
|
Fasteners
| SS 304 grade Internal & External fasteners |
Cable
| High current carrying 3 core cable
|
Cable Entry
| Single Entry
|
Cable Gland
| SS Cable Gland
|
Power Supply
| Built-In IP68 Power Supply
|
|---|
IP Rating
| IP65
|
Weight
| 1.2Kg
|
Technical Details
Lamp
| COB |
| Input Power | 15 Watt |
| Color Temperature | 3000K / 4000K
|
| Lumen | 1020/1242 LM |
| Efficacy | 68/69 LM/W |
| Beam Angle | 81°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF
|
|---|
| CRI | 95+
|
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
LED Life
| L70 at 50000 burning Hours
|
Safety Class
| Class I
|
|---|
System Warranty
| 1 Years
|
|---|
Bean Angle :-
Medium - 81°

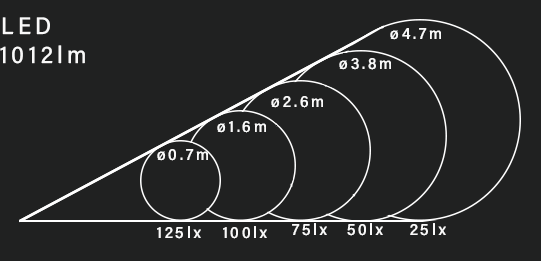

Luminous Flux
Light Distribution
Model
| Watt | Color | Luminous Flux(LM) | Beam Angle | Color Temp | Data Sheet | IES File |
| OSRR15F30 | 15 Watt | Jet Black | 1020 LM | Flood - 81° | 1X15W COB 3000K |  |  |
| OSRR15F40 | 15 Watt | Jet Black | 1242 LM | Flood - 81° | 1X15W COB 4000K |  |  |
| OSRR15F30 | 15 Watt | White | 1020 LM | Flood - 81° | 1X15W COB 3000K |  |  |
| OSRR15F40 | 15 Watt | White | 1242 LM | Flood - 81° | 1X15W COB 4000K |  |  |
