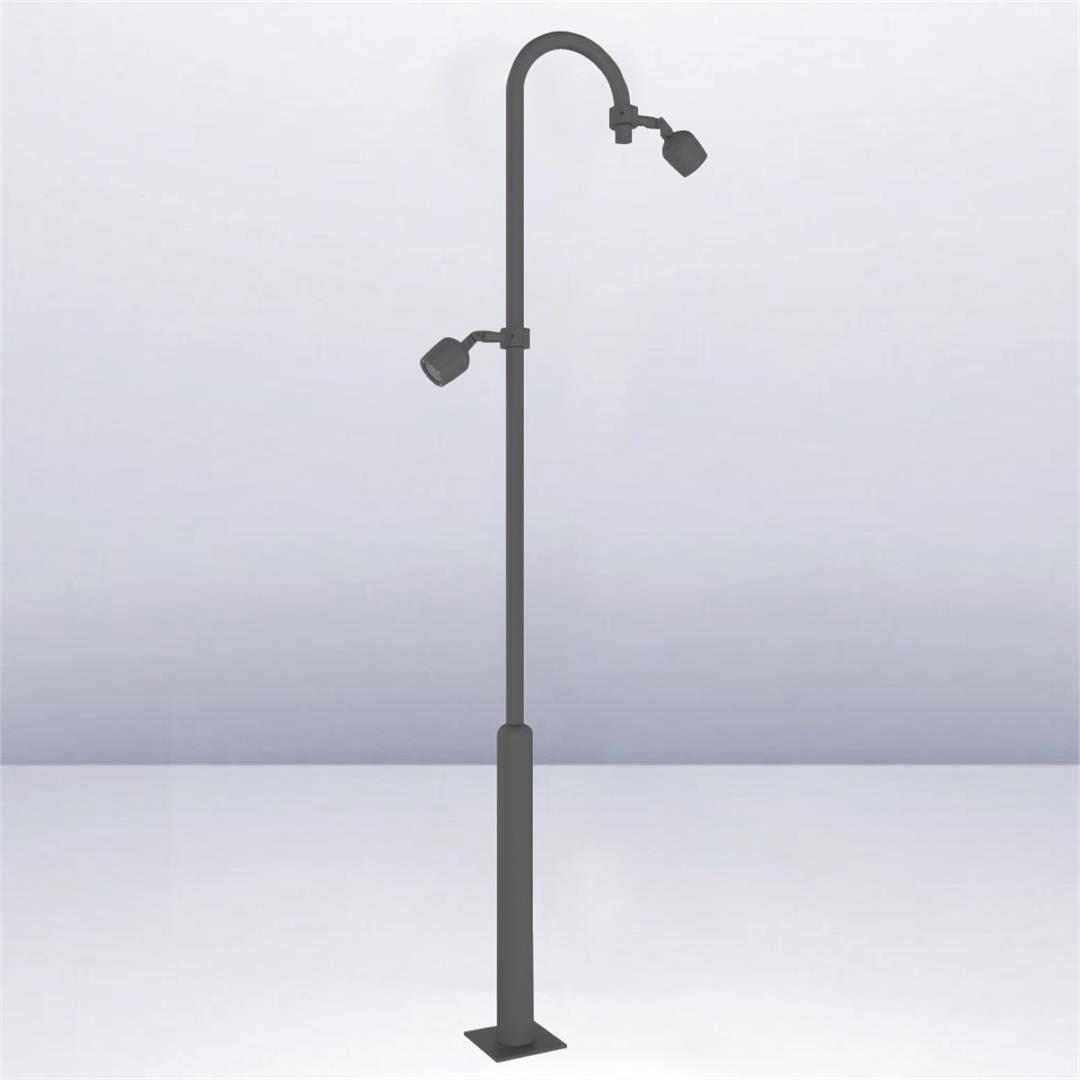

Description
Lamp :
- Die Cast Aluminium Housing With Heatsink within
- Optical grade PMMA Lens used
- Pre - treated Powder Coating for corrosion resistance
- Clear Toughened Glass Used
- Silicone Rubber Gasket Used For Water Resistance
- SS304 Grade External & Internal Fasteners used for corrosion resistance
- Built - In IP68 Potted Control Gear Used
- High Power LEDs Used for long life & good Thermal management
- Swivel Joint for 350° Rotational + 180° Tiltable
- With Pole Holder with Lamp For easy installation on Pole
- Protection : IP65
Pole:
- Pole made of Galvanized Steel
- High strength and corrosion resistance in various atmospheric conditions
- All the joints in the body of the pole are welded by using the v groove technique
- Pole used for integration of various LED modules
- The coating process makes the pole excellent corrosion resistant.
- Quick installation and low assembly costs.
- Functionally versatile, strong, and stable.
- Long life span with very low maintenance.
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | Graphite Grey
|
| Size | Lamp : 36W - Ø110X300mm 60W - Ø200X300mm Pole Bracket : ID - ø56mm Suitable For Round pole : ø55mm Pole Base Plate : Sq300mm Thickness-10mm |
|---|
Swivel
| Swivel For Directional Lighting
|
|---|
Rotation & Tilt
| 350° Rotational + 180° Tiltable
|
LENs
| Optical grade PMMA Lens
|
|---|
Glass
| Clear Toughened Glass
|
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
Cable Entry
| Single Cable Entry
|
|---|
Cable Gland
| SS Cable Gland
|
Power Supply
| Built - IN IP68 potted power supply Used
|
IP Rating
| IP65
|
Weight
| Lamp : 36W(1nos) - 2.5Kg 60W(1nos) - 3.5Kg |
Technical Details:
| Light Source | LED |
| Input Power | 2X36W 2X60W |
| Color Temperature | 3000 / 4000K |
| Lumen | 36W 2X(34° - 3132 / 3240 LM) 2X(48° - 2988 / 3096 LM) 2X(58° - 2736 / 2844 LM) 60W 2X(34° - 5220 / 5400 LM) 2X(48° - 4980 / 5160 LM) 2X(58° - 4560 / 4740 LM) |
| Efficacy | 2X(34° - 87/ 90 LM/W) 2X(48° - 83/86 LM/W) 2X(58° - 76/79 LM/W) |
| Beam Angle | 34° / 48° / 58°
|
| Input Voltage | 220-240 VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
| Model | Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | Cable |
| PPBG2X36M30CC- | G-Graphite Grey | 2X36W | 3000K | 2X3132 lm | Medium - 34° | CC - Constant Current | - Single Cable |
| PPBG2X36M40CC- | G-Graphite Grey | 2X36W | 4000K | 2X3240 lm | Medium - 34° | CC - Constant Current | - Single Cable |
| PPBG2X36W30CC- | G-Graphite Grey | 2X36W | 3000K | 2X2988 lm | Wide - 48° | CC - Constant Current | - Single Cable |
| PPBG2X36W40CC- | G-Graphite Grey | 2X36W | 4000K | 2X3096 lm | Wide - 48° | CC - Constant Current | - Single Cable |
| PPBG2X36F30CC- | G-Graphite Grey | 2X36W | 3000K | 2X2736 lm | Flood - 58° | CC - Constant Current | - Single Cable |
| PPBG2X36F40CC- | G-Graphite Grey | 2X36W | 4000K | 2X2844 lm | Flood - 58° | CC - Constant Current | - Single Cable |
| PPBG2X60M30CC- | G-Graphite Grey | 2X60W | 3000K | 2X5220 lm | Medium - 34° | CC - Constant Current | - Single Cable |
| PPBG2X60M40CC- | G-Graphite Grey | 2X60W | 4000K | 2X5400 lm | Medium - 34° | CC - Constant Current | - Single Cable |
| PPBG2X60W30CC- | G-Graphite Grey | 2X60W | 3000K | 2X4980 lm | Wide - 48° | CC - Constant Current | - Single Cable |
| PPBG2X60W40CC- | G-Graphite Grey | 2X60W | 4000K | 2X5160 lm | Wide - 48° | CC - Constant Current | - Single Cable |
| PPBG2X60F30CC- | G-Graphite Grey | 2X60W | 3000K | 2X4560 lm | Flood - 58° | CC - Constant Current | - Single Cable |
| PPBG2X60F40CC- | G-Graphite Grey | 2X60W | 4000K | 2X4740 lm | Flood - 58° | CC - Constant Current | - Single Cable |
USP:
*360° Rotational + 180° Tiltable For Directional Lighting Mounted On a Pole for Sports, Parking , Walkways Application
*Easy Pole Mount With Curved Pole Bracket
*Earthing Safe Shockproof Application
