Description

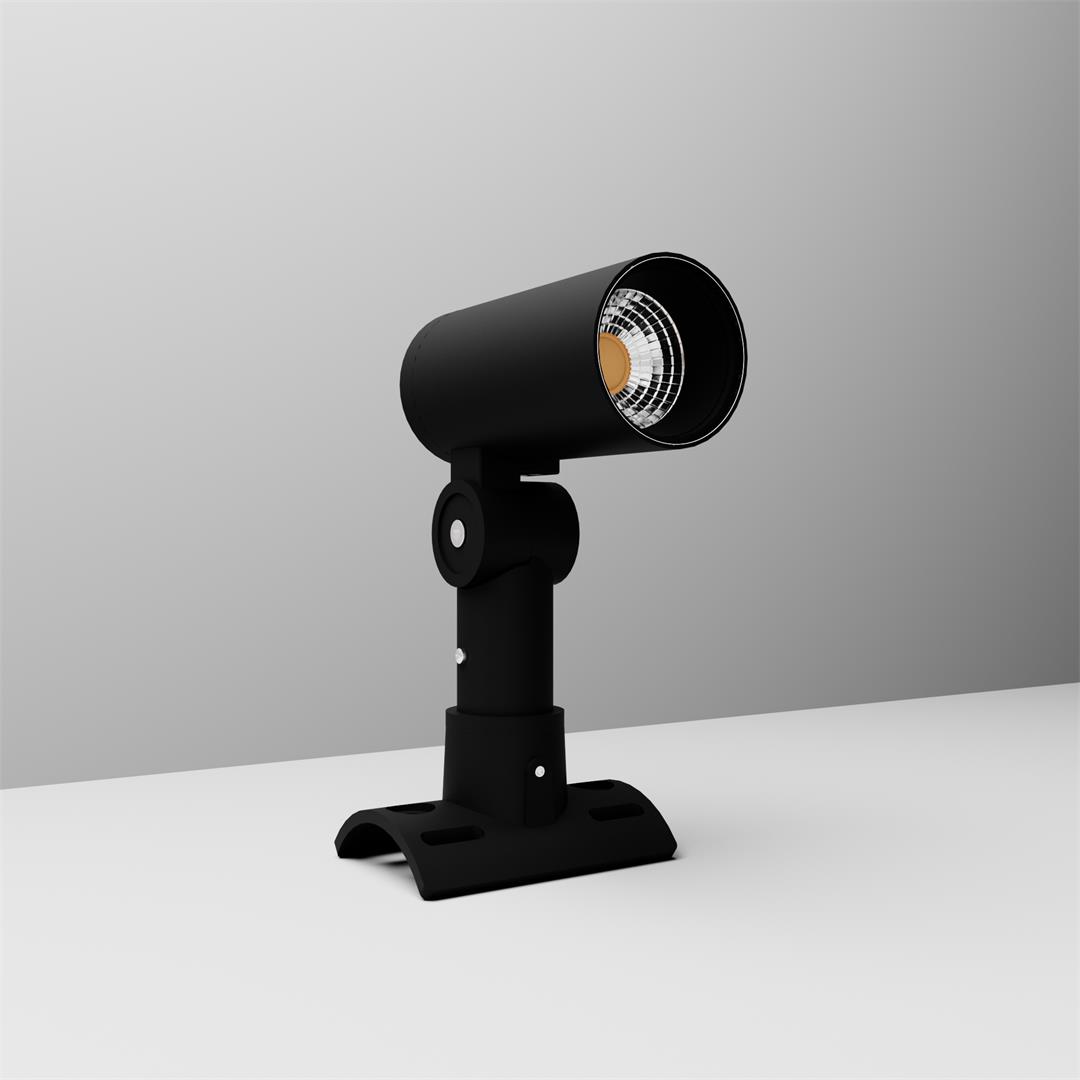

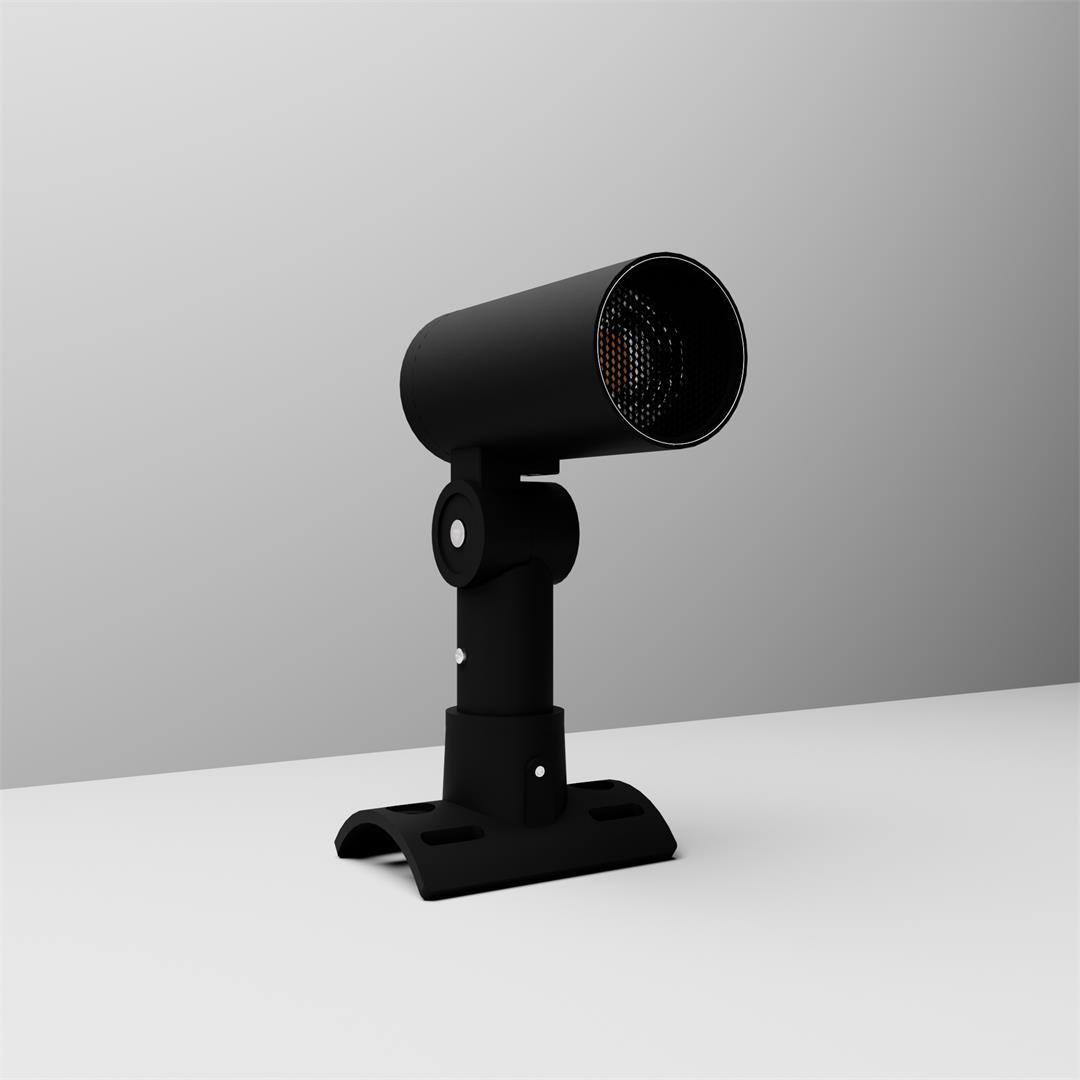

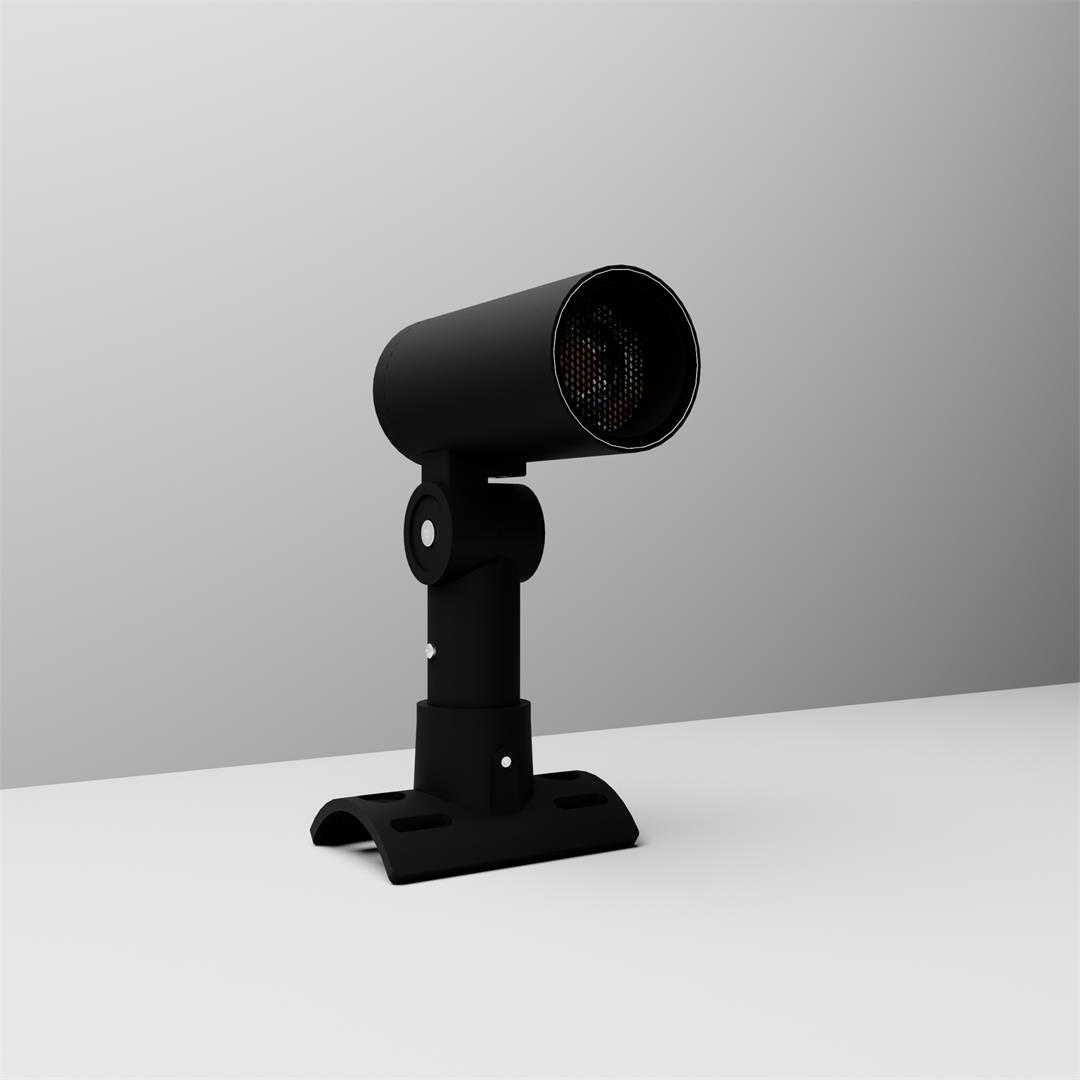

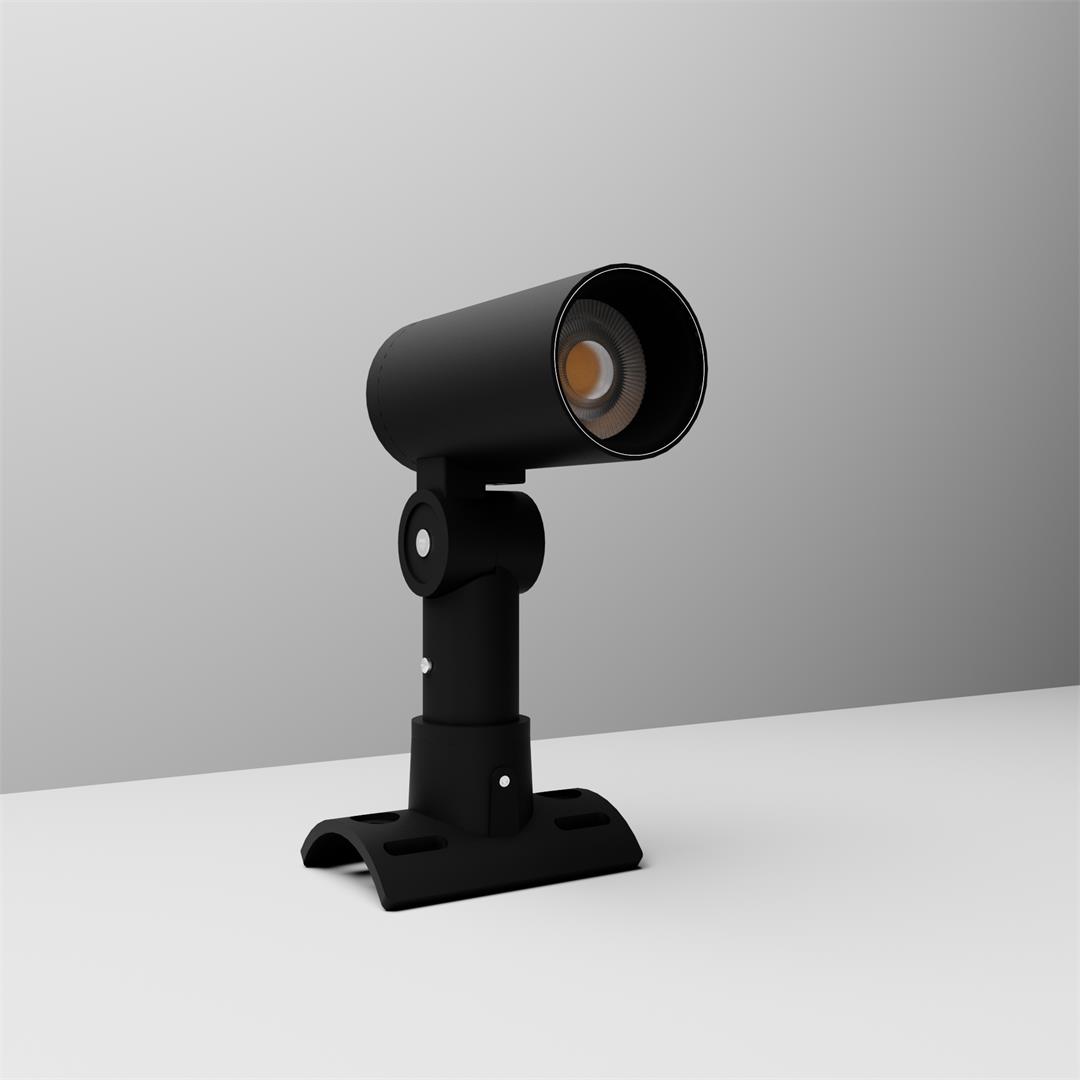

Outdoor Pole Projector Light
Lamp :
-Outdoor Deep Projector Spike Light
-Extruded Aluminium Housing With Heatsink within it
-Die Cast Aluminium Pole Mount Curved Bracket
-Pre - treated Powder Coating for corrosion resistance
-Optical grade PC with UV coated reflector
-Black Honeycomb louver As per application
-Clear Toughened Glass
-SS304 Grade External & Internal Fasteners used for corrosion resistance
-Built-In IP68 Constant Current Control Gear
-Earthing Safe for shock proof application
-High CRI COB Used
-Swivel Joint For 350° Rotational + 180° Tiltable
-Mounting: On Pole With Curved Bracket
-Protection : IP65

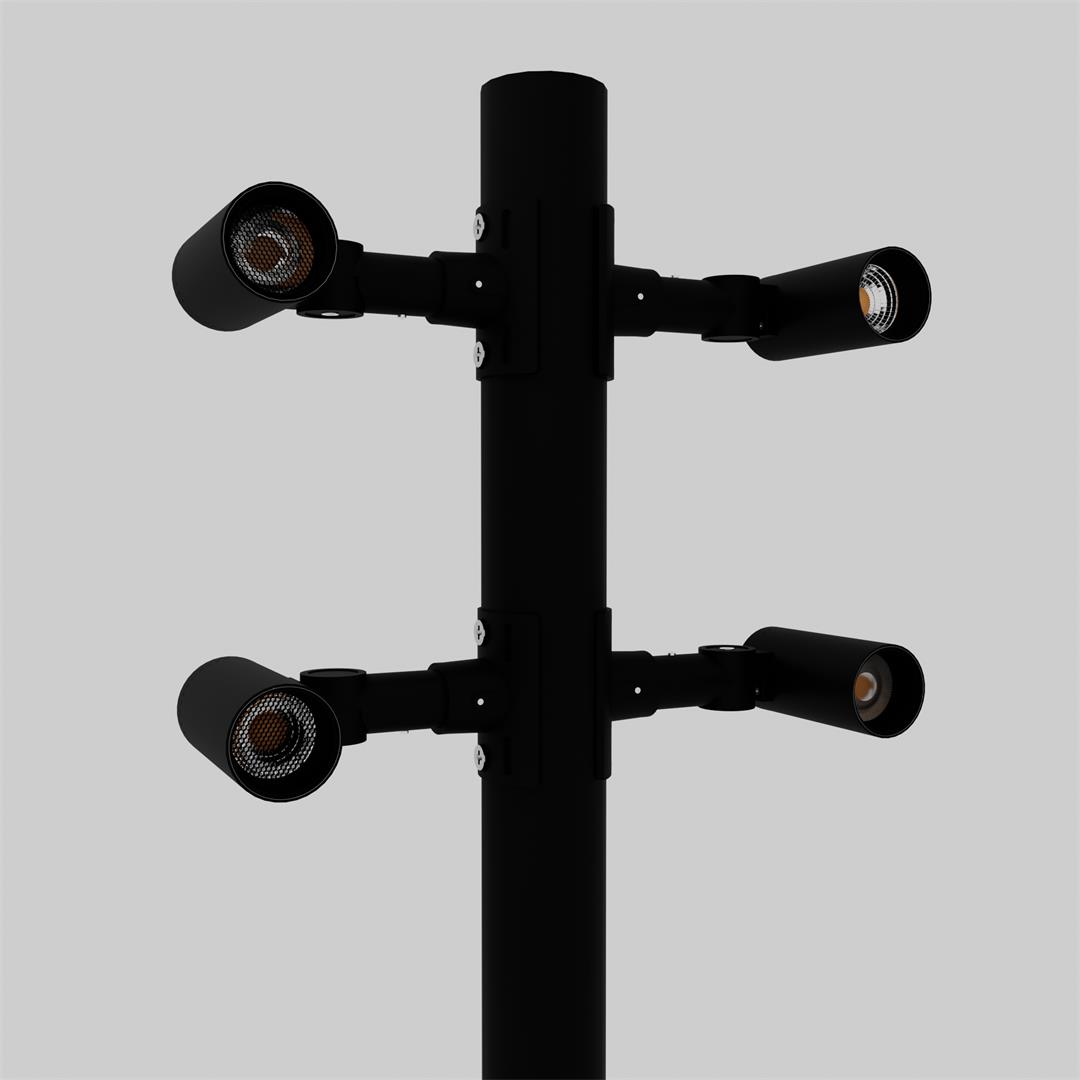

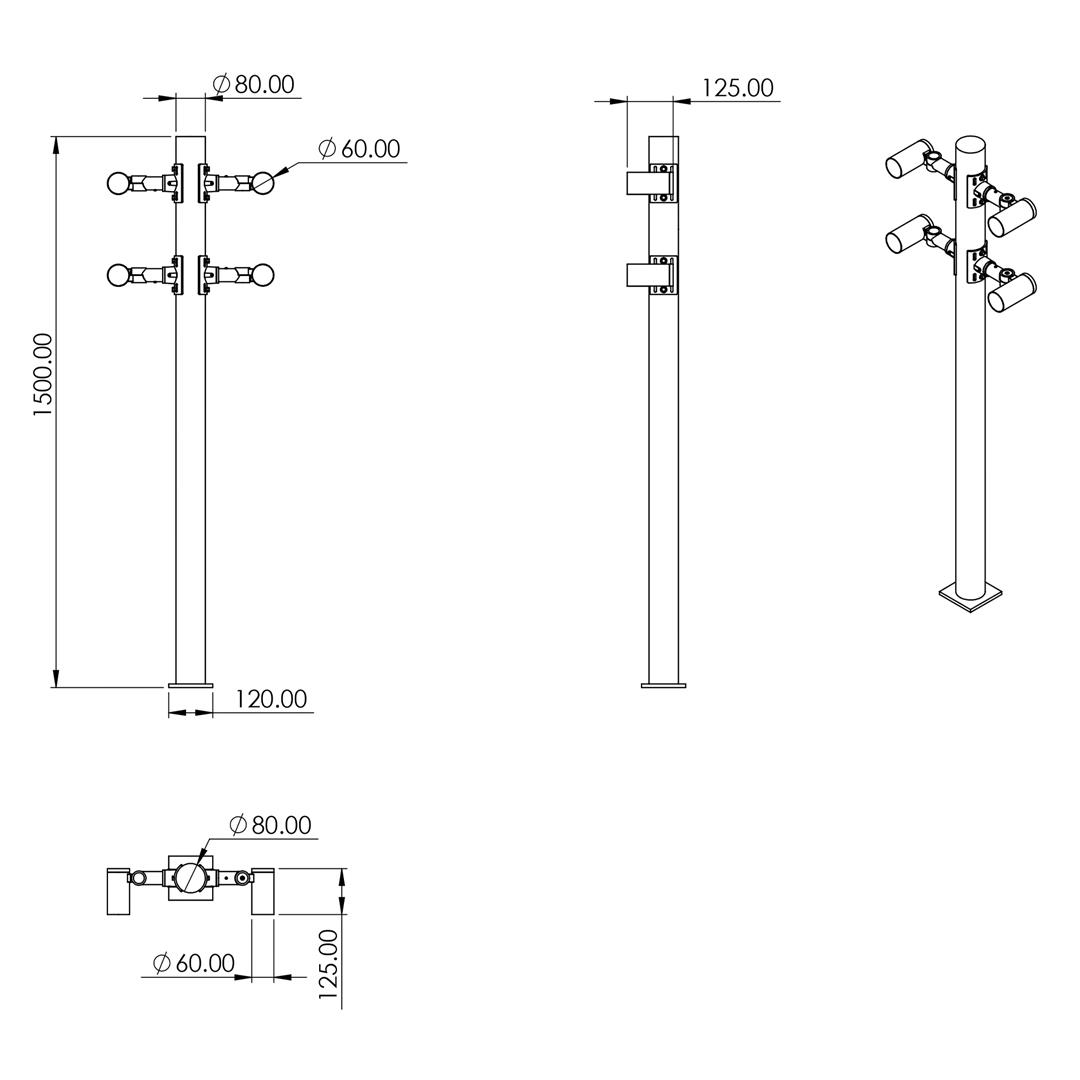

Pole:
-Pole made of Mild Steel.
-High strength and resistance in various atmospheric conditions.
-All the joints in the body of the pole are welded by using the v groove technique.
-Pole used for integration of various LED modules.
-The coating process makes the pole excellent corrosion resistant.
-Mounting : On Base Plate & J Anchor Bolt In Foundation.
Mechanical Details
Material
| Aluminum
|
Finish
| Jet Black
|
Size

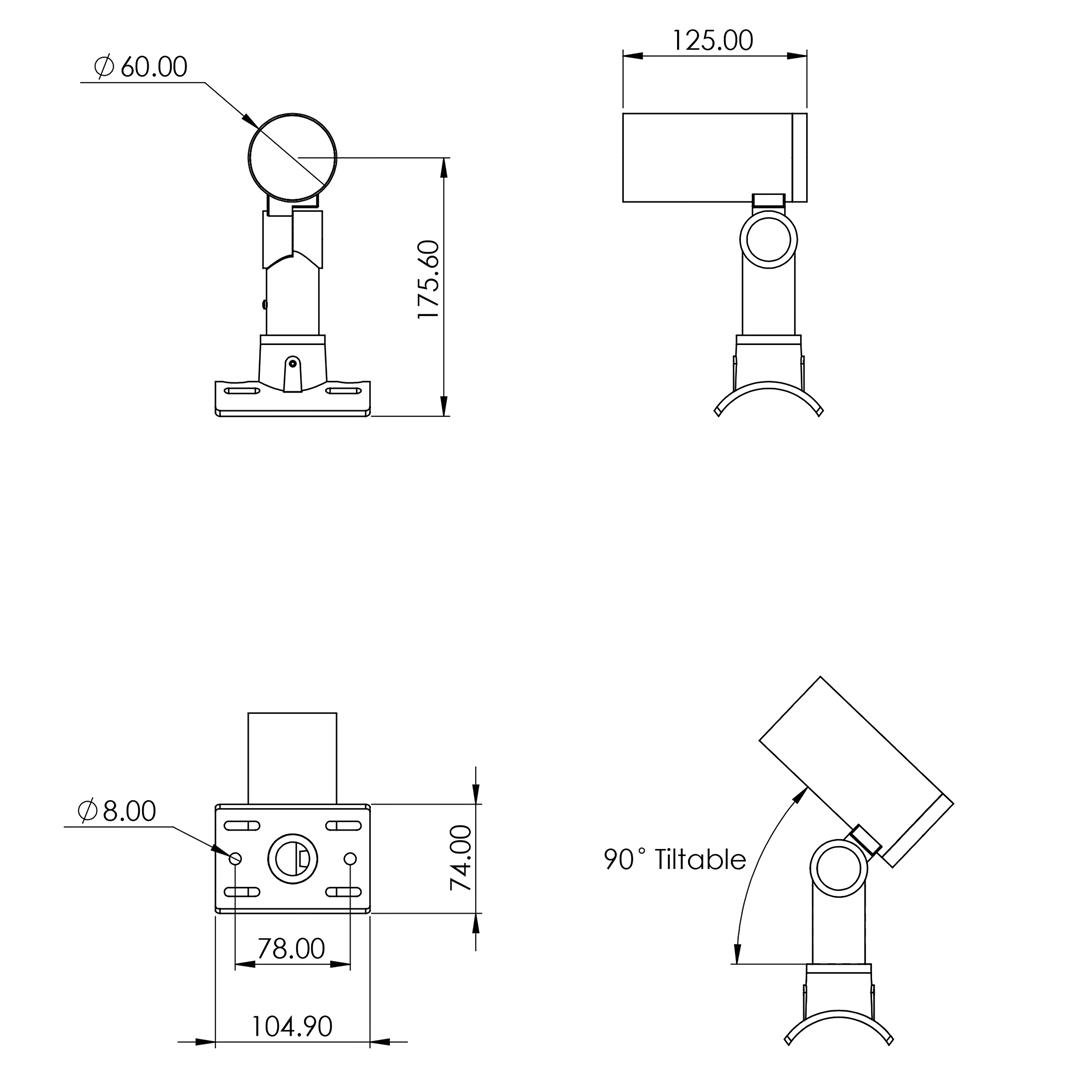

| Ø60X125mm Pole Bracket Suitable For : Pole OD - Ø 80mm |
Swivel
| Swivel Joint For Directional Lighting |
Rotation & Tilt
| Lamp : 350° Rotational + 180° Tiltable
|
Reflector / Lens
| 32° / 51° - Optical grade PC Reflector
26° / 36° - Optical grade PMMA Lens
|
Louvre
| With / Without Honeycomb Louver
|
Depth
| 40mm Deep
|
Glass
| Clear Toughened Glass |
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
| Cable Entry | Single Cable Entry
|
|---|
Power Supply
| Built - IN IP68 potted constant Current power supply unit
|
|---|
IP Rating
| IP65
|
|---|
Weight
| Lamp: 0.8 Kg Pole : 19.1Kg |
|---|
Technical Details
Lamp
| LED
|
| Input Power | 15W
|
| Color Temperature | 3000K
|
| Lumen | (Without mesh 32° / 51°) - 677 / 808 Lm (With Mesh 26° / 36°) - 957 / 615 Lm |
| Efficacy | (Without mesh 32° / 51°) - 45 / 53.86 Lm/W (With Mesh 26° /36° ) - 63.8 / 41 Lm/W |
| Beam Angle | Without mesh - 32° / 51° With Mesh - 26° / 36° |
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 90+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Without mesh - 51°
With Mesh - 36°
Model
| Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle (Degree) | Control | WITH | WITH | Data Sheet | IES File |
| ODPB15W30CC-PB | Jet Black | 15W | 1X15W COB
3000K | 808 LM | WIDE - 51° | CC - Constant Current | PB - Pole Bracket | - Without Mesh |  |  |
| ODPB15W30CC-PB | Jet Black | 15W | 1X15W COB
3000K | 808 LM | WIDE - 51° | CC - Constant Current | PB - Pole Bracket | - Without Mesh |  |  |
| ODPB15W30CC-PB-M | Jet Black | 15W | 1X15W COB
3000K | 615 LM | Medium - 36° | CC - Constant Current | PB - Pole Bracket | M -With Mesh |  |  |
| ODPB15W30CC-PB-M | Jet Black | 15W | 1X15W COB
3000K | 615 LM | Medium - 36° | CC - Constant Current | PB - Pole Bracket | M -With Mesh |  |  |
Without mesh - 32°
With Mesh - 26°
Model
| Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle (Degree) | Control | WITH | WITH | Data Sheet | IES File |
| ODPB15W30CC-PB | Jet Black | 15W | 1X15W COB
3000K | 677 LM | Medium - 32°
| CC - Constant Current | PB - Pole Bracket | - Without Mesh | | |
| ODPB15W30CC-PB | Jet Black | 15W | 1X15W COB
3000K | 677 LM | Medium - 32°
| CC - Constant Current | PB - Pole Bracket | - Without Mesh | | |
| ODPB15W30CC-PB-M | Jet Black | 15W | 1X15W COB
3000K | 957 LM | Medium - 26° | CC - Constant Current | PB - Pole Bracket | M -With Mesh | | |
| ODPB15W30CC-PB-M | Jet Black | 15W | 1X15W COB
3000K | 957 LM | Medium - 26° | CC - Constant Current | PB - Pole Bracket | M -With Mesh | | |
Accessories
*M685 IP68 connector
