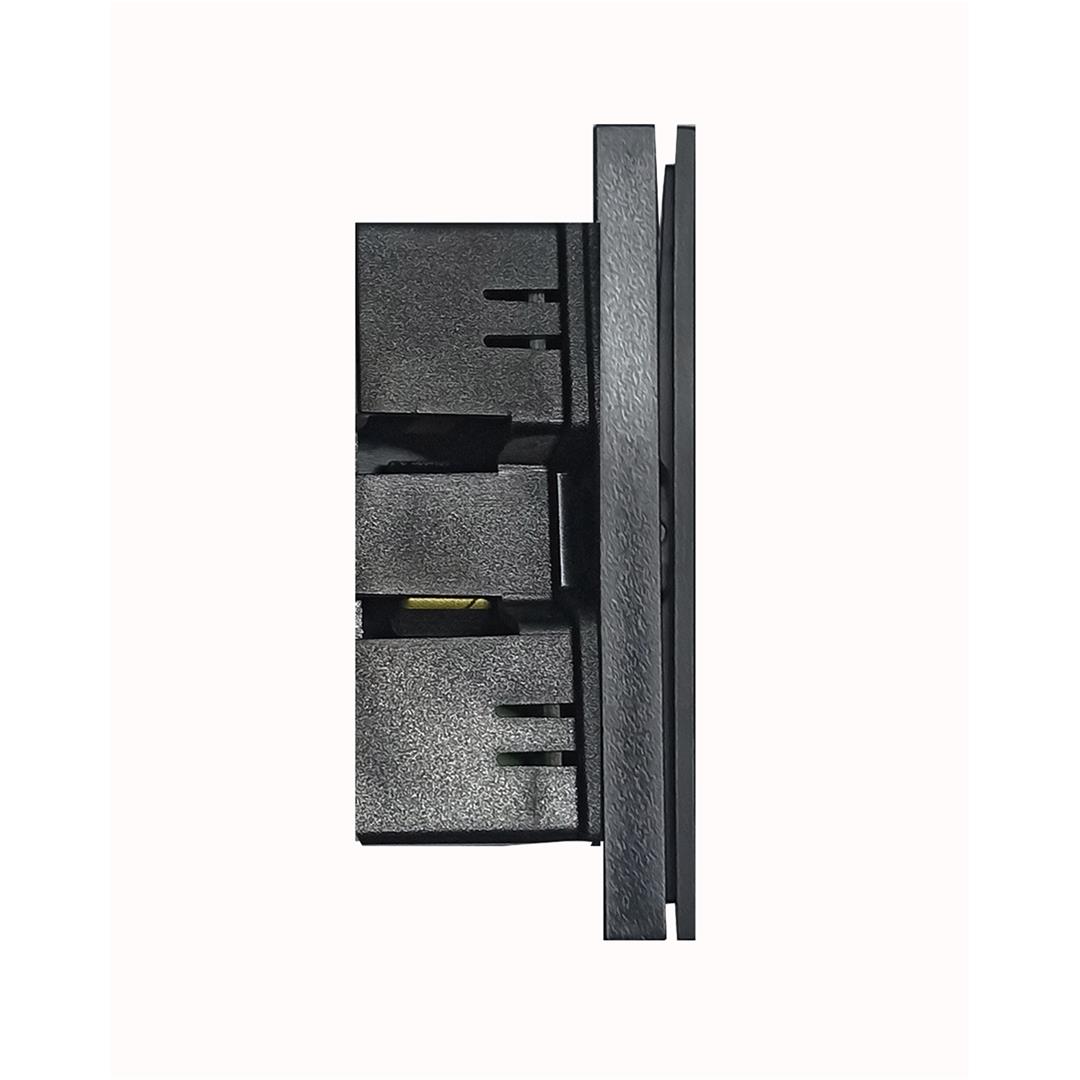

Buy - Fan Controller Switch Online India

Select Qty:

* Shipping charges additional to be paid at the time of receiving delivery. To know more chat with us.

-DALI DT8 compatible.

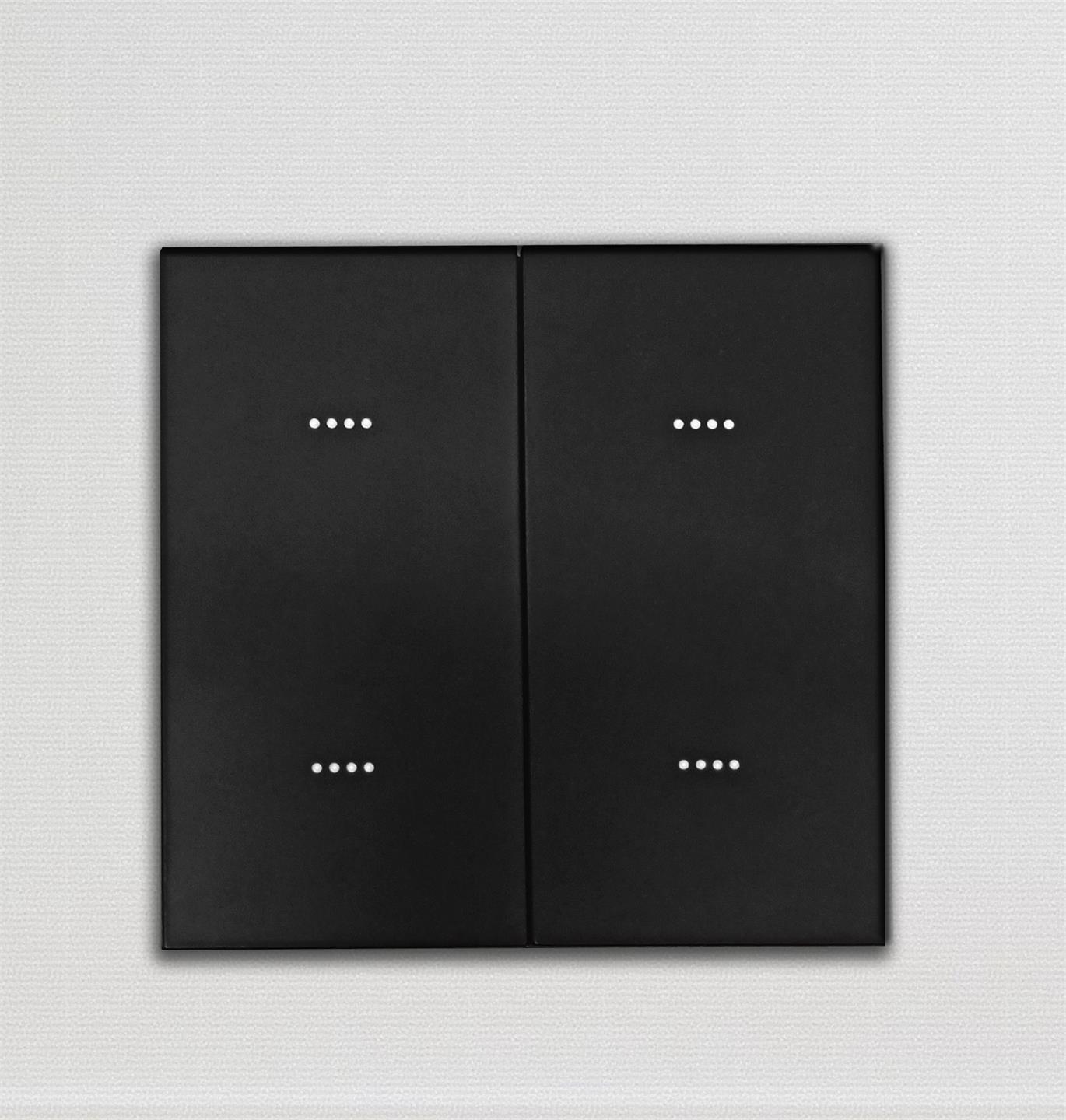

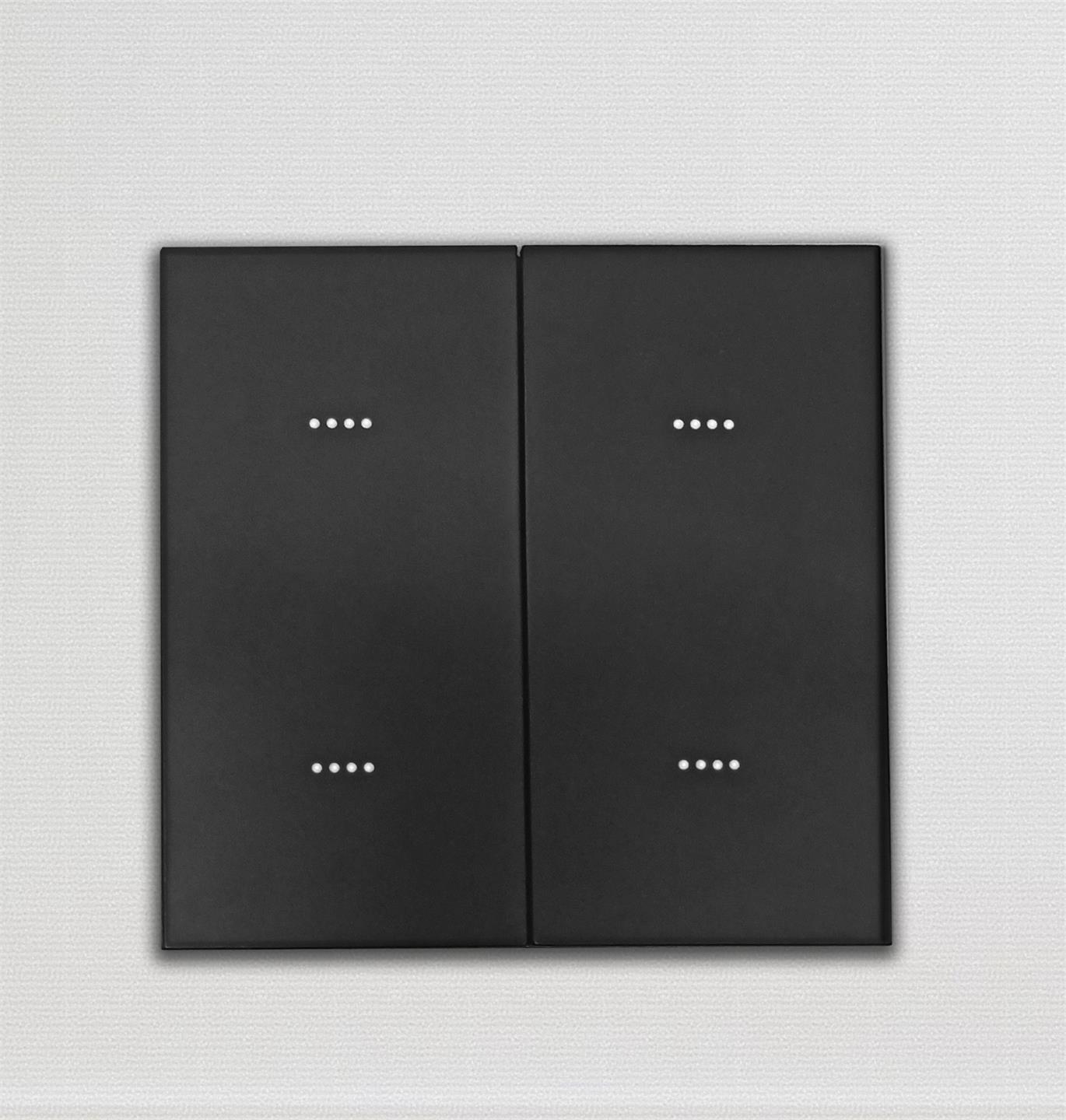

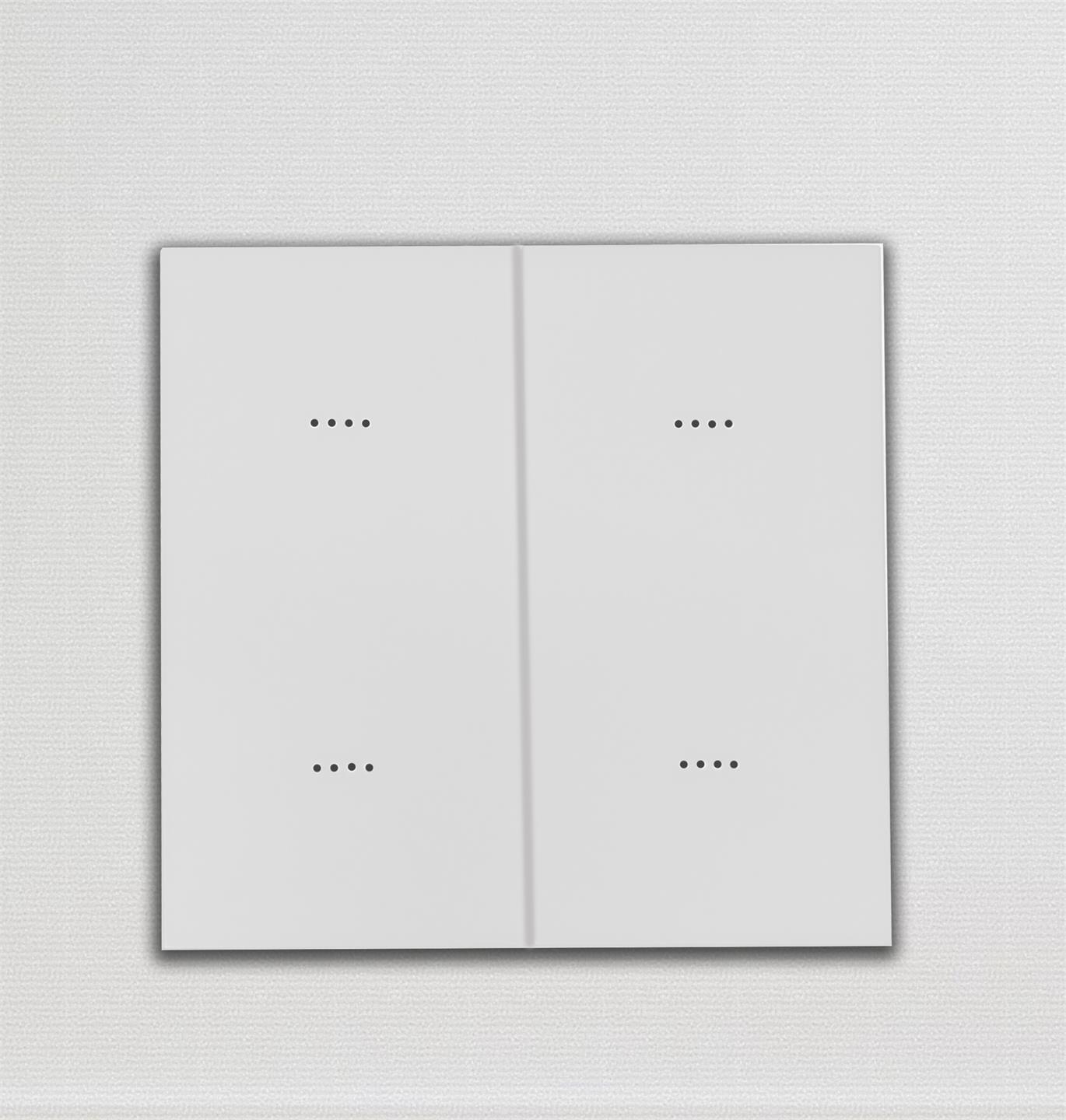

-4-Buttons Wall Scene Controller.

-Support IEEE802.11b/g/n Wi-Fi Standards.

-Fully programmable through Android application.

-Basic Control ON/OFF.

-Backlit indication for locating buttons in the dark.

-Stylish, innovative, modular and compact design.

-Short Circuit Protection through on device fuse implementation.

AC Input:	Universal Range 90-264VAC, 47-63 Hz/ 75mA(Max)
Inrush Current:	20 A max. (115 VAC), 50 A max. (230 VAC)
Power Consumption:	Less than 0.5W(Average), 1W(Max)

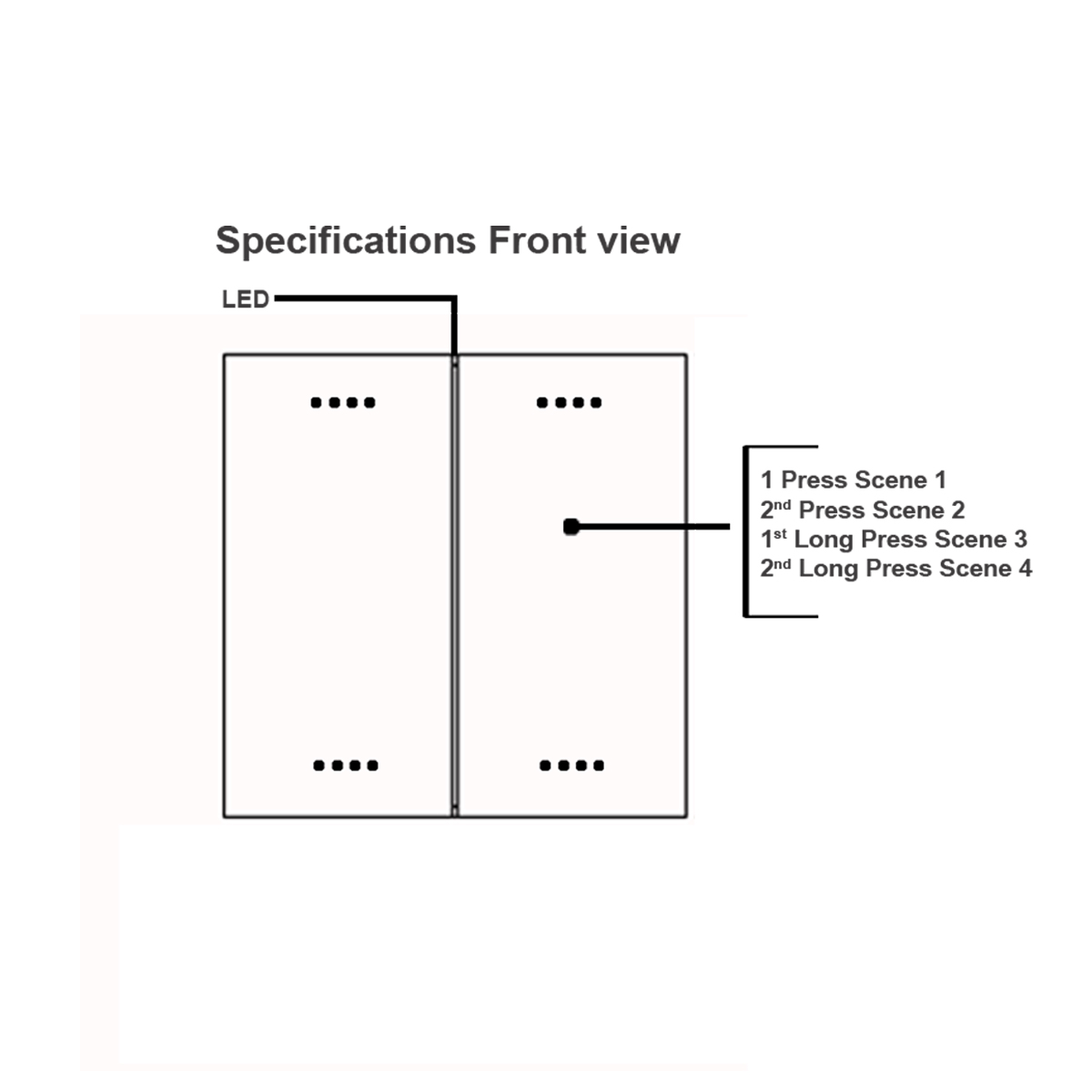

Local Buttons/ Channel:	Button-1 to Button-4 for invoking Programmed Scene controls manually

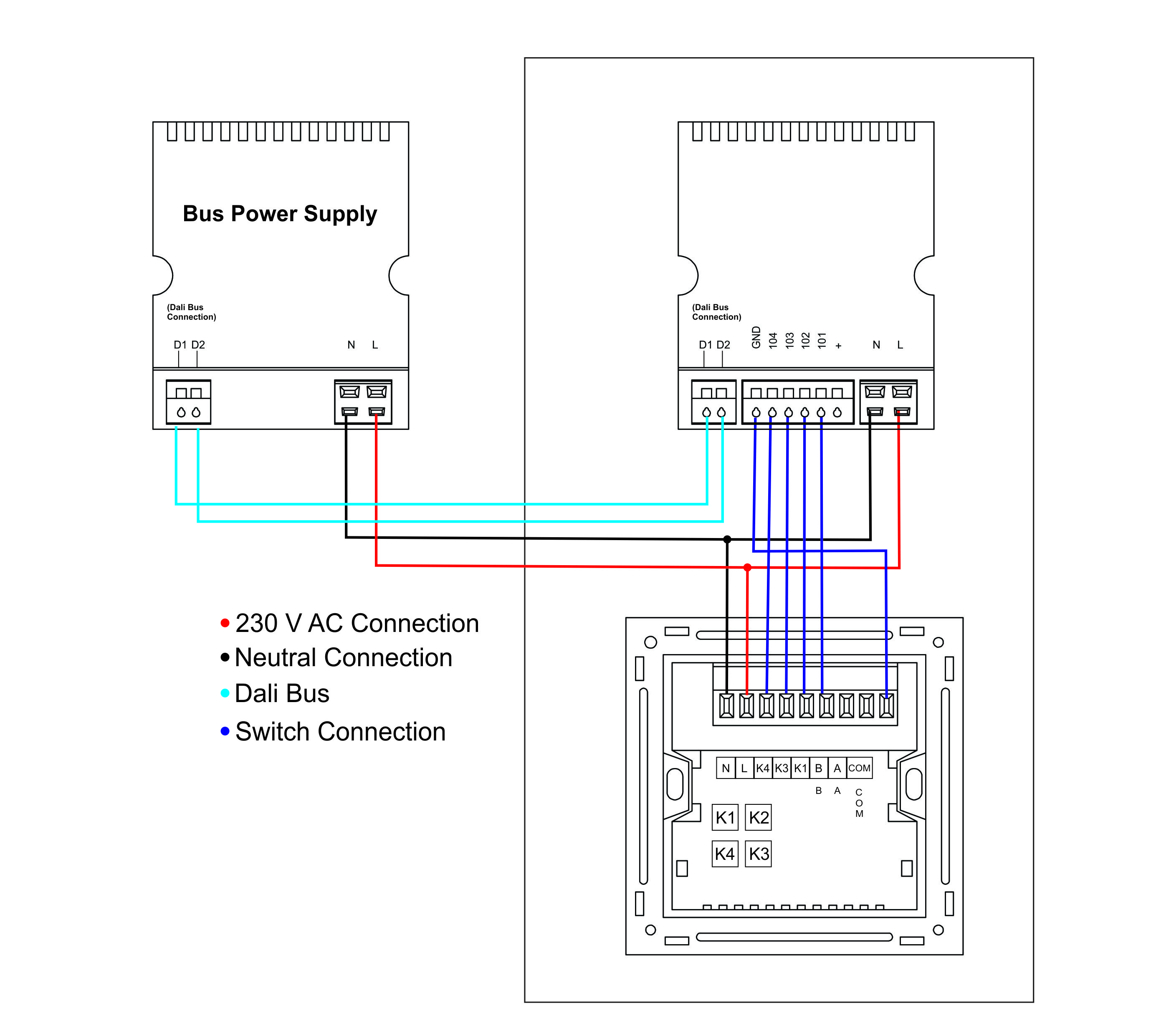

Control and Configuration:	WiFi and 2-Wire DALI-Bus for advanced control & configuration
Operating Temperature:	-10°C…+70°C
Humidity:	95% RH y, non-condensing
Usage:	Indoor/Dry location use only
Mounting/Fittings:	front side insertion into support frame

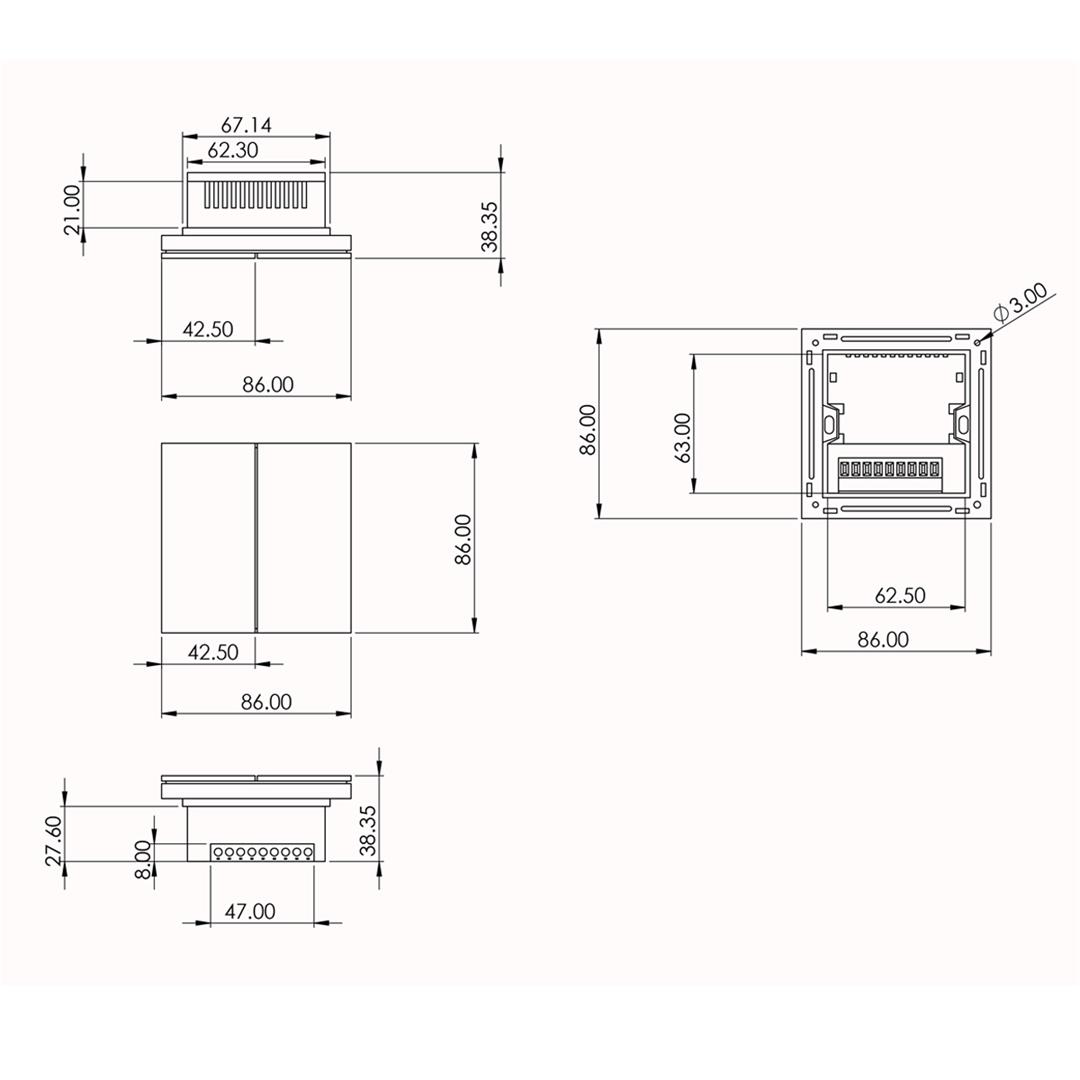

Dimension/Weight:	00(W) x 00(H) x 00(D) (in mm)/ 000gm

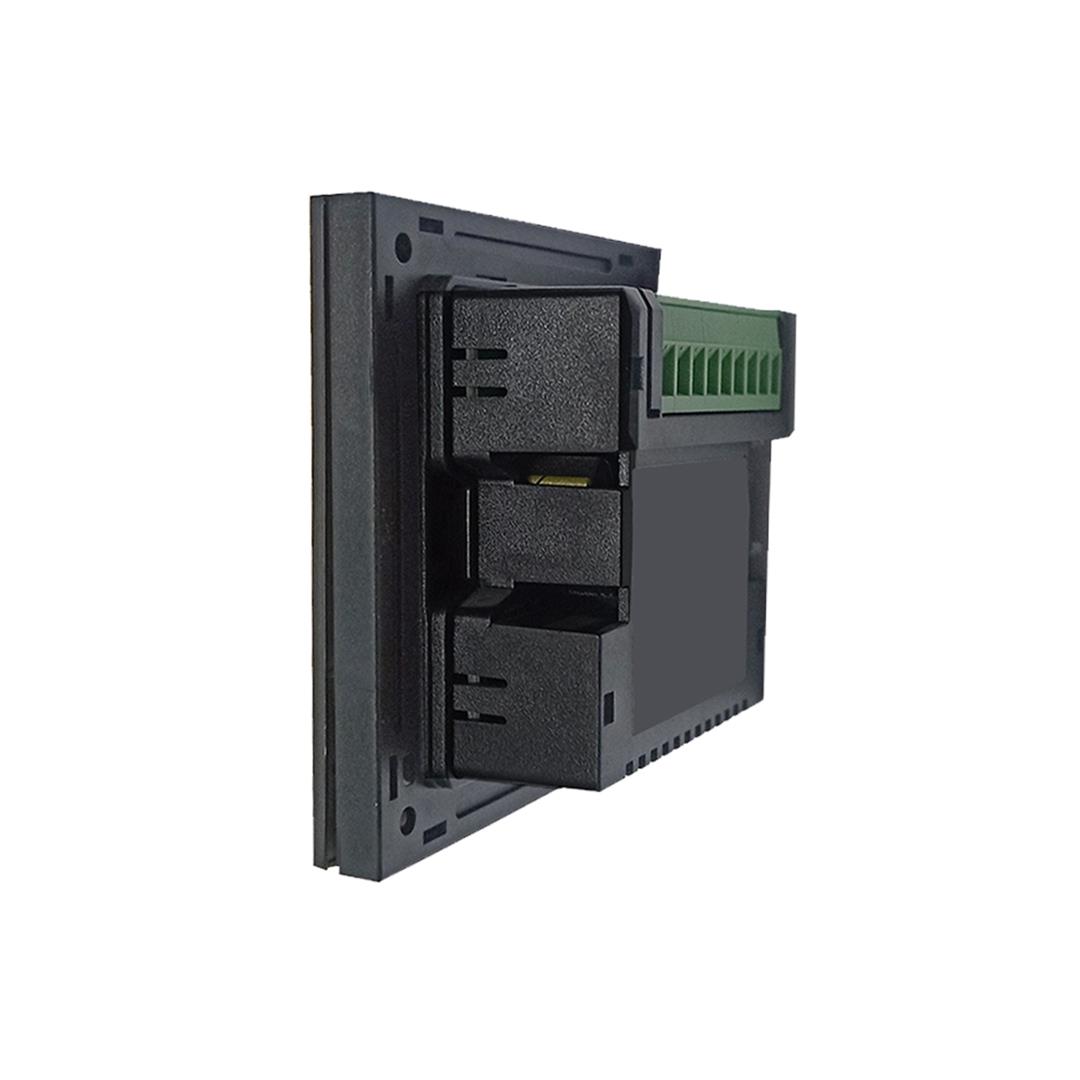

Connector Type:	Screwless Type, COLOR Coded

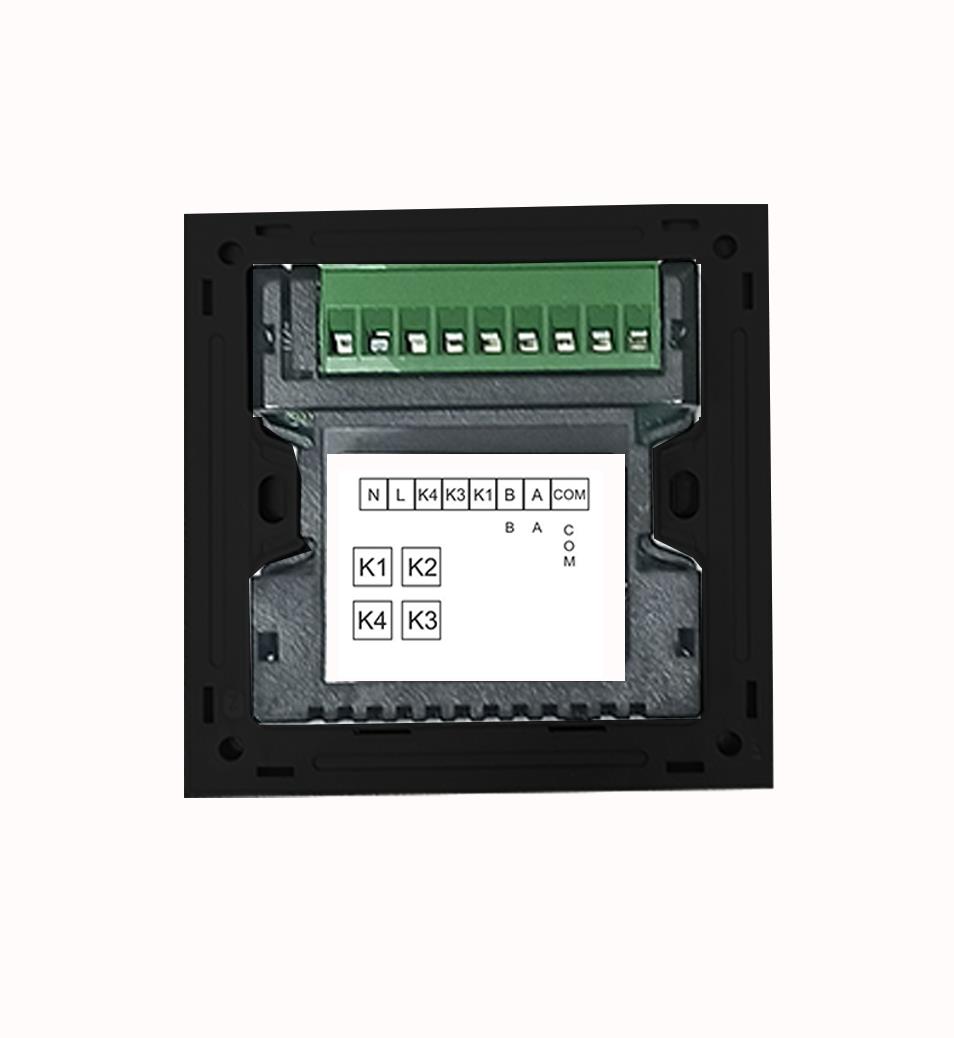

Connector Contacts:	LIVE, NEUTRAL, SL-Bus1, SL-Bus2
Protection:	4A Fast blowing fuse Approvals ISI, CE (in progress
Approvals:	ISI, CE (in progress)
