Description
- Magnetic Model Picture Light with Magnetic Model picture light Optic
- Die Cast Aluminum Housing
- Extruded Aluminum Heatsink for Heat Dissipation
- Pre-treated Powder Coating for corrosion resistance
- Spring plungers used for easy lock ink & Unlocking From Track
- 350° Rotational + 90° Tiltable
- Mounting: Magnetic Track

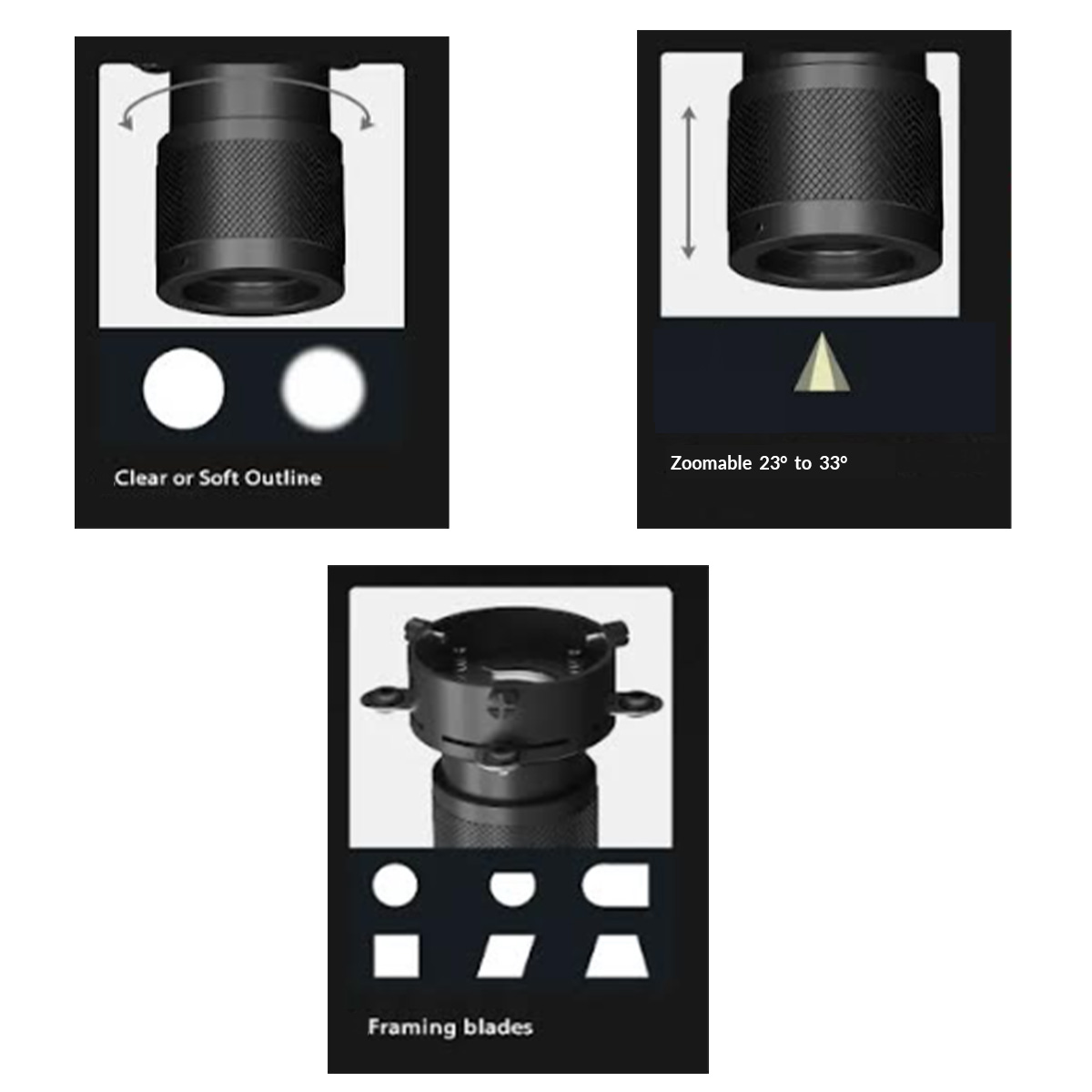

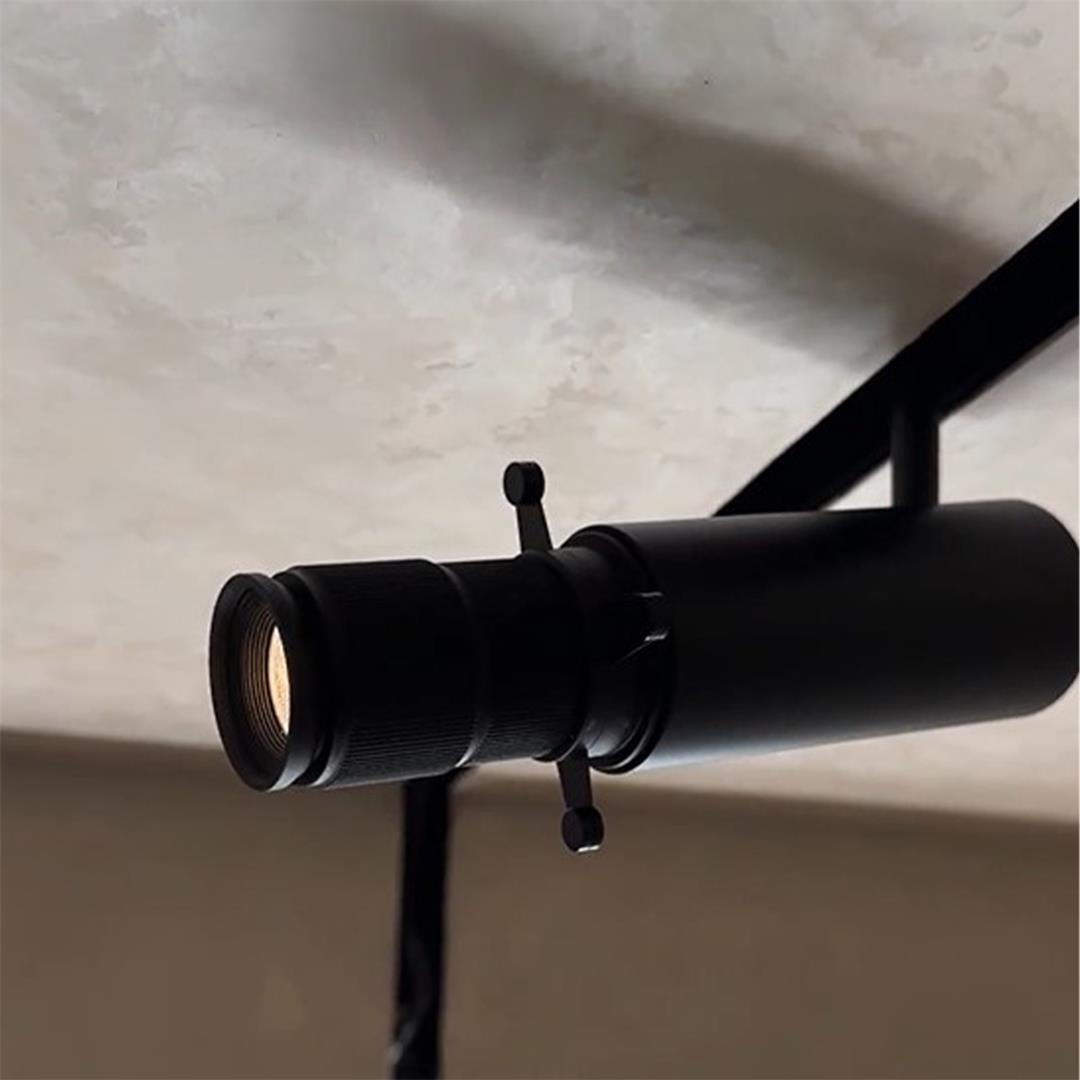

Detachable Lens with 3 Functions within

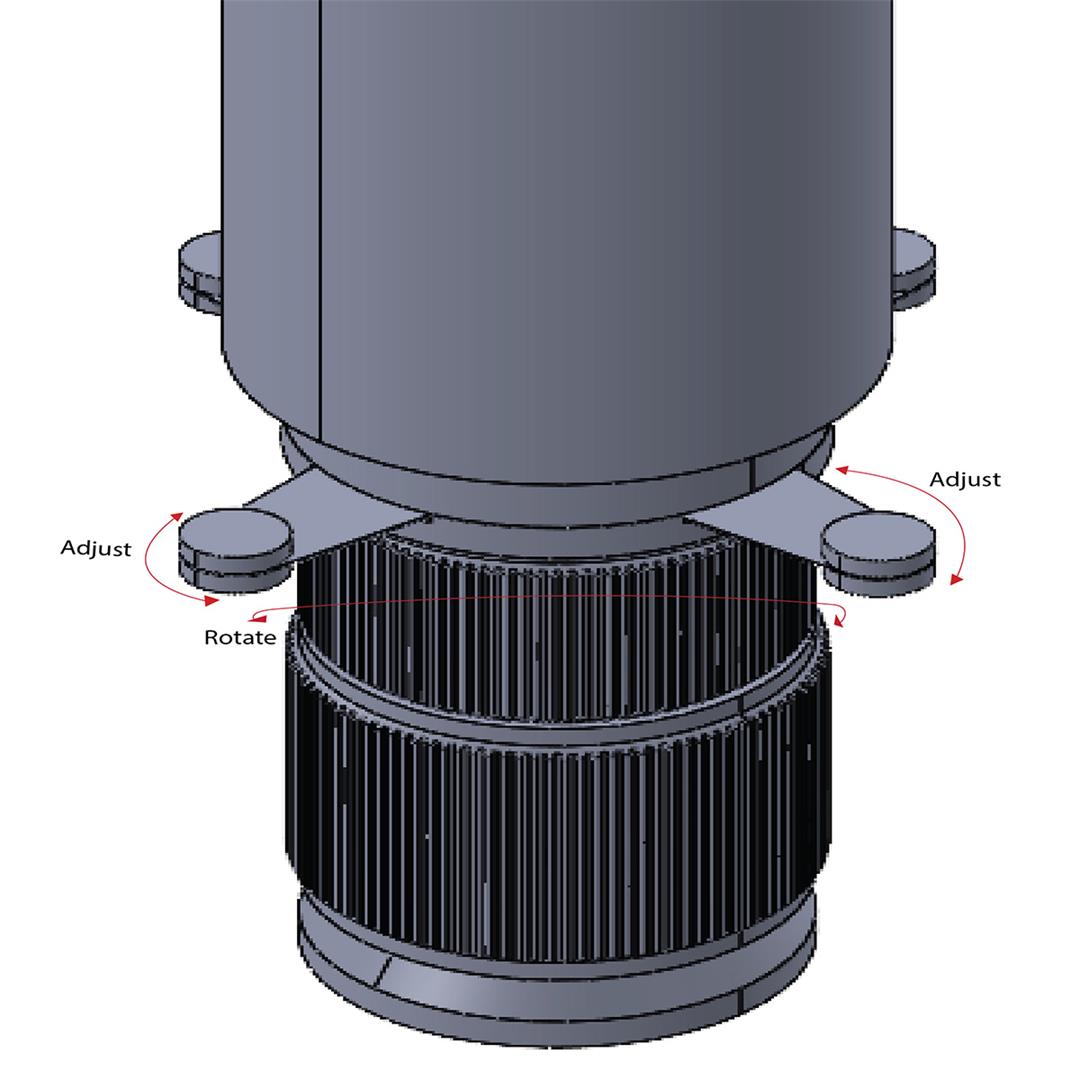

1.Manually Adjustable for Varied Beam angle For Precise Focus of light on Subject
2.4 Shaping Flaps within Lens For square, rectangular or variously irregular beam by maneuvering the flaps for shaping light beam as per shape of object.
3.Sharpening Lens in front For Sharpened Light border For sharp Focus of light on object
Mechanical Details
Model
| Magnetic Model Picture Light |
Material
| Aluminum |
Finish
| Black |

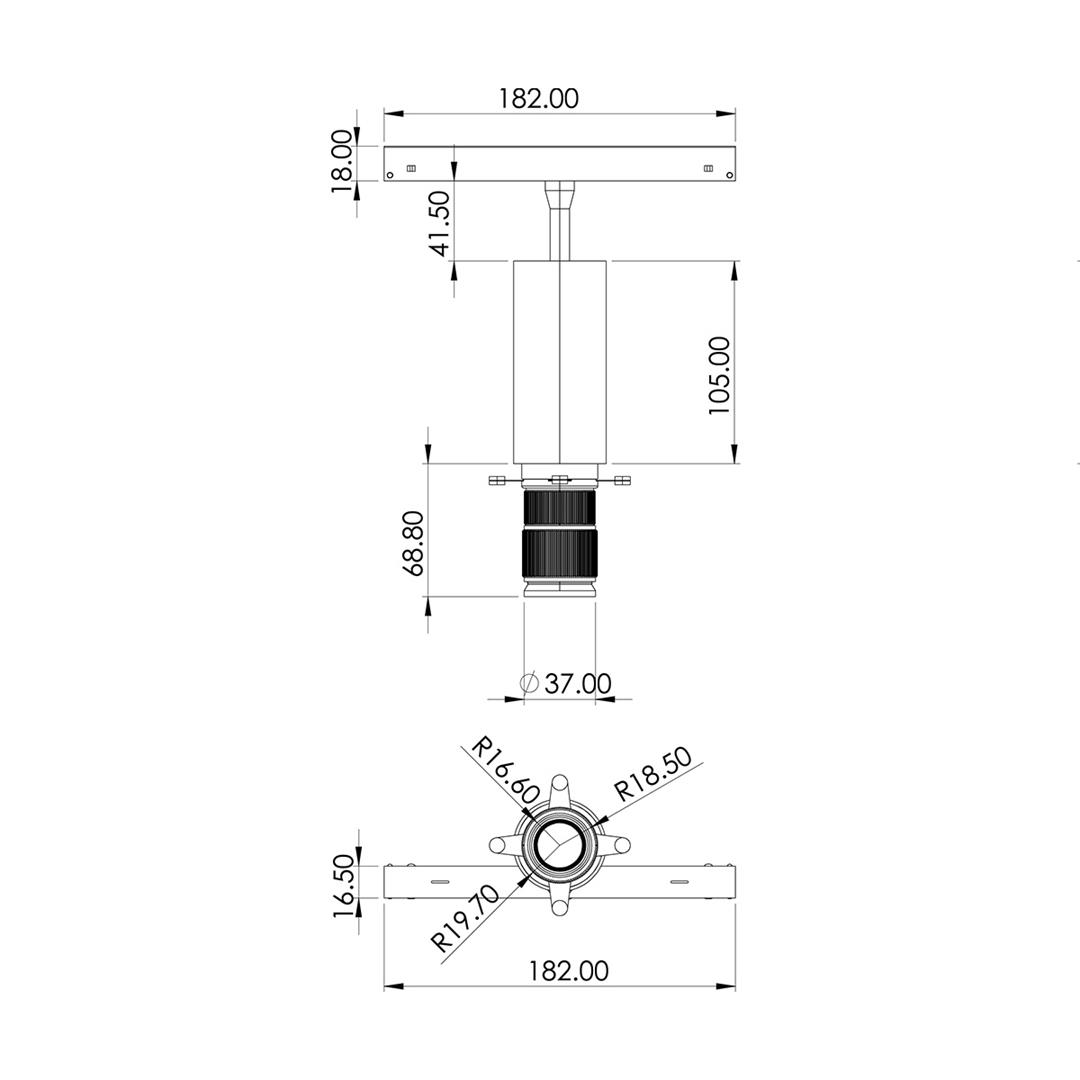

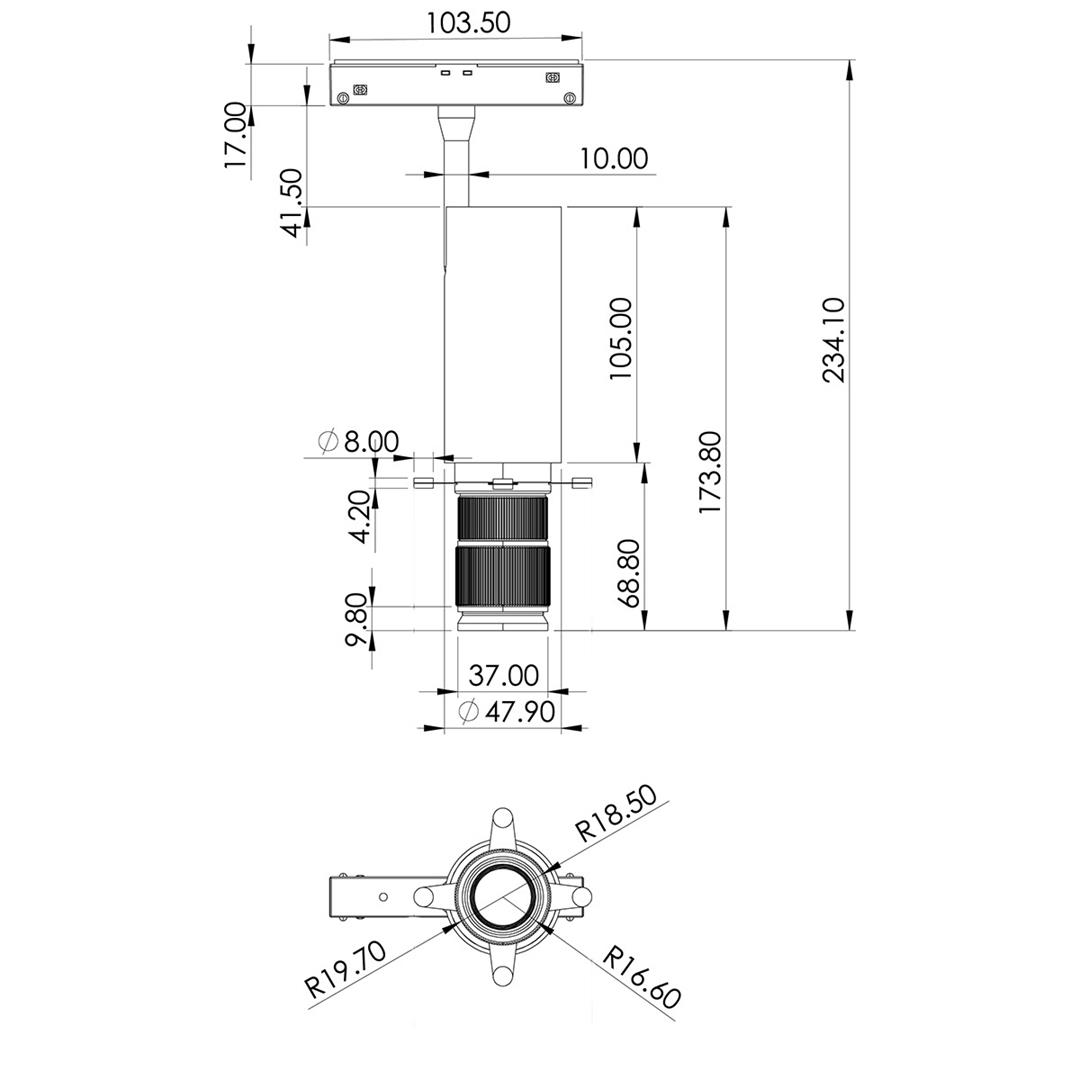

Size
| Ø47X H-105mm |
| (WITH LENS AT 33° - Ø47X H-174mm ) |
| (WITH LENS AT 23° - Ø47X H-194mm ) |
Rotation and Tiltable
| 350° Rotational + 90° Tiltable |
Lens
| Detachable lens (Manually Adjustable for Varied Beam angle ) |
Flaps
| 4 Flaps within Lens For Different Shape Beam Formation |
O Ring
| Silicone O Ring for Tight Holding Of Lens With Housing |
Fasteners
| SS 304 grade fasteners |
Plungers
| Spring Plungers for Locking For of lens with housing |
Mounting
| Magnetic Track |
Technical Details
Lamp
| COB |
Input Power
| 10W |
Color Temperature
| 2700K/3000K / 4000K / 5000K / Dual CCT 2700-5000K |
Light O/p | 23° - 459/477/482/511 Lm |
| 33° - 381 / 397/401/ 421 lm |
Efficacy | 23° - 46/47/48/51 Lm/W |
| 33° - 38 / 39 / 40 / 42 Lm/W |
| CRI | 90+ |
| MacAdam | <3 |
| Input Voltage | 48VDC |
| Beam Angle | 23° to 33° (Adjustable Lens ) |
| Driving System | Constant Voltage |
| Dimming Type | DALI Dimming / Bluetooth Dimming |
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
| Safety Class | No |
| System Warranty | 1 Year |
Round
Rectangle

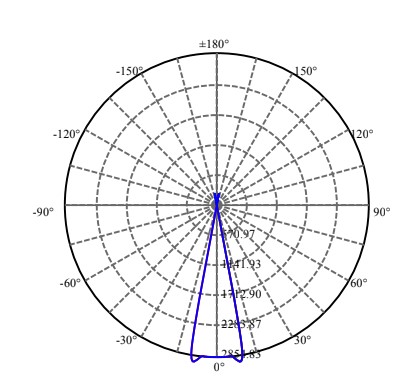

Polars
