Description

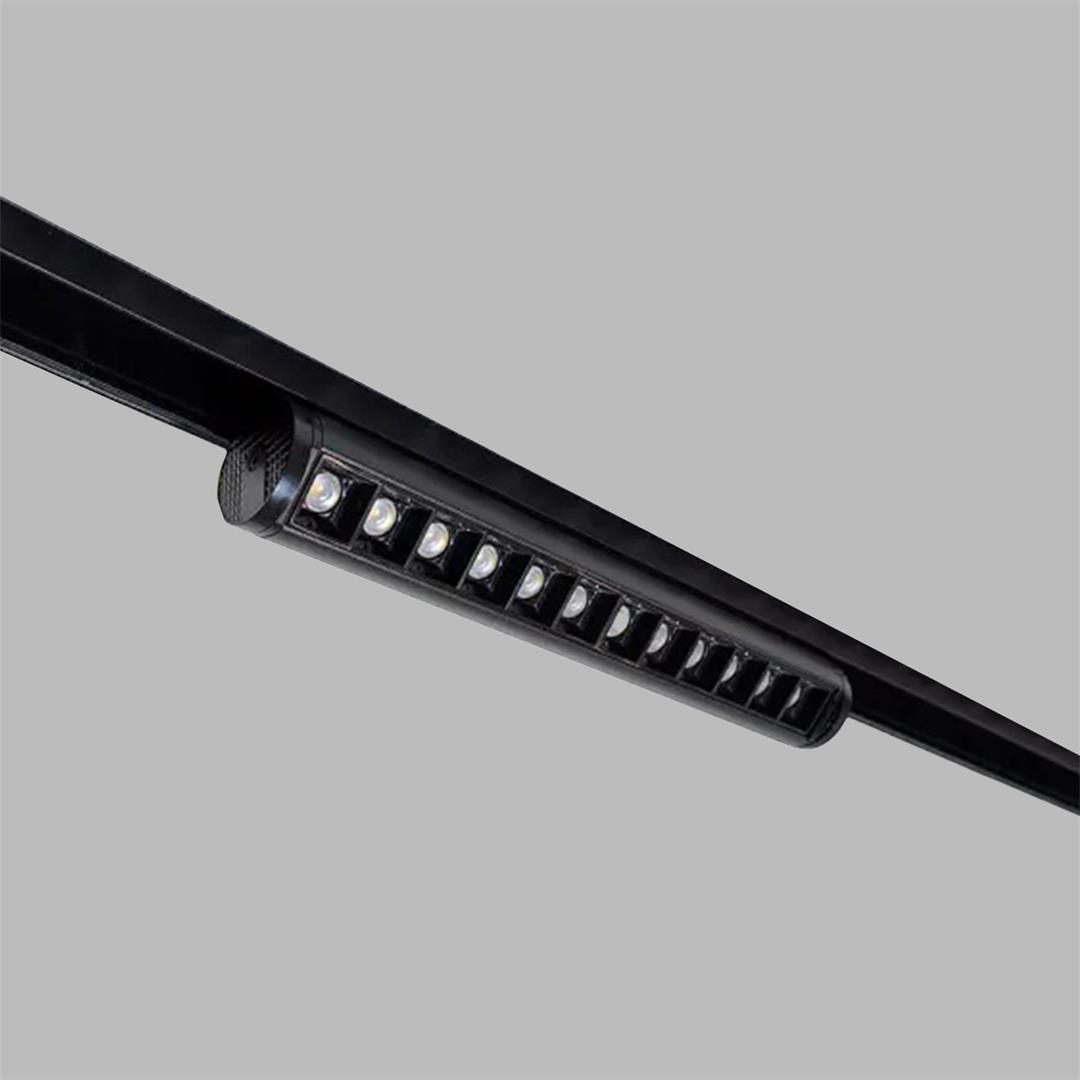

- Super Slim Magnetic Model Linear Tiltable Light
- Die Cast Aluminium Housing
- Pre - treated Powder Coating for corrosion resistance
- MCPCB Used For Better Heat Dissipation
- SS304 Grade External & Internal Fasteners used for corrosion resistance
- Spring plungers used for easy lockink & Unlocking on Track
- +90° to -90 ° Tiltable
USP
*Only 23mm Diameter Sleek Tiltable Portion Of Housing
*Sleek 15mm Lamp Height Visible above Track But Completely Tiltable Till 90° Without Light Hitting Track & Focusing Subject
*Black Antiglare Secondary Optics Used To Avoid Glare & Spillages of Light
*Easy Shifting of Positions Of Lamp Within Magnetic Track
Mechanical Details
| Housing Material | Aluminum |
|---|
| Finish | Black |

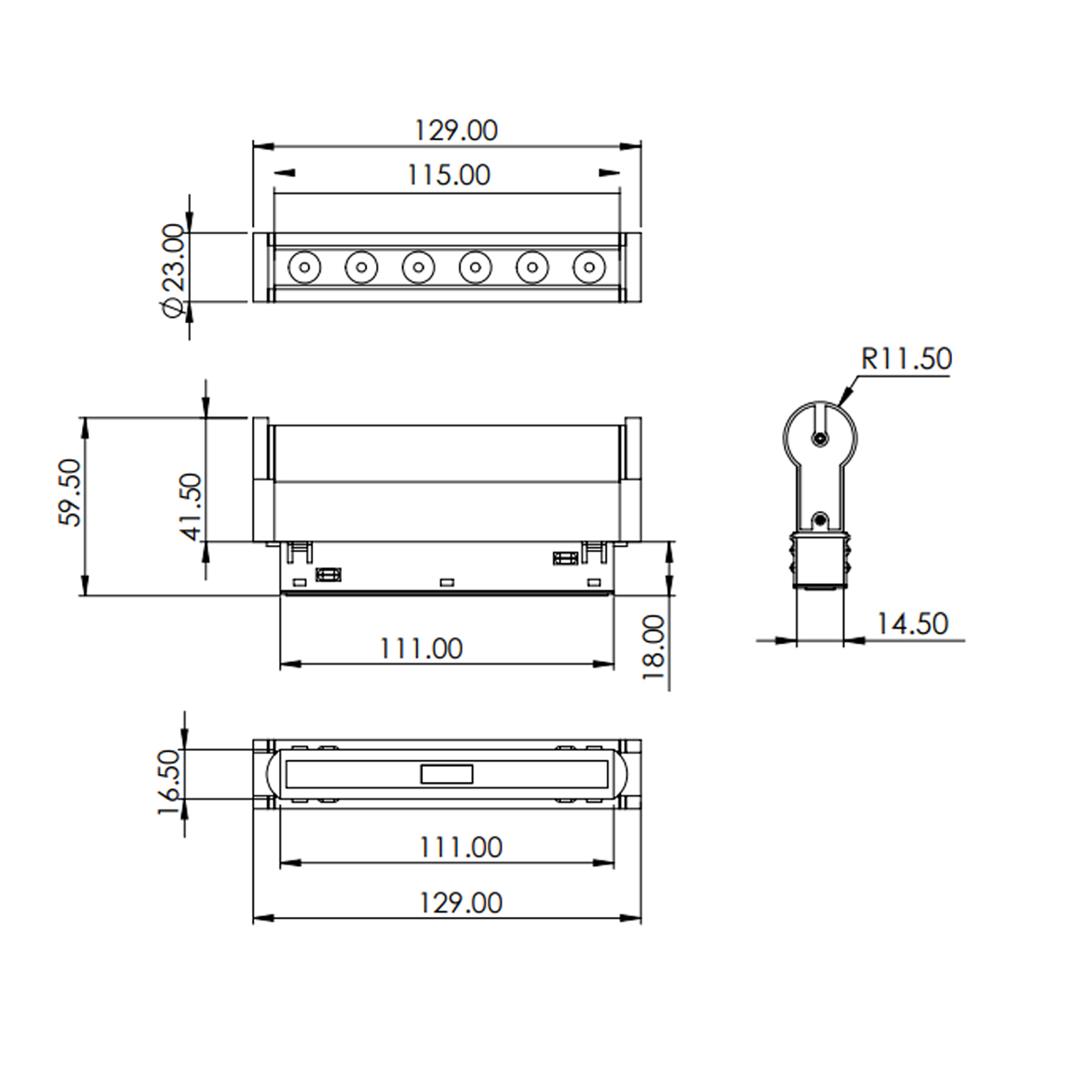

| Size | 6W- L129XW23XH59.50 (Tiltable Part - ø23mm)

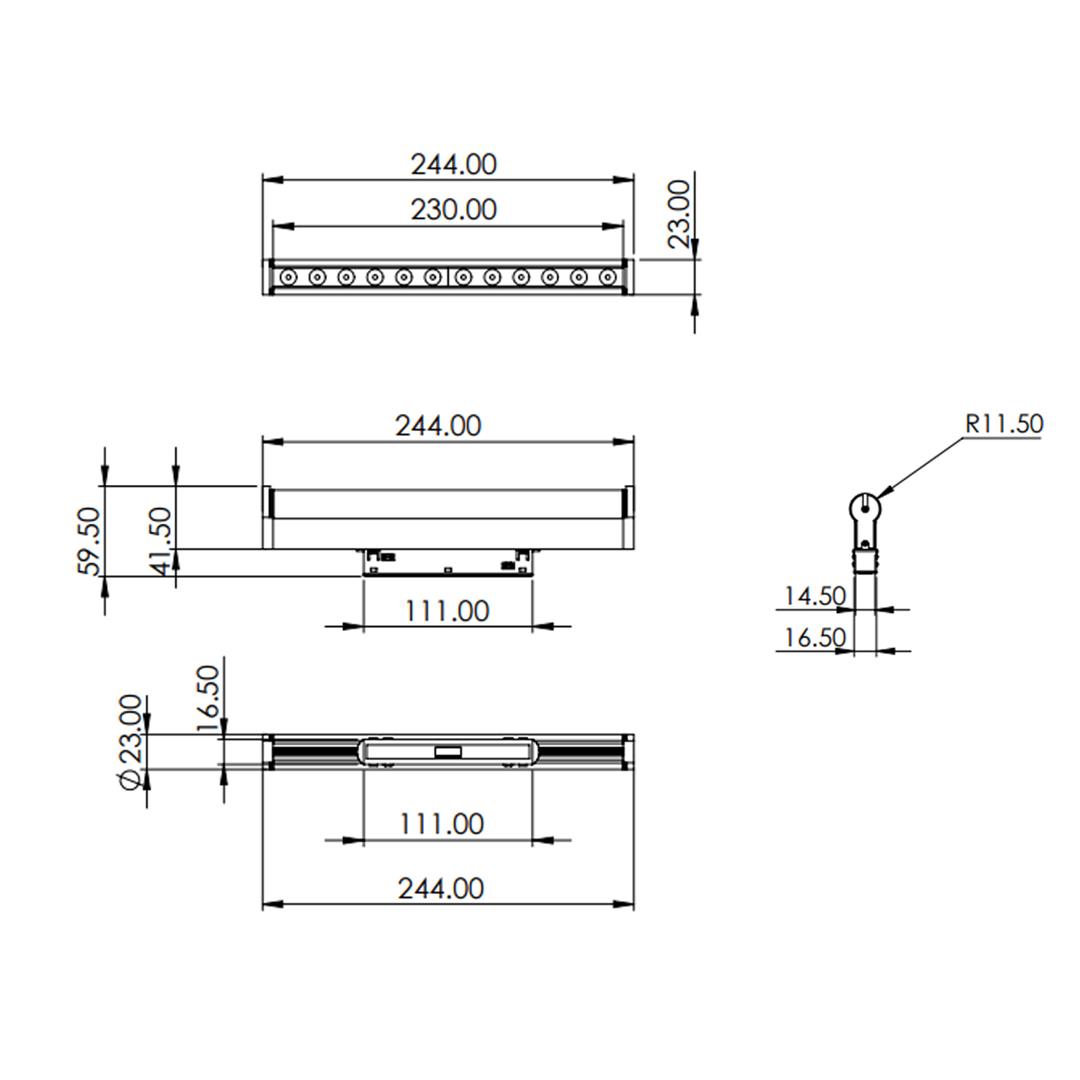

12W- L244XW23XH59.50 (Tiltable Part - ø23mm)
|
|---|
Rotation and Tilt
| +90° to -90° Tiltable
|
|---|
Secondary Reflector
| Black PC Anti Glare Reflector
|
Primary Lens
| Polycarbonate Lens
|
|---|
Mounting
| Magnetic Track
|
| Weight | 6W- 0.1Kg
12W- 0.18Kg
|
|---|
Technical Details
| Light Source | LED |
| Input Power | 6W/ 12W
|
| Color Temperature | 2700K/3000K / 4000K / 6000K / Dual CCT 2700-5000K
|
| Lumen | 6W: 424/ 442/ 460/ 478 lm
12W: 850/ 885/920/957 lm |
| Efficacy | 6W: 71/ 74/ 77/ 80 Lm/W
12W: 71/ 74/ 77/ 80 Lm/W
|
| Beam Angle | 25°
|
| Input Voltage | 48VDC
|
| Driving System | Constant Voltage
|
| Dimming Type | R.F Dimming / DALI Dimming
|
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| System Warranty | 1 Year |
|---|

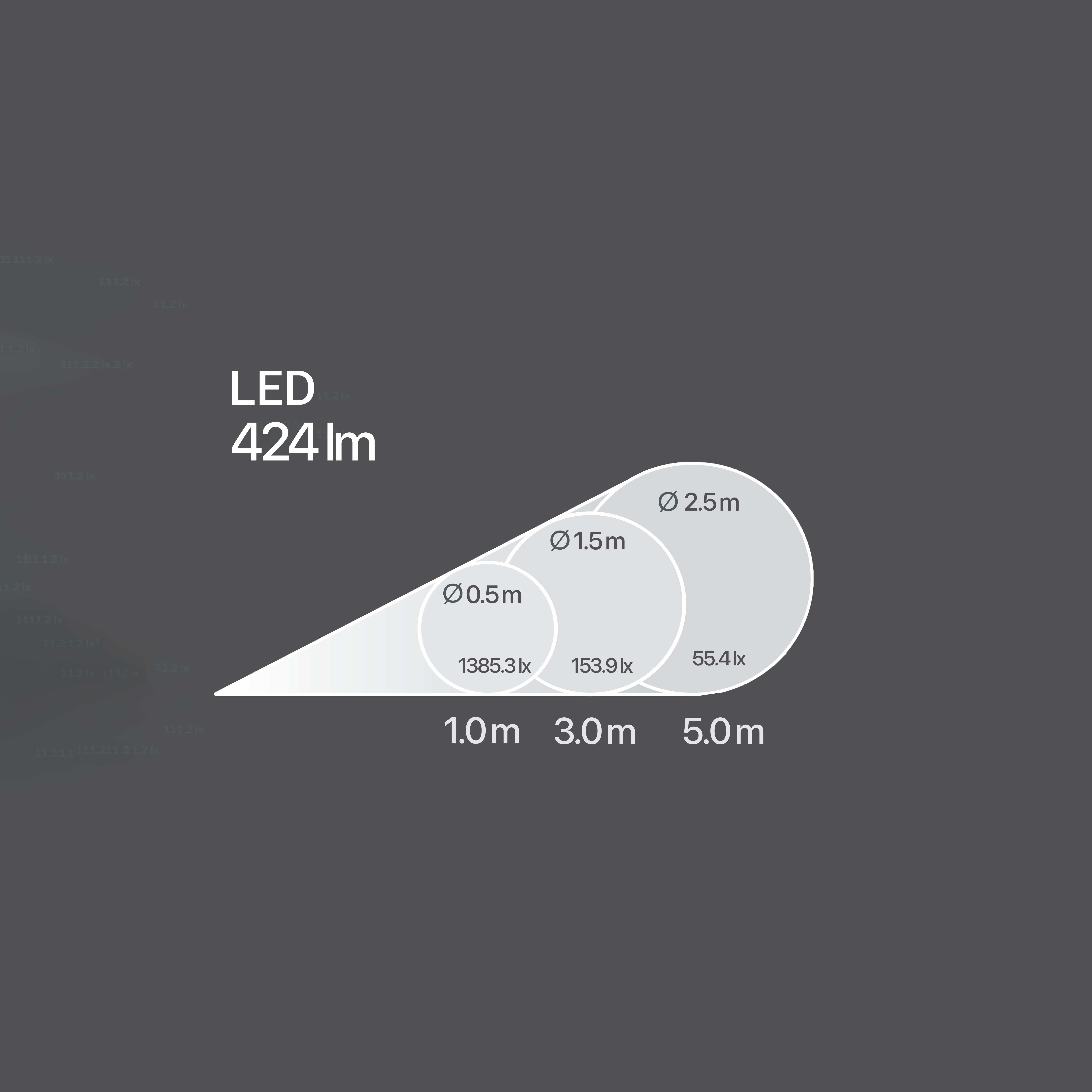

Beam Angle - 25°

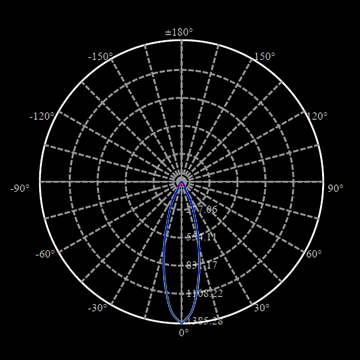

6W-2700K

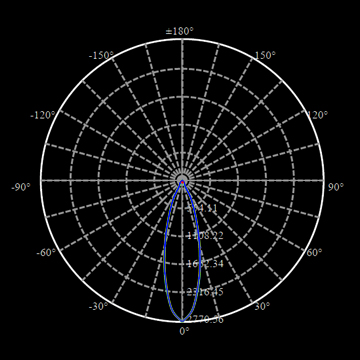

12W-2700K
Downloads
6W-2700K
12W- 2700K
6W-2700K
12W-2700K
| Model | Watt | Driving System | Beam Angle | Color Temp |
SSMMLT0627B | 06 Watt | RF - B | 25°
| 6X1W 2700K
|
SSMMLT0630B | 06 Watt | RF - B
| 25°
| 6X1W 3000K |
SSMMLT0640B
| 06 Watt | RF - B
| 25°
| 6X1W 4000K
|
SSMMLT0660B
| 06 Watt | RF - B
| 25°
| 6X1W 6000K
|
SSMMLT0625B
| 06 Watt | RF - B
| 25°
| 6X1W 2700-6000K
|
SSMMLT0627I
| 06 Watt | DALI DIMING - I
| 25°
| 6X1W 2700K
|
SSMMLT0630I
| 06 Watt | DALI DIMING - I
| 25°
| 6X1W 3000K
|
SSMMLT0640I
| 06 Watt | DALI DIMING - I
| 25°
| 6X1W 4000K
|
SSMMLT0660I
| 06 Watt | DALI DIMING - I
| 25°
| 6X1W 6000K
|
SSMMLT0625I
| 06 Watt | DALI DIMING - I
| 25°
| 6X1W 2700-6000K
|
SSMMLT1227B
| 12 Watt | RF - B
| 25°
| 12X1W 2700K
|
SSMMLT1230B
| 12 Watt | RF - B
| 25°
| 12X1W 3000K
|
SSMMLT1240B
| 12 Watt | RF - B
| 25°
| 12X1W 4000K
|
SSMMLT1260B
| 12 Watt | RF - B
| 25°
| 12X1W 6000K
|
SSMMLT1225B
| 12 Watt | RF - B
| 25°
| 12X1W 2700-6000K
|
SSMMLT1227I
| 12 Watt | DALI DIMING - I
| 25°
| 12X1W 2700K
|
SSMMLT1230I
| 12 Watt | DALI DIMING - I
| 25°
| 12X1W 3000K
|
SSMMLT1240I
| 12 Watt | DALI DIMING - I
| 25°
| 12X1W 4000K
|
SSMMLT1260I
| 12 Watt | DALI DIMING - I
| 25°
| 12X1W 6000K
|
SSMMLT1225I
| 12 Watt | DALI DIMING - I
| 25°
| 12X1W 2700-6000K
|
