Deep Recessed (DRL) – 08W / 12W

Deep Recessed (DRL) – 08W / 12W

Lens Angle -37°/ 50°
1,073
Product Code : DRLR
Availability:
Watt
Trim
Beam Angle
Color Temp
Driving System
Select Qty:
Add to Wish List

* Shipping charges additional to be paid at the time of receiving delivery. To know more chat with us.

Description

-Cold Forged Aluminum Heat Sink

-Optical Grade PMMA Lens

-Metal Spinning Aluminum Trim

-High Torsion Spring used

-Mounting: Snap-in cutout in false ceiling

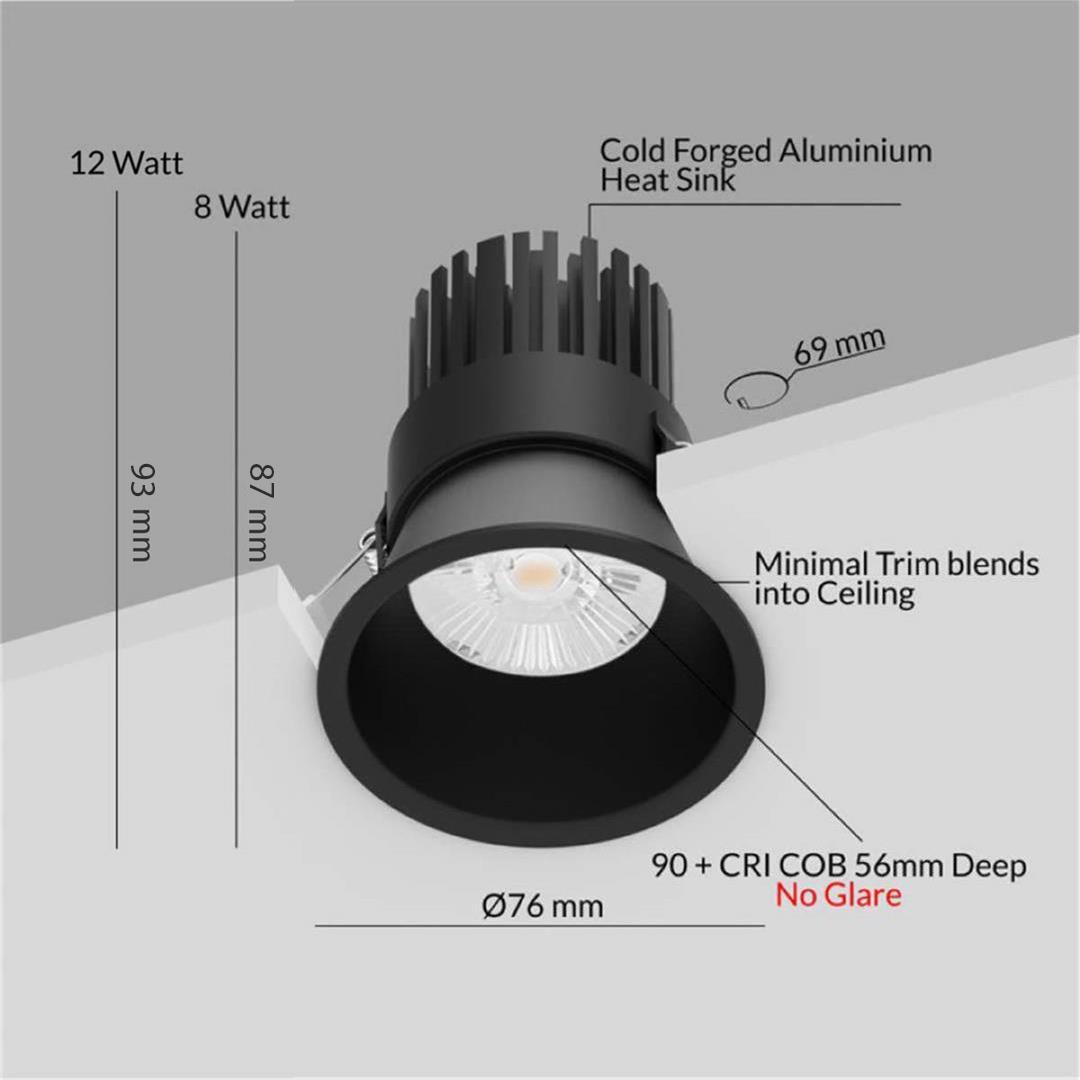

DRLR-M

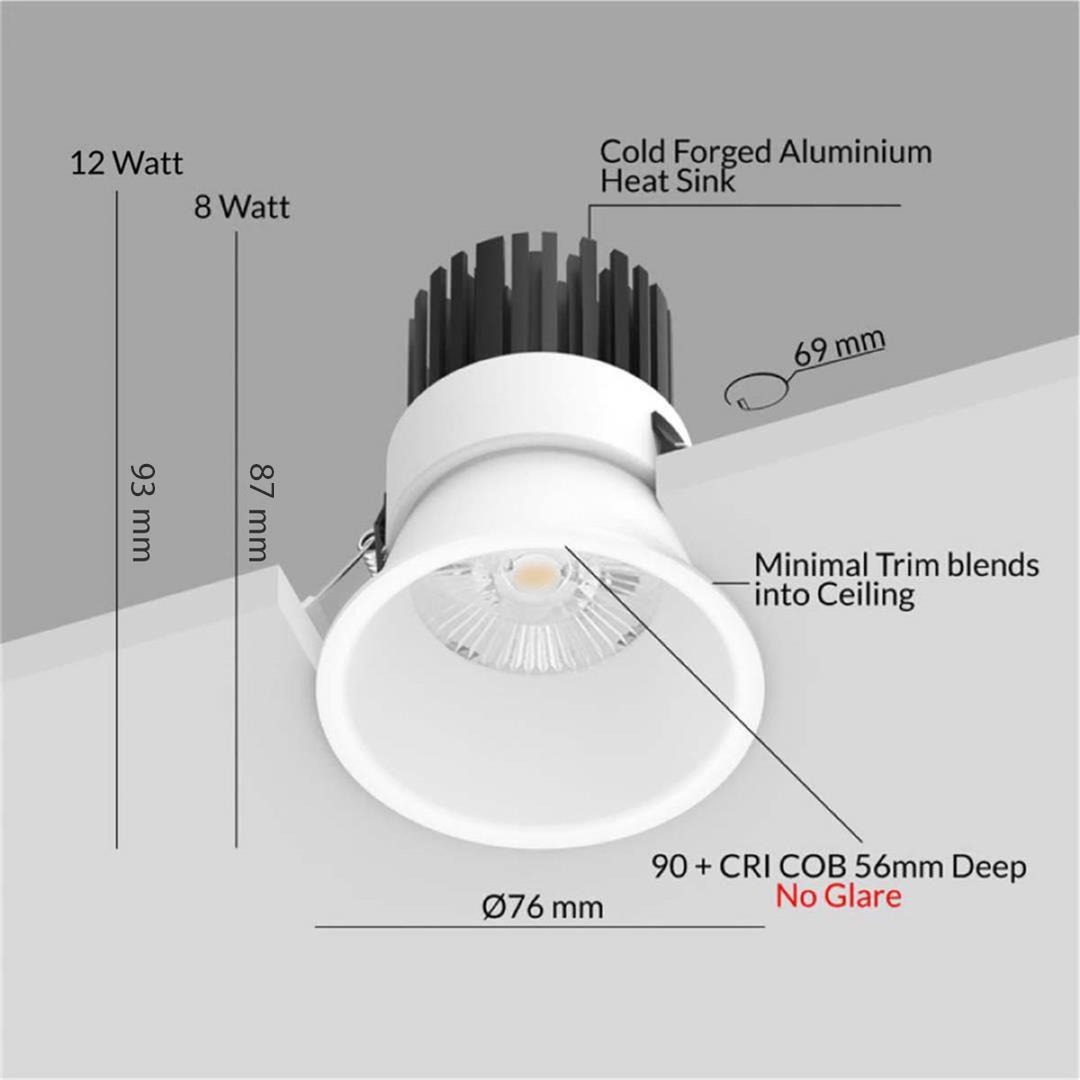

DRLR-W



Deep Recessed

Low Glare

Cutout Size
ø69
Trim
White, Black, Rose Gold, Two Color
Power
08 Watt / 12 Watt
Heat Sink
Cold Forged Aluminum Heat Sink
Beam Angle
37°/ 50°
Color Temperature
6000K,5000K,4000K,3000K,2700K, 2700K - 5000K (Dual Color)
CRI90+
System Warranty
1 Year




ModelColorWattBeam AngleColor TempLumen
DRLWhite 08 WattWide - 50°
2700K698 lm
DRLWhite
08 Watt
Wide - 50°
3000K
727 lm
DRLWhite
08 Watt
Wide - 50°
4000K734 lm
DRLWhite
08 WattWide - 50°
5000K771 lm
DRLWhite
08 Watt
Wide - 50°
6000k800 lm
DRLBlack 08  Watt
Wide - 50°
2700K986 lm
DRLBlack08  Watt
Wide - 50°
3000K1027 lm
DRLBlack08  Watt
Wide - 50°
4000K1037 lm
DRLBlack08  Watt
Wide - 50°
5000K1089 lm
DRLBlack08  Watt
Wide - 50°
6000K1130 lm
DRLDual Trim08  Watt
Wide - 50°
2700K1152 lm
DRLDual Trim
08  Watt
Wide - 50°
3000K
1200 lm
DRLDual Trim
08  Watt
Wide - 50°
4000K
1212 lm
DRLDual Trim
08  Watt
Wide - 50° 5000K
1272 lm
DRLDual Trim
08  Watt
Wide - 50°
6000K
1320 lm
DRLWhite
12 Watt
Wide - 50°
2700K1449 lm
DRLWhite
12 Watt
Wide - 50°
3000K1509 lm
DRLWhite
12 Watt
Wide - 50°
4000K1524 lm
DRLWhite 12 Watt
Wide - 50°
5000K1600 lm
DRLBlack12 Watt


DRLBlack12 Watt


DRLBlack12 Watt


DRLBlack12 Watt


DRLBlack12 Watt


DRLDual Trim12 Watt


DRLDual Trim12 Watt


DRLDual Trim12 Watt


DRLDual Trim12 Watt


DRLDual Trim12 Watt




Downloads

 PDF -     Constant Current  -   DRLR-M-08W      DRLR-W-08W

IES   -      DRLR-M-08W       DRLR-W-08W
