Description

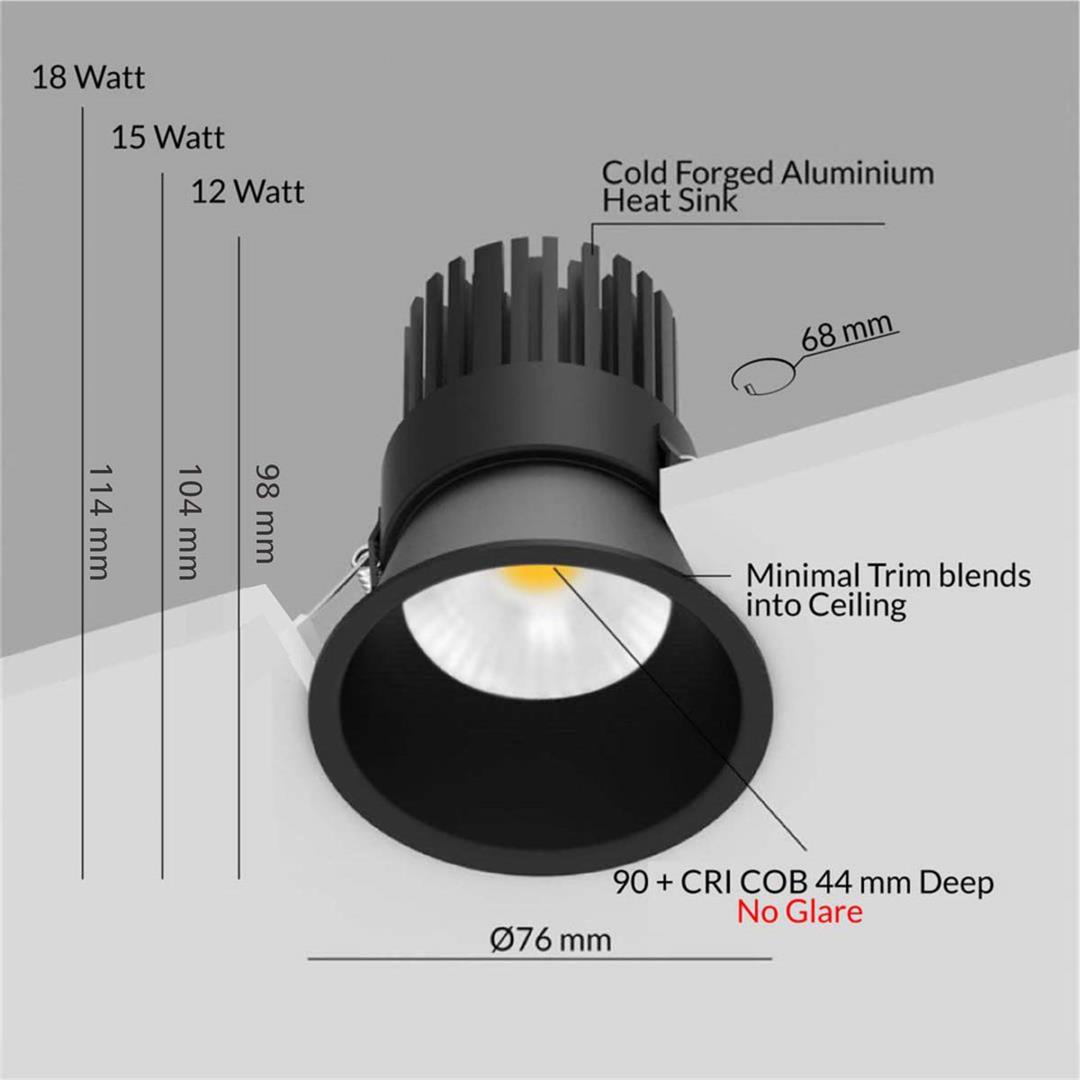

-Centrifugal Die Cast Aluminium Trim Pre-Treated
Before Powder Coating For Corrosion Resistance
-Cold Forged Aluminium Heatsink
-Optical Grade PC with UV Coated Reflector
- Polycarbonate Frosted Diffuser
-High Lumen & High CRI COB LEDs used
-Mounting: Snap-in cutout in false ceiling
DRDR-W
Technical Details
| Light Source | COB |
| Input Power | 12W / 15W / 18W
|
| Input Voltage | 220-240VAC
|
| Beam Angle | 45°
|
| Color Temperature | 2700K/ 3000K/ 4000K/ 5000K/ 6000K/ 2700K-5000K RF + Dual Color / 2700K-5000K DALI + Dual Color / 2700K-5000K Bluetooth +DUAL COLOR |
CRI
| 90
|
|---|
| Driving System | Constant Current/ TRIAC Dimming / R.F Dimming/ R.F. + DUAL COLOR/ DALI Dimming / DALI +DUAL COLOR / Bluetooth / Bluetooth +DUAL COLOR |
|---|
| Color Tolerance | max 3 sdcm
|
| Operating Temperature | -10 to 50°C
|
|---|
System Warranty
| 1 Year
|
| Model | Color | Watt | Beam Angle | Color Temp | Lumen |
DRR
| White - R
| 12 Watt
| Wide - 45°
| 2700K | 965 lm
|
DRR
| White - R
| 12 Watt
| Wide - 45°
| 3000K | 1006 lm
|
DRR
| White - R
| 12 Watt
| Wide - 45°
| 4000K | 1016 lm
|
DRR
| White - R
| 12 Watt
| Wide - 45°
| 5000K | 1066 lm
|
DRR
| White - R
| 12 Watt
| Wide - 45°
| 6000K | 1106 lm
|
DRR
| White - R
| 15 Watt
| Wide - 45°
| 2700K | 1128 lm
|
DRR
| White - R
| 15 Watt
| Wide - 45°
| 3000K
| 1175 lm
|
DRR
| White - R
| 15 Watt
| Wide - 45°
| 4000K
| 1187 lm
|
DRR
| White - R
| 15 Watt
| Wide - 45°
| 5000K
| 1245 lm
|
DRR
| White - R
| 15 Watt
| Wide - 45°
| 6000K
| 1292 lm
|
DRR
| White - R
| 18 Watt
| Wide - 45°
| 2700K | 1492 lm
|
DRR
| White - R
| 18 Watt
| Wide - 45°
| 3000K | 1554 lm
|
DRR
| White - R
| 18 Watt
| Wide - 45°
| 4000K | 1569 lm
|
DRR
| White - R
| 18 Watt
| Wide - 45°
| 5000K | 1647 lm
|
DRR
| White - R
| 18 Watt
| Wide - 45°
| 6000K | 1709 lm
|
Downloads
PDF - DRRR- W - 12W-15W-18W
IES - DRRR-12W DRRR-15W DRRR-18W
