Description
GLARE-LESS Light
CRI 90+
Pressure Die Cast Aluminium Heatsink For Better Heat Dissipation
Pressure Die Cast Aluminium Trim / Trimless Trim
Pre Treated Powder Coating on Trim
Primary Polycarbonate Lens / PC Reflector Used
Secondary Optical Grade PC Reflector Used
(Black Alloy / White/Black/Gold)
360° Rotational + 30° Tiltable
High CRI COB used
Mounting : Trim / Trimless Recessed in false ceiling
USP
*Easy Detachable of Housing From Trim Design For Easy Servicing.

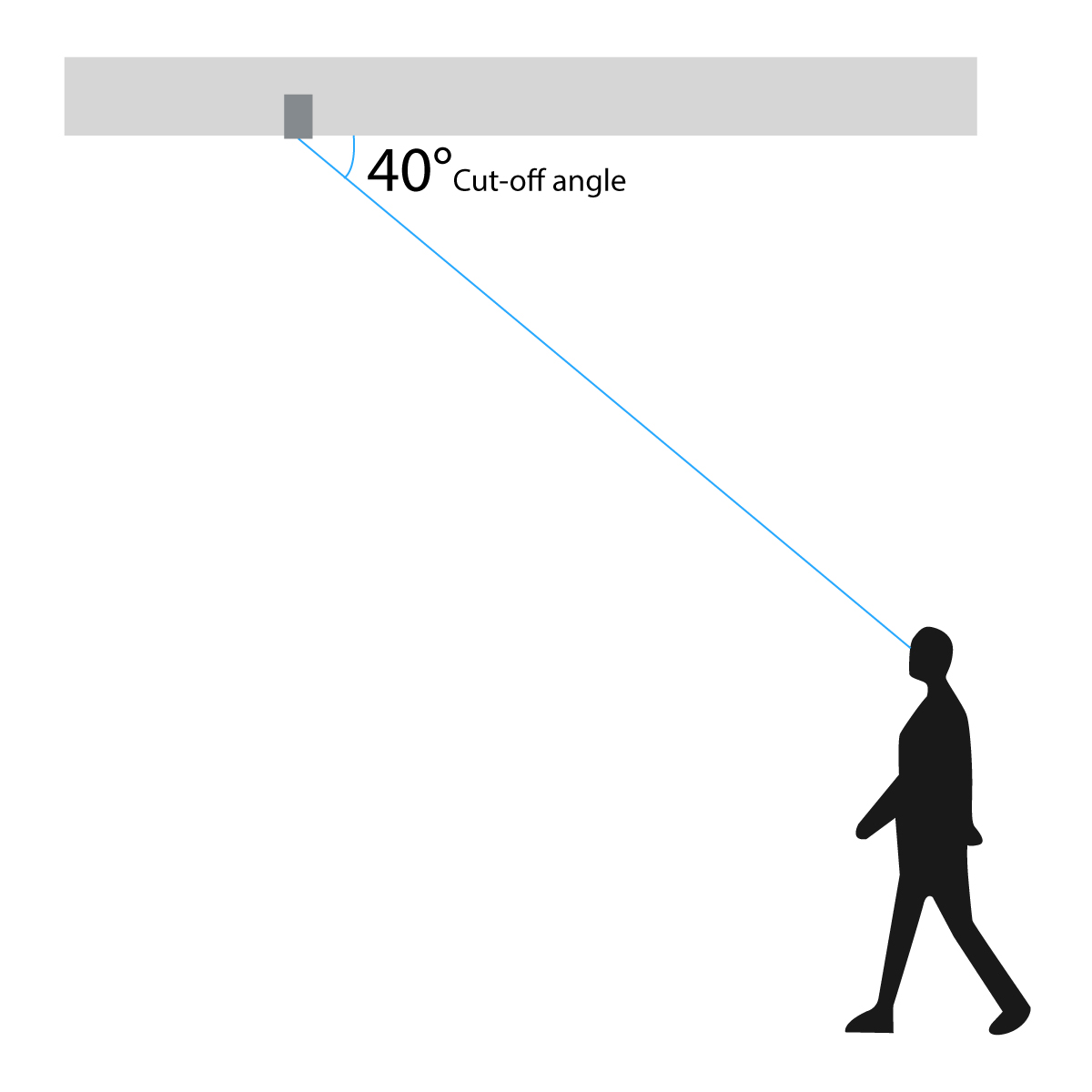

*Deep Reflector Design To Completely Eliminate Glare.
*Trim / Trimless Recessed Installation For Distinct Look in False ceiling.
Mechanical Details
| Material | Aluminum |
|---|
| Finish | White (Trimless Trim) White (Trim) |

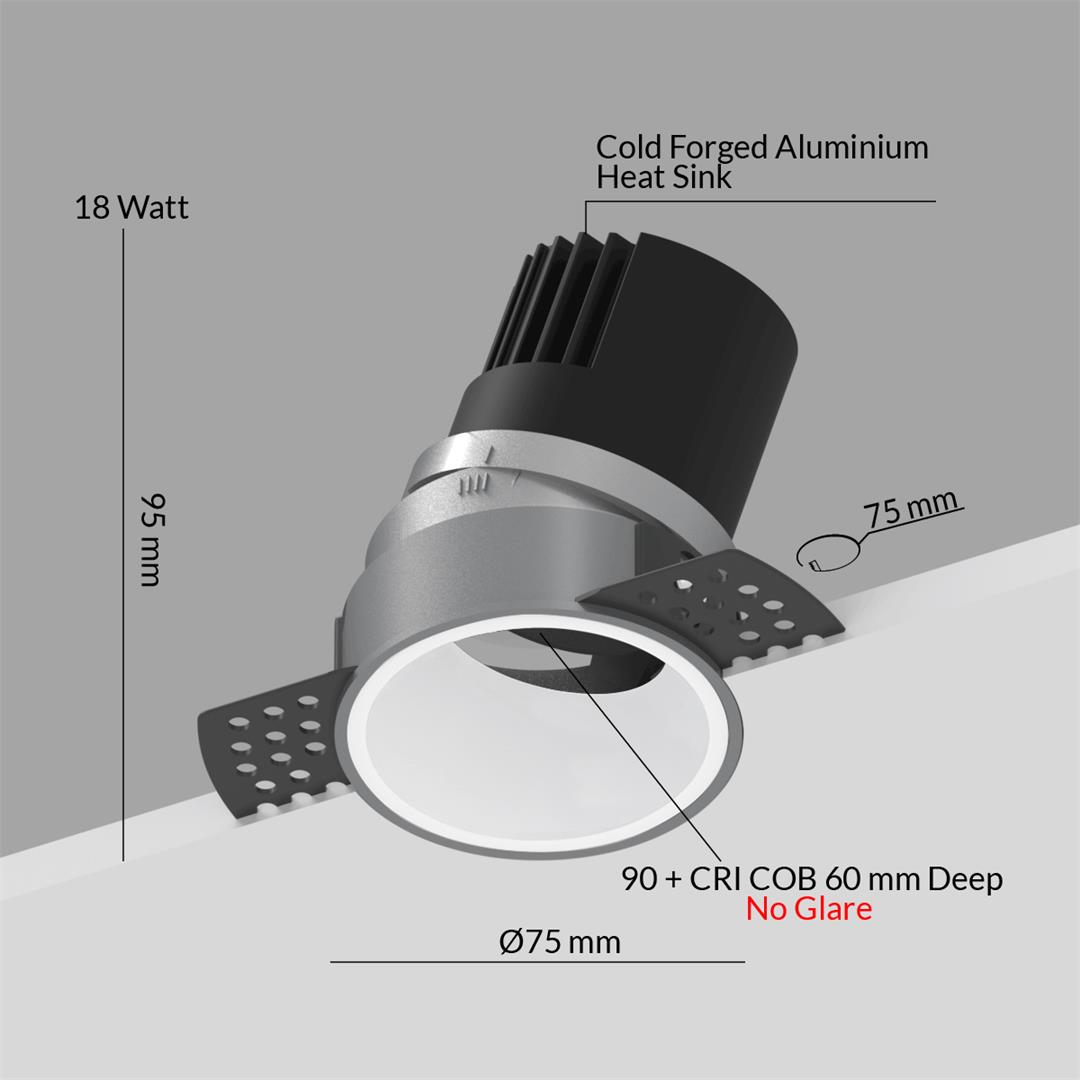

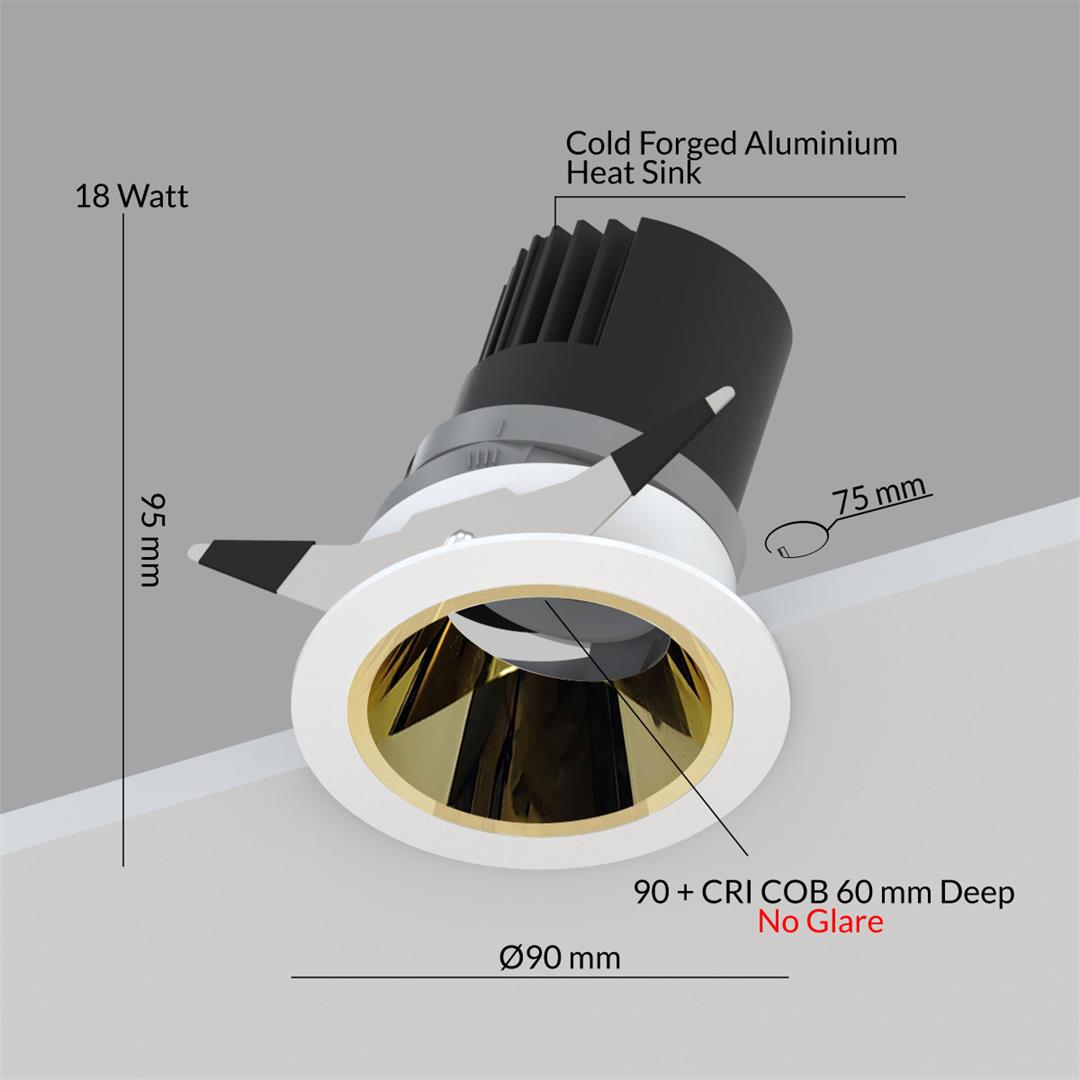

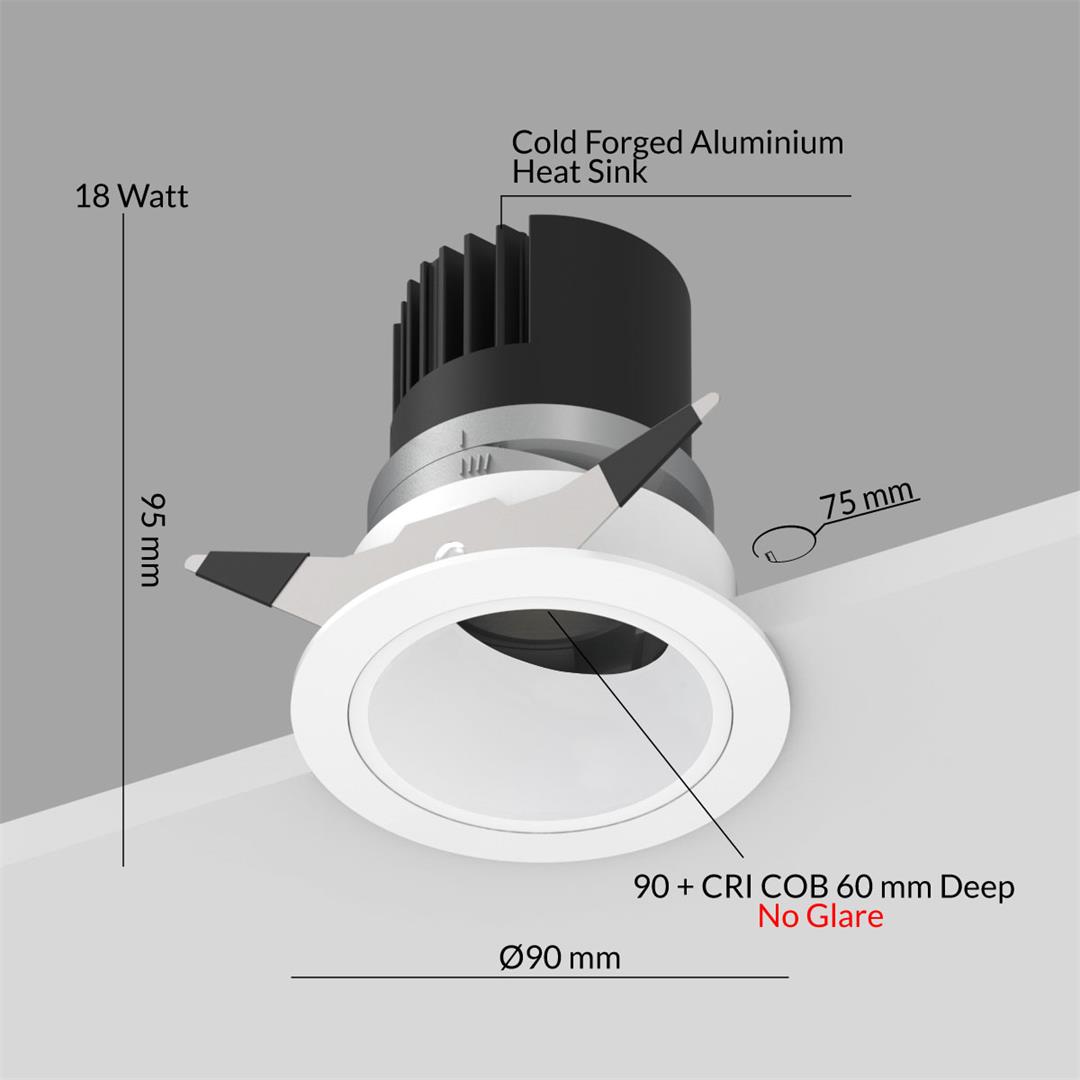

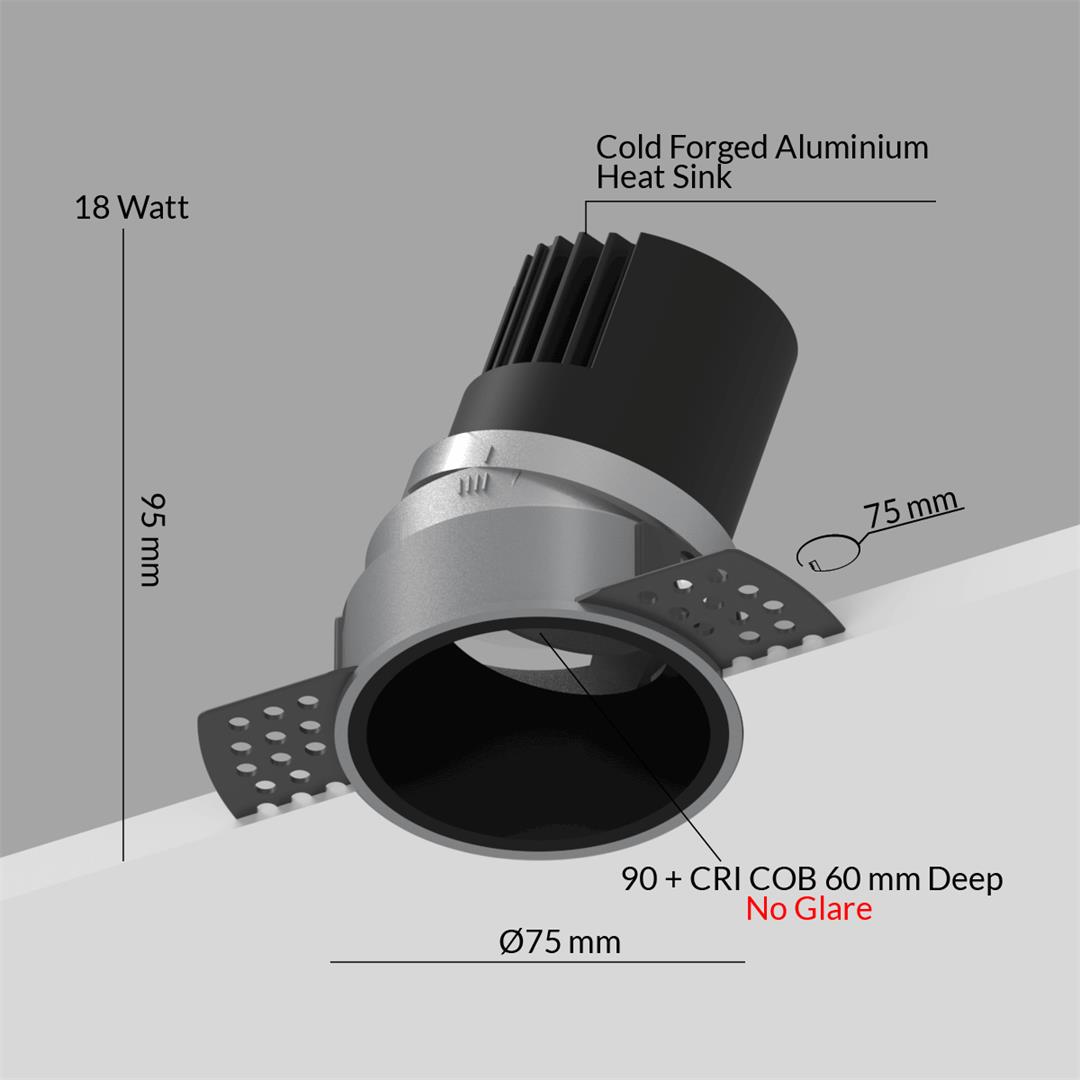

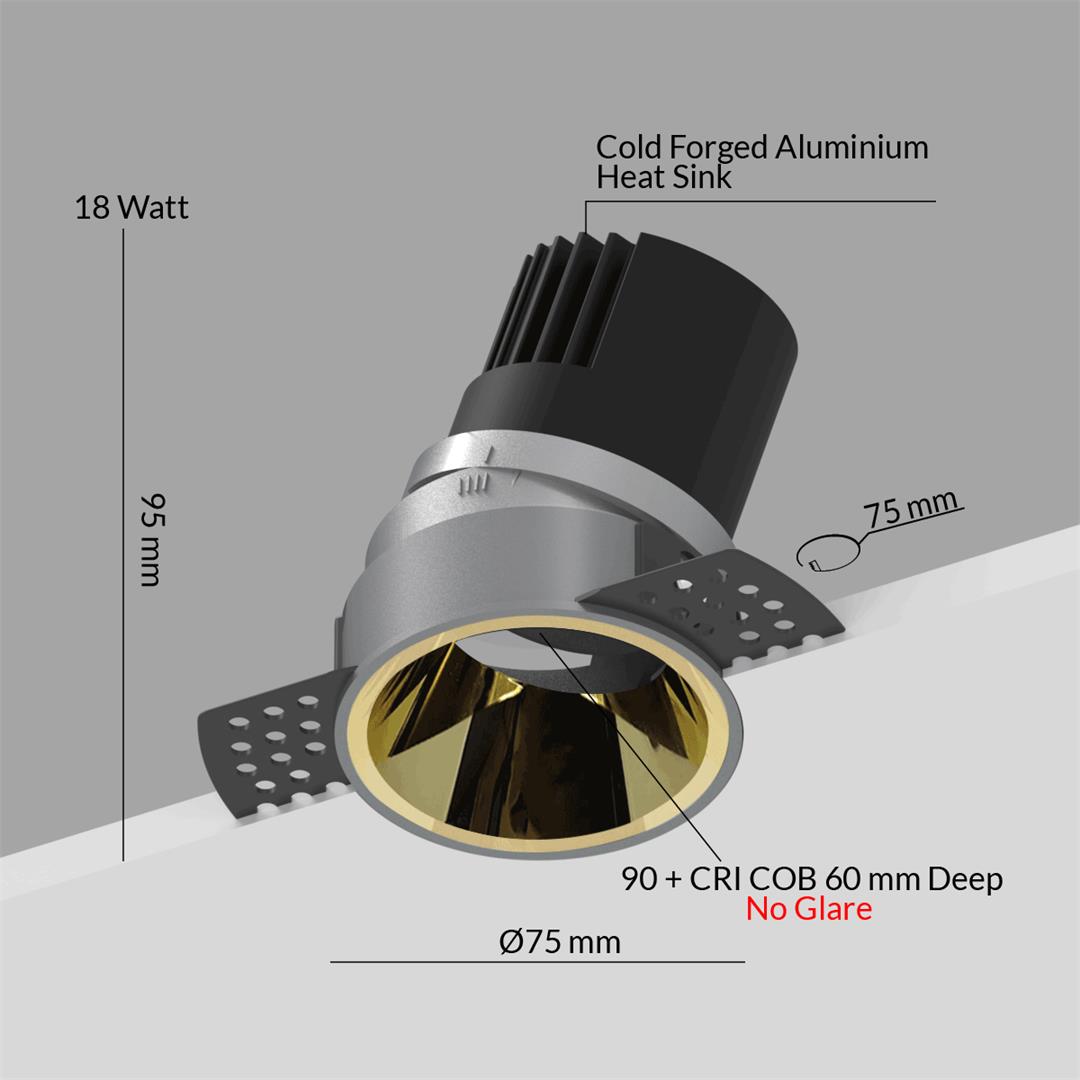

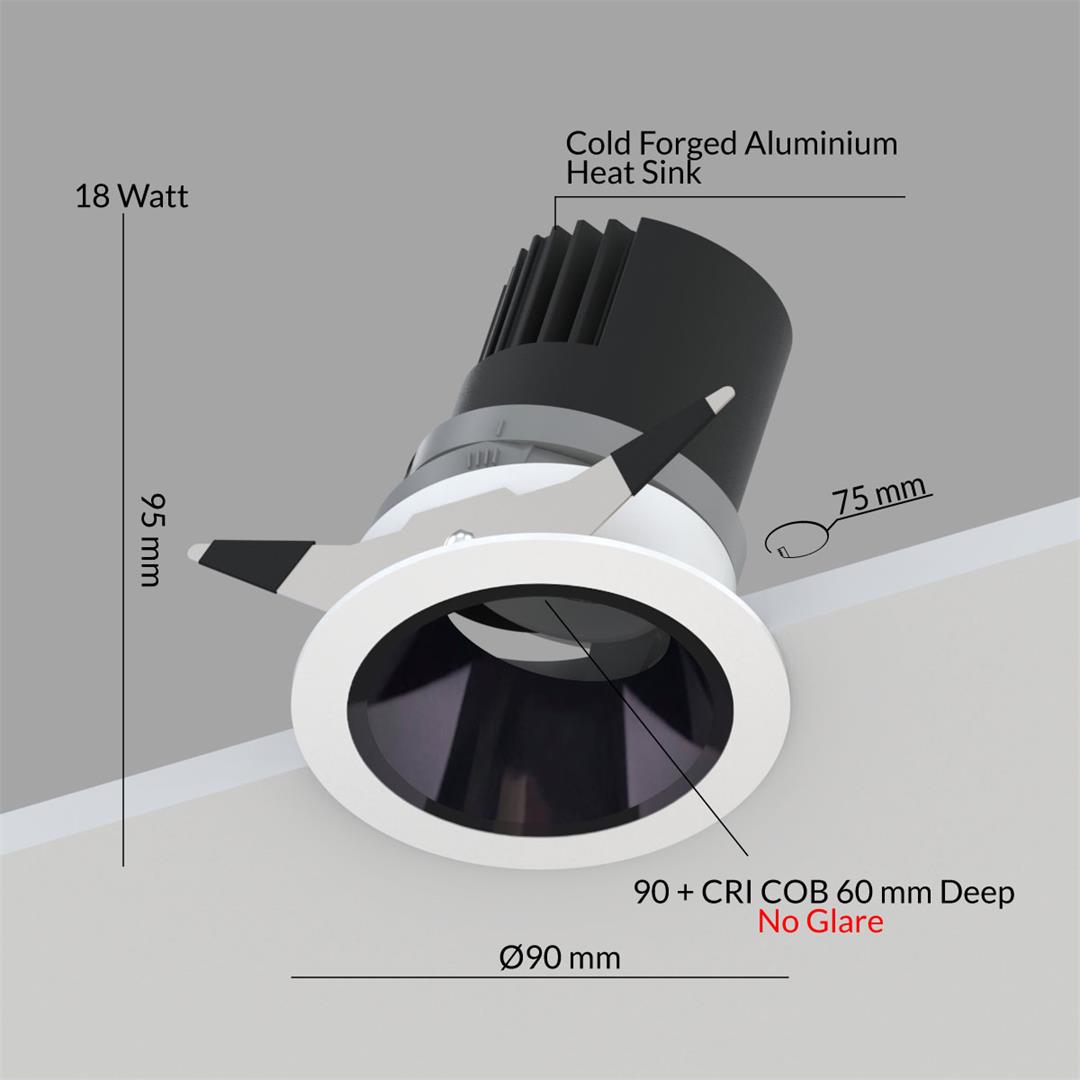

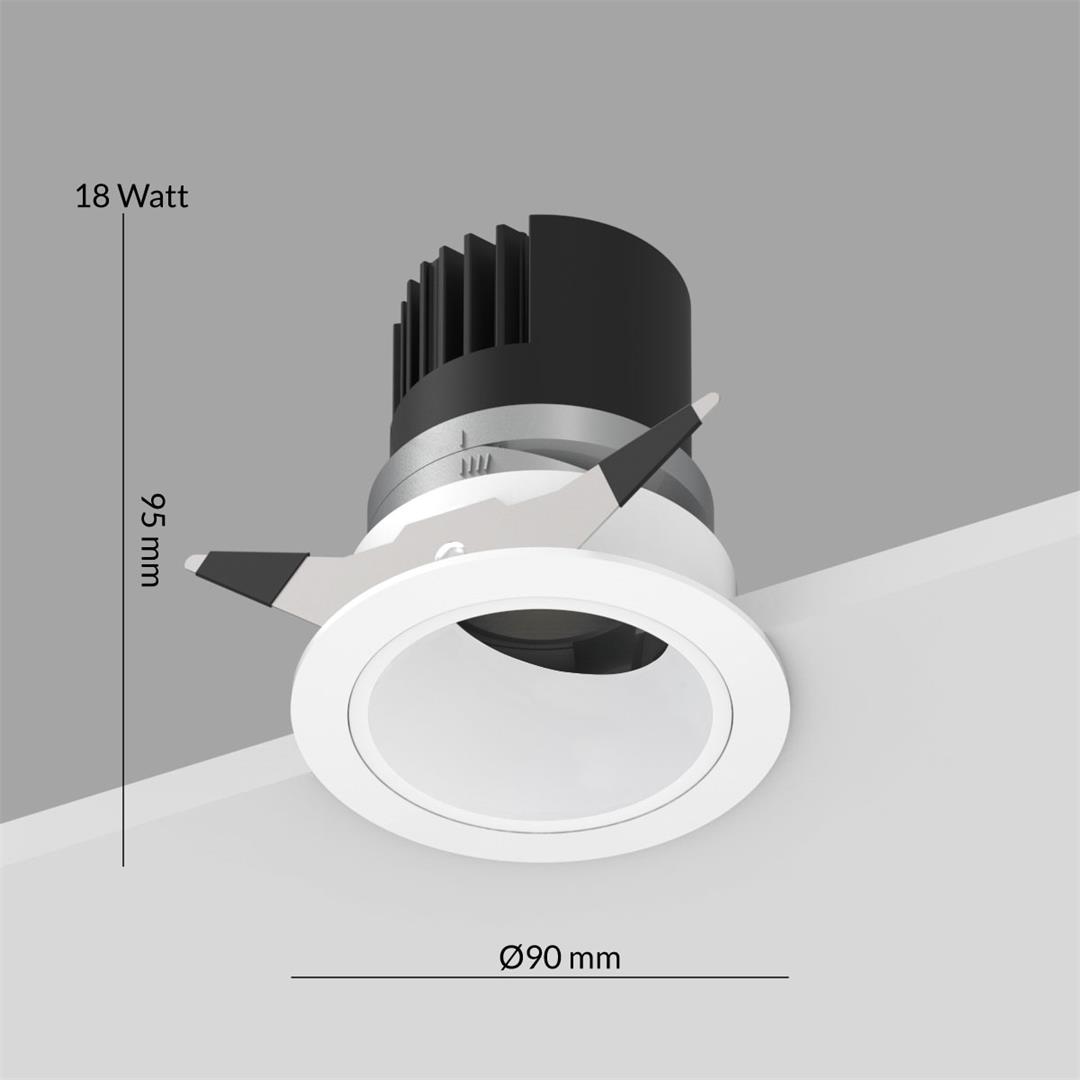

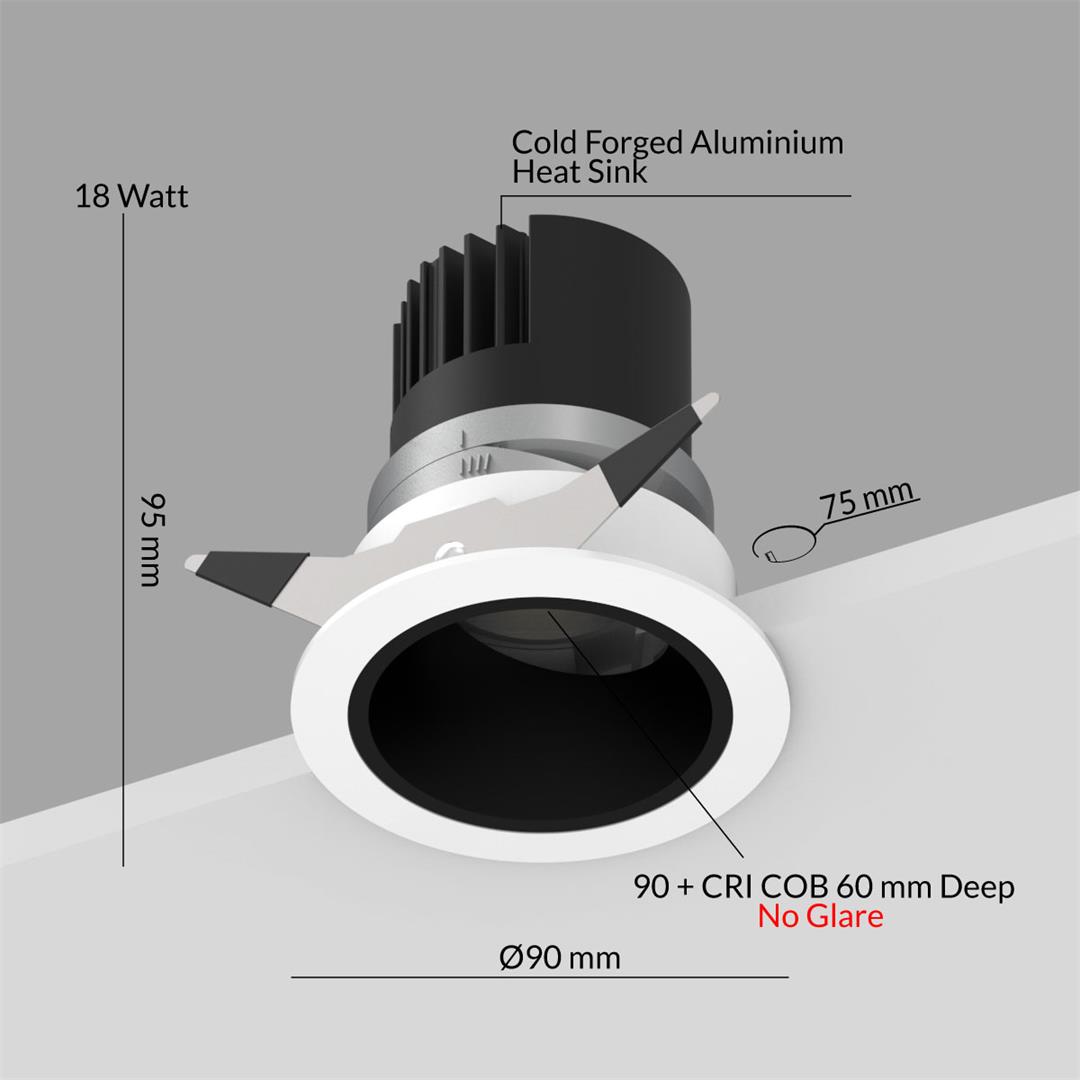

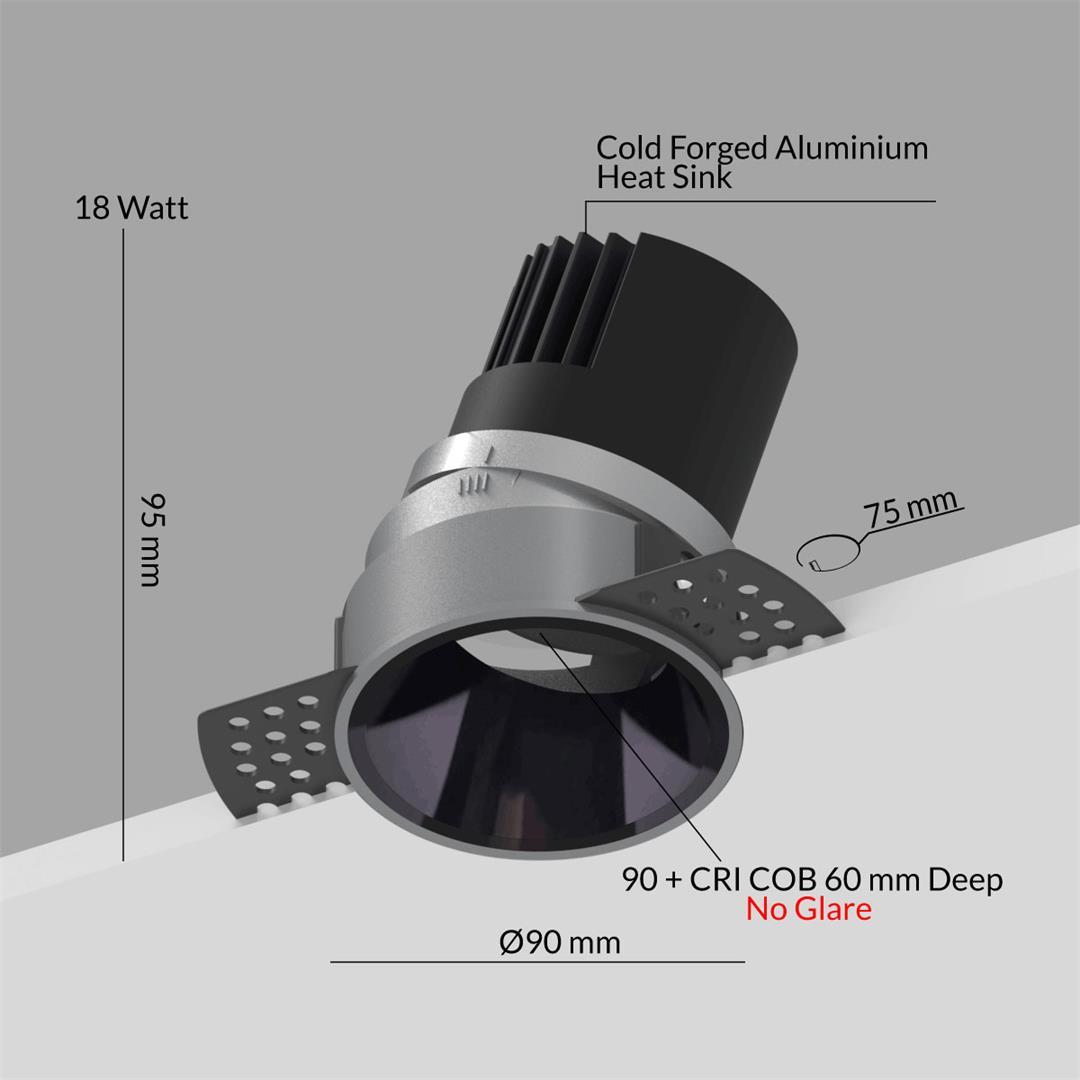

| Size | Trimless Trim - Ø75X95mm Trim - Ø90X95mm |
|---|
Cutout
| Trimless Trim - Ø75mm Trim - Ø75mm |
Rotation and Tilt
| 360° Rotational +Tilatable 30°
|
Primary Reflector
| Polycarbonate Lens - 32° PC Reflector - 52° |
Secondary Reflector
| Optical grade PC Reflector Shades - Black / Black Alloy / White / Gold |
Cable Entry
| Single Entry
|
Cable Gland
| na
|
Power Supply
| External Power Supply
|
|---|
IP Rating
| IP20 |
| Weight | 0.25Kg
|
Technical Details
| Light Source | COB |
| Input Power | 18 Watt |
| Color Temperature | 3000 / 4000 / 6000 / 2700-6000K
|

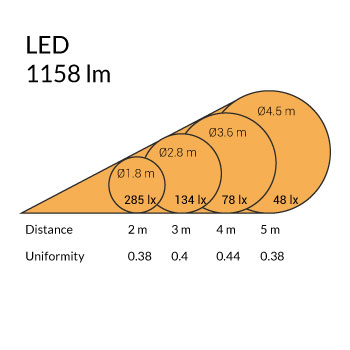

| Lumen | 32° - 1098 / 1116 / 1206 LM 52° - 792 / 810 / 864 LM |
| Efficacy | 32° - 61 / 62 / 67 LM/W 52° - 44 / 45 / 48 LM/W |

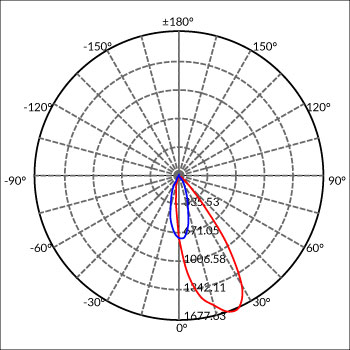

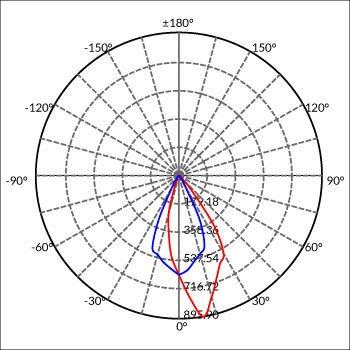

| Beam Angle | Lens - 32° Reflector - 52° |
| Input Voltage | 220-240VAC |
| Driving System | Constant Current
|
| Dimming Type | ON / OFF , TRIAC Diming , DALI Diming , R.F. Diming , Bluetooth Diming
|
|---|
| CRI | 90+
|
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C
|
| LED Life | L70 at 50000 burning Hours
|
|---|
| Safety Class | Class II
|
|---|
| System Warranty | 1 Year |
|---|

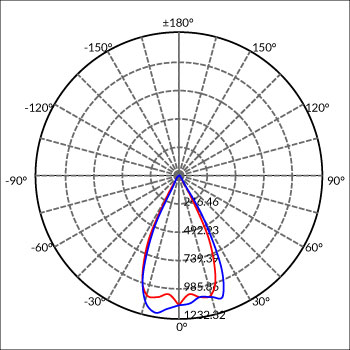

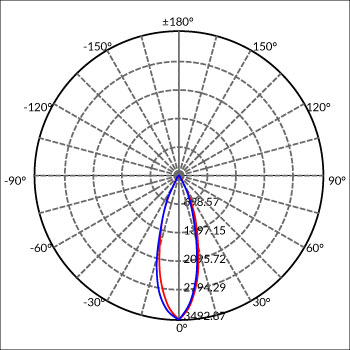

Bean Angle- Lens - 32° & Reflector - 52°
| Model | Fixture Color
| Optic Shade
| Light source
| Luminous flux
| Beam angle
|
GLW B/R 12M30
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1*18W COB (3000K) | 1098 lm
| MEDIUM - 32°
|
GLW B/R 12M40
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (4000K) | 1116 lm
| MEDIUM - 32°
|
GLW B/R 12M60
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (6000K) | 1206 lm
| MEDIUM - 32°
|
GLW B/R 12M26
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (2700-6000K) | 878-1085 lm
| MEDIUM - 32°
|
GLW B/R 12M30
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (3000K) | 1098 lm
| MEDIUM - 32°
|
GLW B/R 12M 40
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (4000K) | 1116 lm
| MEDIUM - 32°
|
GLW B/R 12M 60
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (6000K) | 1206 lm
| MEDIUM - 32°
|
GLW B/R 12M 26
| White Trim - R Black Trim - B |
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD | 1X18W COB (2700-6000K) | 878-1085 lm
| MEDIUM - 32°
|
GLW B/R 12M30
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD
|
1X18W COB (3000K)
| 792 lm
|
WIDE - 52°
|
GLW B/R 12M40
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1x18W COB (4000K)
| 810 lm
|
WIDE - 52°
|
GLW B/R 12M60
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1x18W COB (6000K)
| 864 lm
|
WIDE - 52°
|
GLW B/R 12M26
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1X18W COB (2700-6000K)
| 634-778 lm
|
WIDE - 52°
|
GLW B/R 12M30
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1X18W COB (3000K)
| 1098 lm
|
MEDIUM - 52°
|
GLW B/R 12M40
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1X18W COB (4000K)
| 1116 lm
|
MEDIUM - 52°
|
GLW B/R 12M60
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1X18W COB (6000K)
| 1206 lm
|
MEDIUM - 52°
|
GLW B/R 12M26
| White Trim - R Black Trim - B
|
A-BLACK ALLOY R-WHITE B-BLACK G-GOLD |
1X18W COB (2700-6000K)
| 634-778 lm
|
MEDIUM - 52°
|
Downloads
PDF 5000k PDF 4000k
PDF 3000k PDF 2700k
GLWR-18-M- (NoTiltable)
GLWR-18-M-(Tiltable)
GLWR-18-W- (Non-Tiltable)
GLWR-18-W- (Tiltable)
