Description
-Extruded Aluminium Heatsink & Housing.
-Pressure Die cast Aluminium End Cap.
-Extruded Aluminium Housing For Power Supply.
-Anodized Coating for better thermals.
-MCPCB For Better Heat Dissipation.
-High Power Leds Used.
-Clear Toughened Glass Used.
-Silicone Gasket Used for water resistance.
-SS Fasteners Used For Rust free application.
-IP68 Potted Power Supply.
-Mounting : Aluminium Bracket For Ground / Wall Surface installation.
USP
* Linear Wall Wash Application
* 180° Tiltable
* Earthing Safe For Shock proof
* Aluminium Mounting Brackets for Easy Installation on ground / wall surface
Mechanical Details
| Mounting | Aluminium Bracket For Ground / Wall Surface installation
|
Material
| Aluminum |
|---|
| Finish | Matte Silvers anodized
|

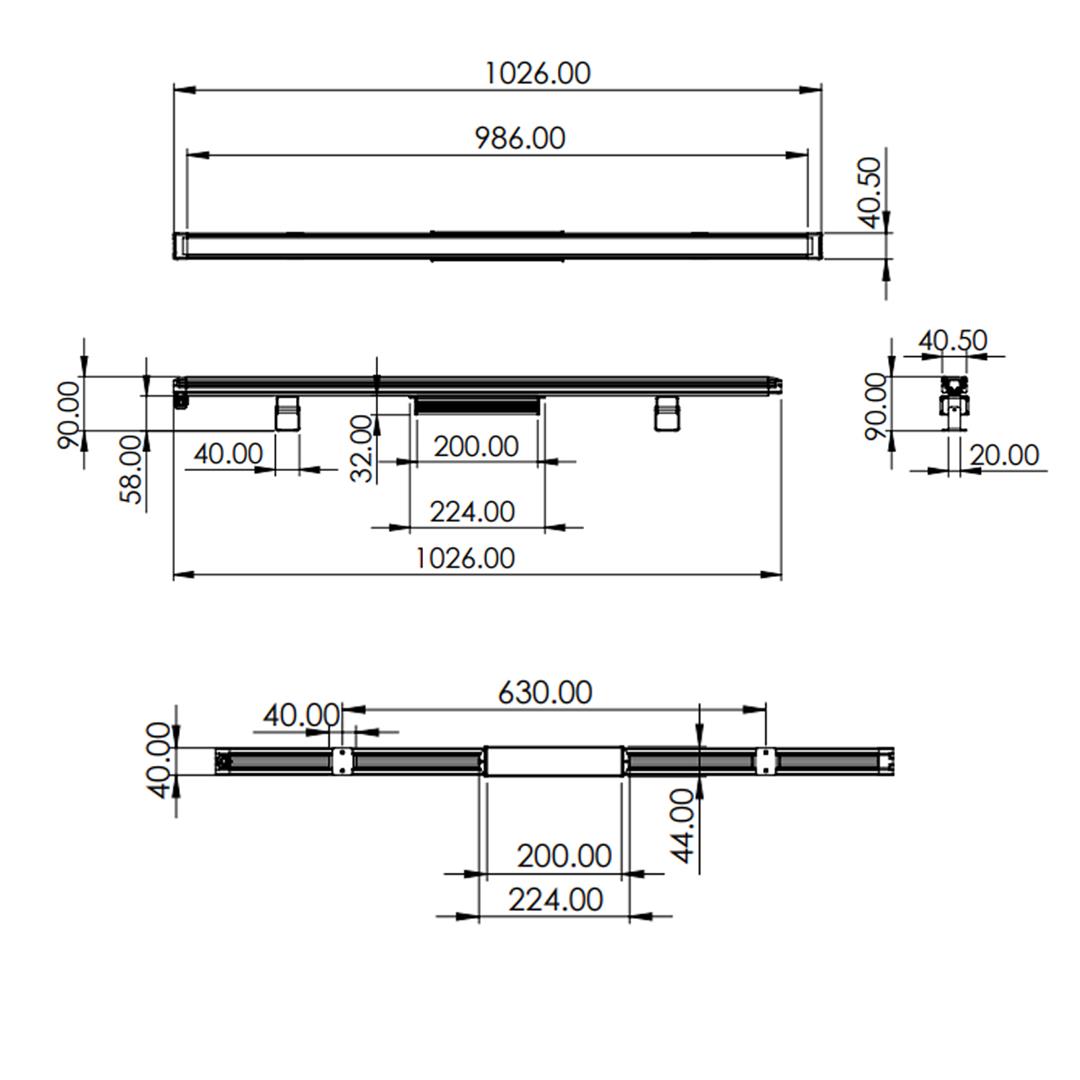

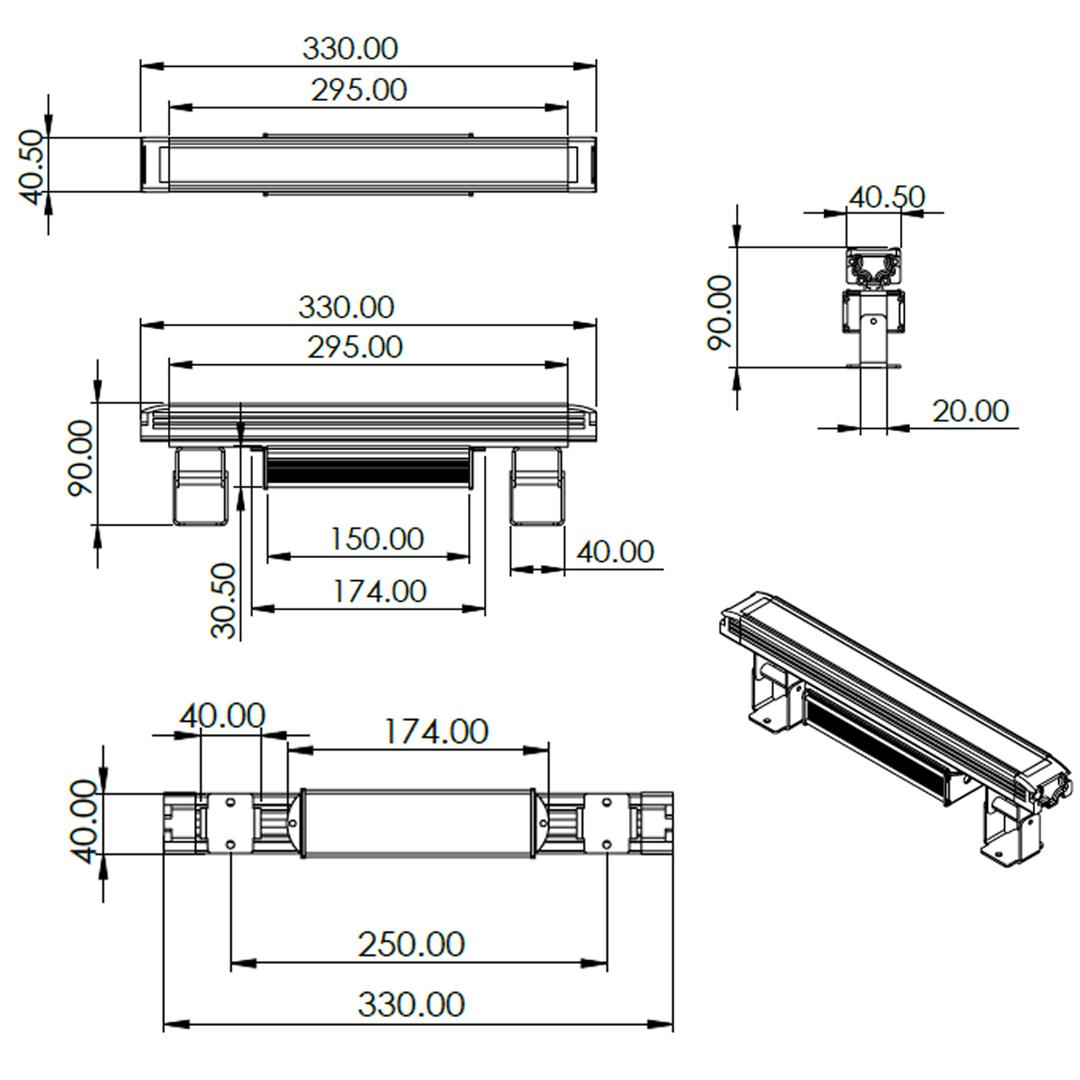

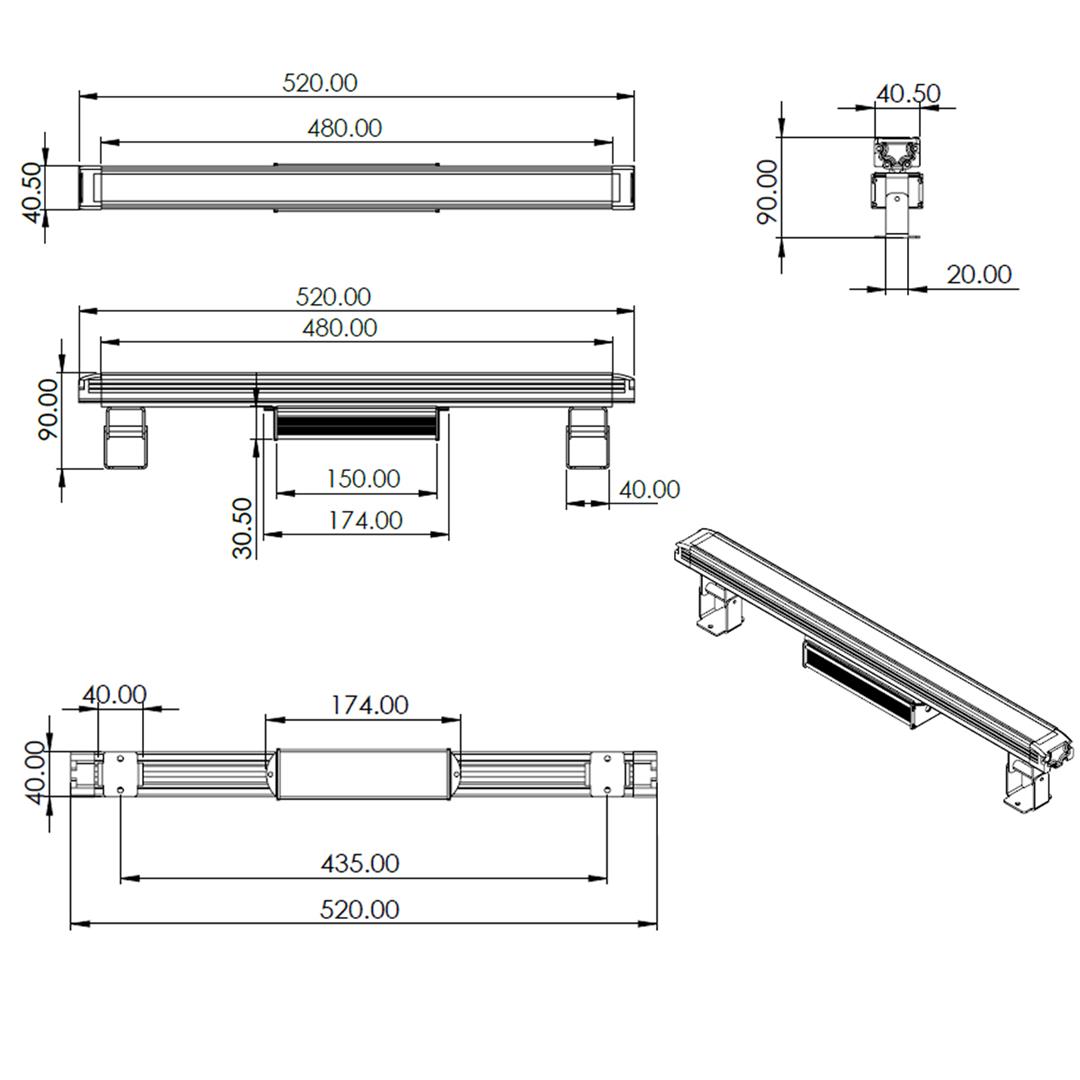

| Size | W40.5X H90mm L - 330 / 515 / 595 /1026 mm |
|---|
Rotation and Tilt
| 180° Tiltable
|
Glass
| Clear Toughened Glass
|
Lens
| Polycarbonate Lens
|
Gasket
| Silicone gasket
|
|---|
Cable Entry
| Single / Loop - In Loop -Out (as per request)
|
|---|
Cable Gland
| SS
|
Power Supply
| Built - IN (Separate Compartment)
|
|---|
IP Rating
| IP65
|
Technical Details
| Light Source | LED
|
| Input Power | 330mm - 12W 515mm - 18W 595mm - 23W 1021mm - 36W |
| Color Temperature | 3000 / 4000K |
| Lumen | Narrow - 12W - 1020 / 1104 LM 18W - 1602 / 1656 LM 23W - 2047/ 2116 LM 36W - 3060 / 3312 LM
Wide -
12W - 972 / 1008 LM 18W - 1458 / 1512 LM 23W - 1863 / 1932 Lm 36W - 2916 / 3024 LM |
| Efficacy | Narrow - 85 / 92 LM/W
Wide - 81 / 84 LM/W
|
| Beam Angle | Narrow - 14°
Wide - V-19°XH-47°
|
| Input Voltage | 220-240VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+
|
|---|
| Mac Adam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Bean Angle- 14° / V-19°XH-47°
Downloads
| Model | Fixture Color
| Light source
| Luminous flux
| Beam angle
|
LWLS12N30
| MATTE SILVER
| 12 X 0.86W LED (3000K) | 1020 lm
| NARROW - 14°
|
LWLS12N40
| MATTE SILVER
| 12 X 0.86W LED (4000K)
| 1104 lm
| NARROW - 14°
|
| LWLS12W30 | MATTE SILVER
| 12 X 0.86W LED (3000K)
| 972 lm
| WIDE - V-19°XH-47° |
LWLS12W40
| MATTE SILVER
| 12 X 0.86W LED (4000K)
| 1008 lm
| WIDE - V-19°XH-47°
|
LWLS18N30
| MATTE SILVER
| 18 X 1W LED (3000K)
| 1541 lm
| NARROW - 14°
|
LWLS18N40
| MATTE SILVER
| 18 X 1W LED (4000K)
| 1656 lm
| NARROW - 14°
|
LWLS18W30
| MATTE SILVER
| 18 X 1W LED (3000K)
| 1458 lm
| WIDE - V-19°XH-47°
|
LWLS18W40
| MATTE SILVER
| 18 X 1W LED (4000K)
| 1512 lm
| WIDE - V-19°XH-47°
|
LWLS36N30 | MATTE SILVER | 36 X 1W LED (3000K) | 3060 lm
| NARROW - 14°
|
LWLS36N40 | MATTE SILVER | 36 X 1W LED (4000K)
| 3312 lm
| NARROW - 14° |
LWLS36W30
| MATTE SILVER
| 36 X 1W LED (3000K)
| 2916 lm
| WIDE - V-19°XH-47°
|
LWLS36W40
| MATTE SILVER
| 36 X 1W LED (4000K)
| 3024 lm
| WIDE - V-19°XH-47°
|
LWLS23N30
| MATTE SILVER
| 23X 0.86W LED (3000K)
| 2047 lm
| NARROW - 14°
|
LWLS23N40
| MATTE SILVER
| 23 X 0.86W LED (4000K) | 2116 lm
| NARROW - 14°
|
LWLS23W30
| MATTE SILVER
| 23 X 0.86W LED (3000K)
| 1836 lm
| WIDE - V-19°XH-47°
|
LWLS23W40
| MATTE SILVER
| 23 X 0.86W LED (4000K)
| 1932 lm
| WIDE - V-19°XH-47°
|
