Description
Outdoor Pole Projector Light
Lamp :
Outdoor Projector Light
Extruded Aluminium Housing With Heatsink within it

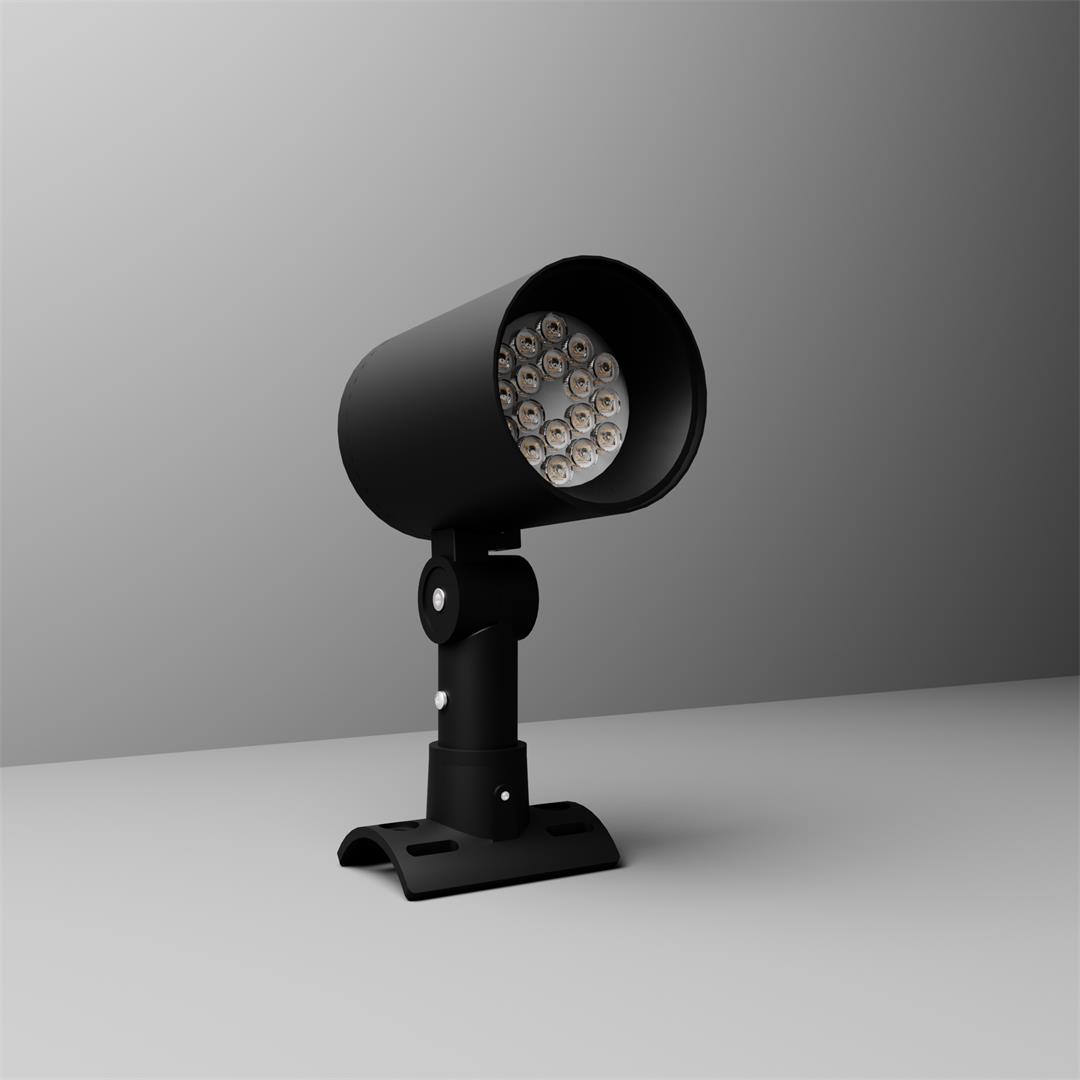

Die Cast Aluminium Pole Mount Curved Bracket
Pre - treated Powder Coating for corrosion resistance
Optical grade PMMA Lens Used
With/ Without Black Honeycomb louver As per application
Clear Toughened Glass
SS304 Grade External & Internal Fastners used for corrosion resistance
Built-IN IP68 Constant Current Control Gear
Earthing Safe for shock proof application
High Power Leds Used
Swivel Joint For 360° Rotaional + 180° Tiltable

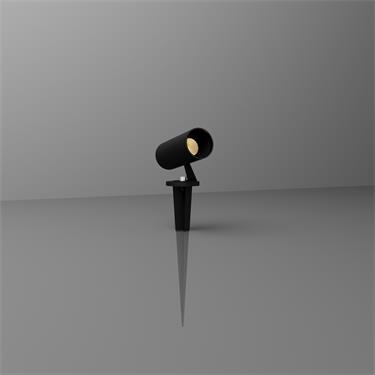

Monting: With Spike & Bracket
Protection : IP65
Pole:
-Pole made of Mild Steel
-High strength and resistance in various atmospheric conditions
-All the joints in the body of the pole are welded by using the v groove technique
-Pole used for integration of various LED modules
-The coating process makes the pole excellent corrosion resistant.
-Mounting : On Base Plate & J Anchor Bolt In Foundation
Mechanical Details
| Material | Aluminum
|
Finish
| Black |

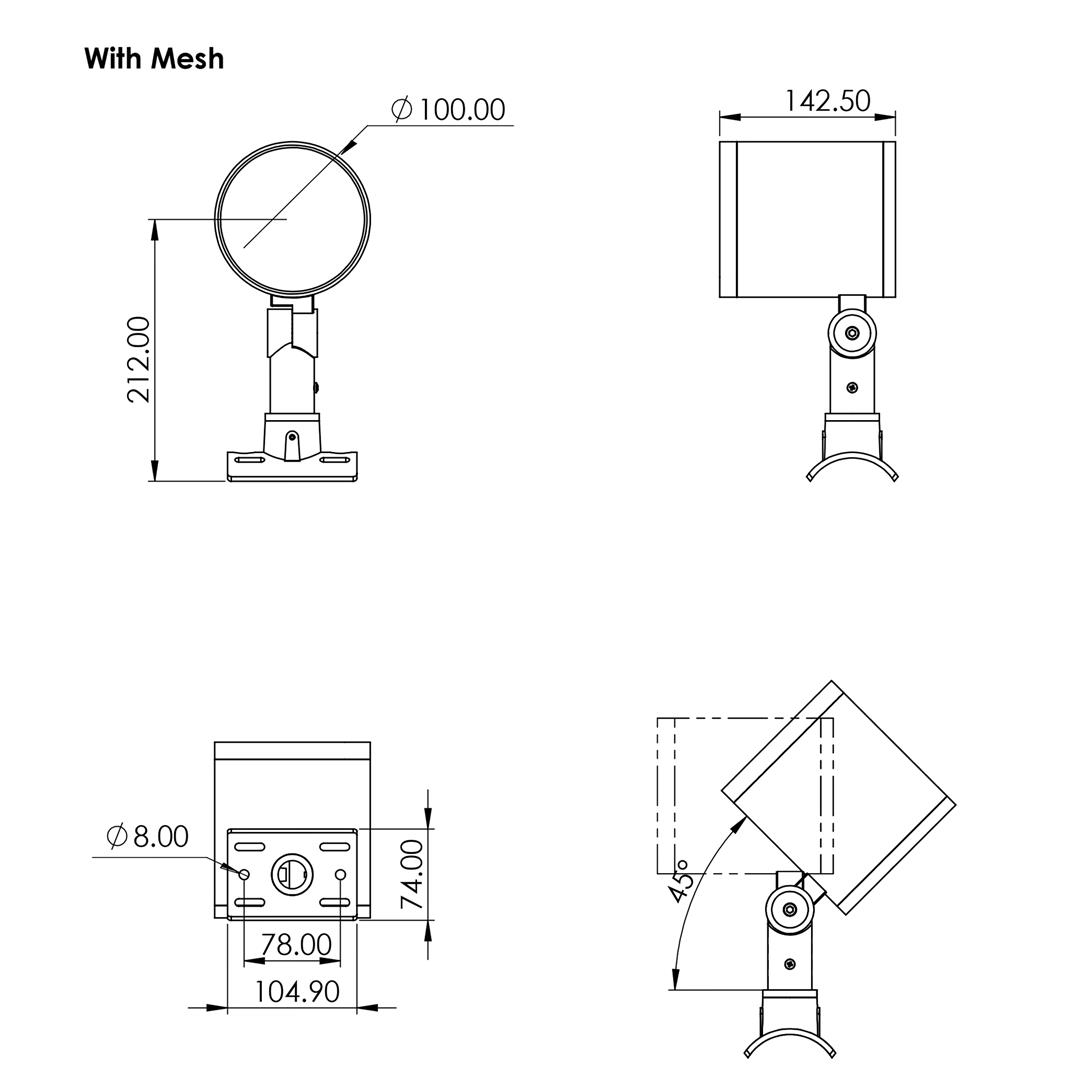

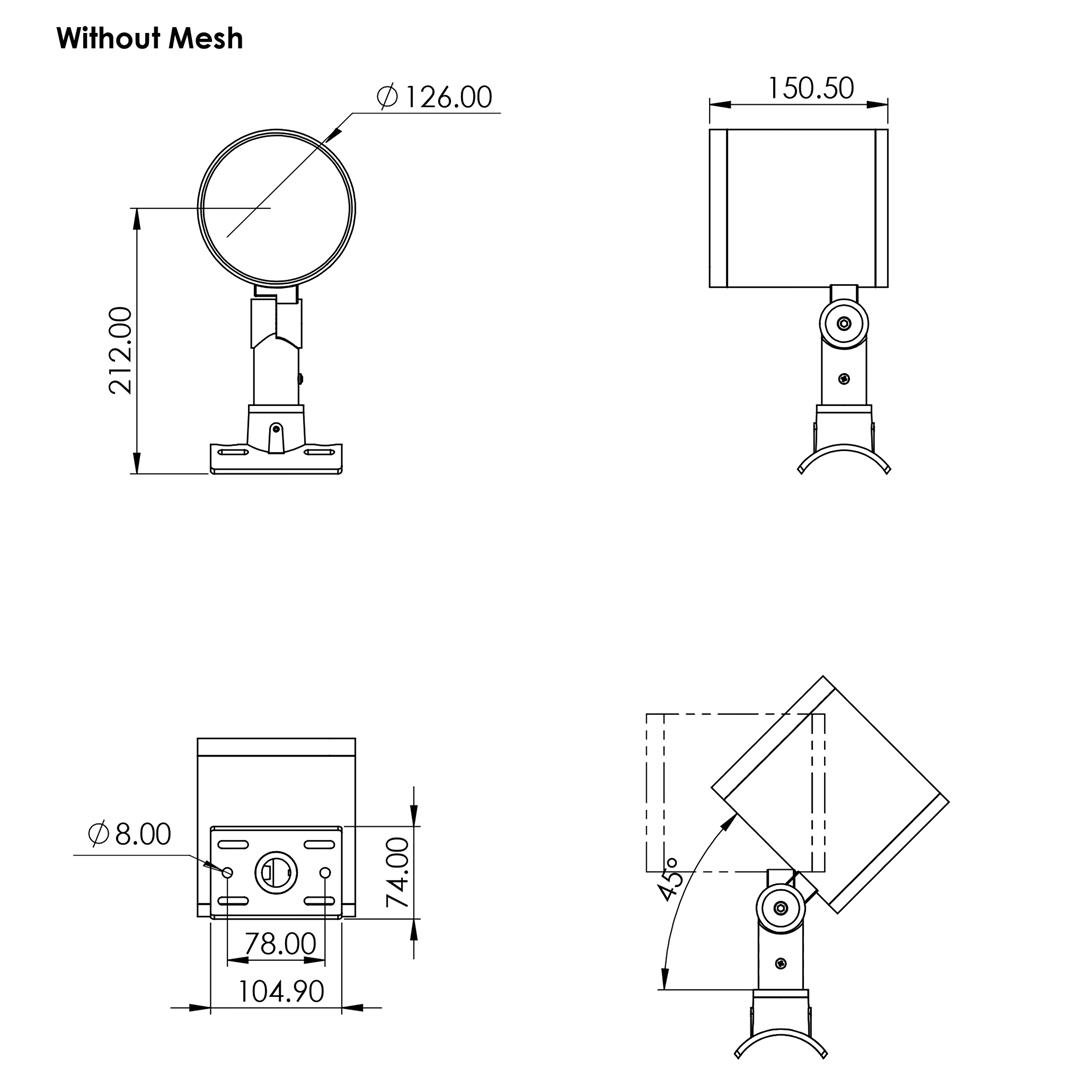

| Size | Ø 100 X 150mm Pole Bracket Suitable For : Pole OD - Ø 80mm |
Swivel
| Swivel Joint For Directional Lighting
|
Rotation & Tilt
| Lamp : 350° Rotational + 180° Tiltable
|
| Lens | Optical grade PMMA Lens (20mm Deep)
|
Louvre
| With / Without Honeycomb Louver |
Depth
| 30mm Deep
|
Glass
| Clear Toughened Glass |
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
| Cable Entry | Single Cable Entry
|
|---|
Power Supply
| Built - IN IP68 potted constant Current power supply unit
|
|---|
IP Rating
| IP65
|
|---|
Weight
| Lamp: 2.1Kg Pole : 19.1Kg |
|---|
Technical Details
Lamp
| LED
|
| Input Power | 36W
|
| Color Temperature | 3000K
|
| Lumen | 36W Without Mesh : 29° - 2664 LM 42° - 2448 LM Mesh : 26° - 2376 LM 36° - 2304 LM |
| Efficacy | 36W Without Mesh : 29° - 74 LM/W 42° - 68 LM/W Mesh : 26° - 66 LM/W 36° - 64 LM/W |
| Beam Angle | Without Mesh : 29° & 42° Mesh : 26° & 36° |
| Input Voltage | 220-240 VAC |
| Driving System | Constant Current |
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
Without Mesh : 29° & 42°
Mesh : 26° & 36°
| Model | Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | WITH | WITH |
| PB R/B/G/D 36NC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2664 LM | NARROW - 29° | CC - Constant Current | C - Clear Glass
| B - Bracket |
| PB R/B/G/D 36MC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2448 LM | MEDIUM - 42° | CC - Constant Current | C - Clear Glass
| B - Bracket |
| PB R/B/G/D 36NM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2376 LM | NARROW - 26° | CC - Constant Current | M -With Mesh | B - Bracket |
| PB R/B/G/D 36MM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2304 LM | MEDIUM - 36° | CC - Constant Current | M -With Mesh | B - Bracket |
| PS R/B/G/D 36NC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2664 LM | NARROW - 29° | CC - Constant Current | C - Clear Glass
| S - Spike |
| PS R/B/G/D 36MC30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2448 LM | MEDIUM - 42° | CC - Constant Current | C - Clear Glass
| S - Spike |
| PS R/B/G/D 36NM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2376 LM | NARROW - 26° | CC - Constant Current | M -With Mesh | S - Spike |
| PS R/B/G/D 36MM30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 36W | 18X2.0W LED
3000K | 2304 LM | MEDIUM - 36° | CC - Constant Current | M -With Mesh | S - Spike |
