Description

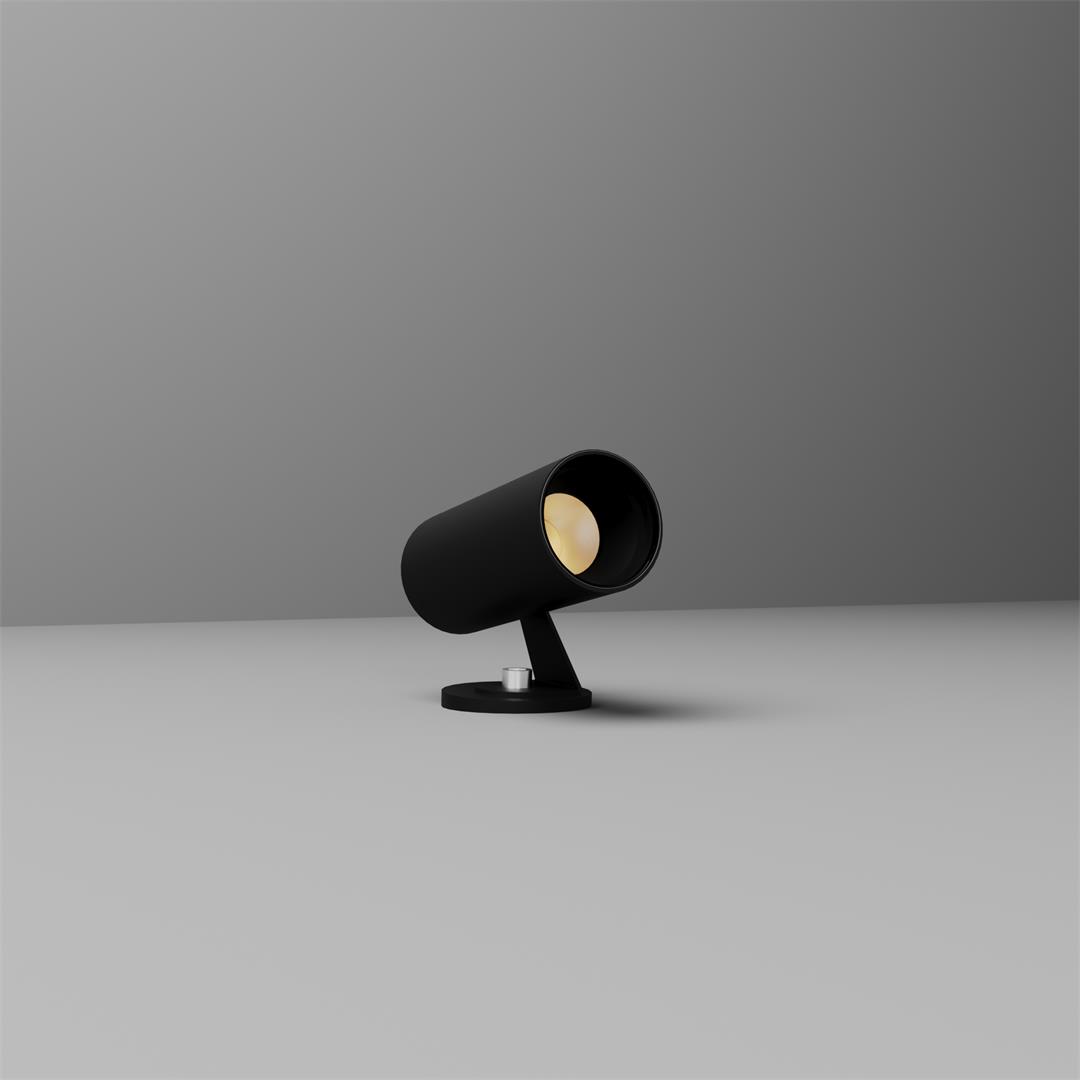

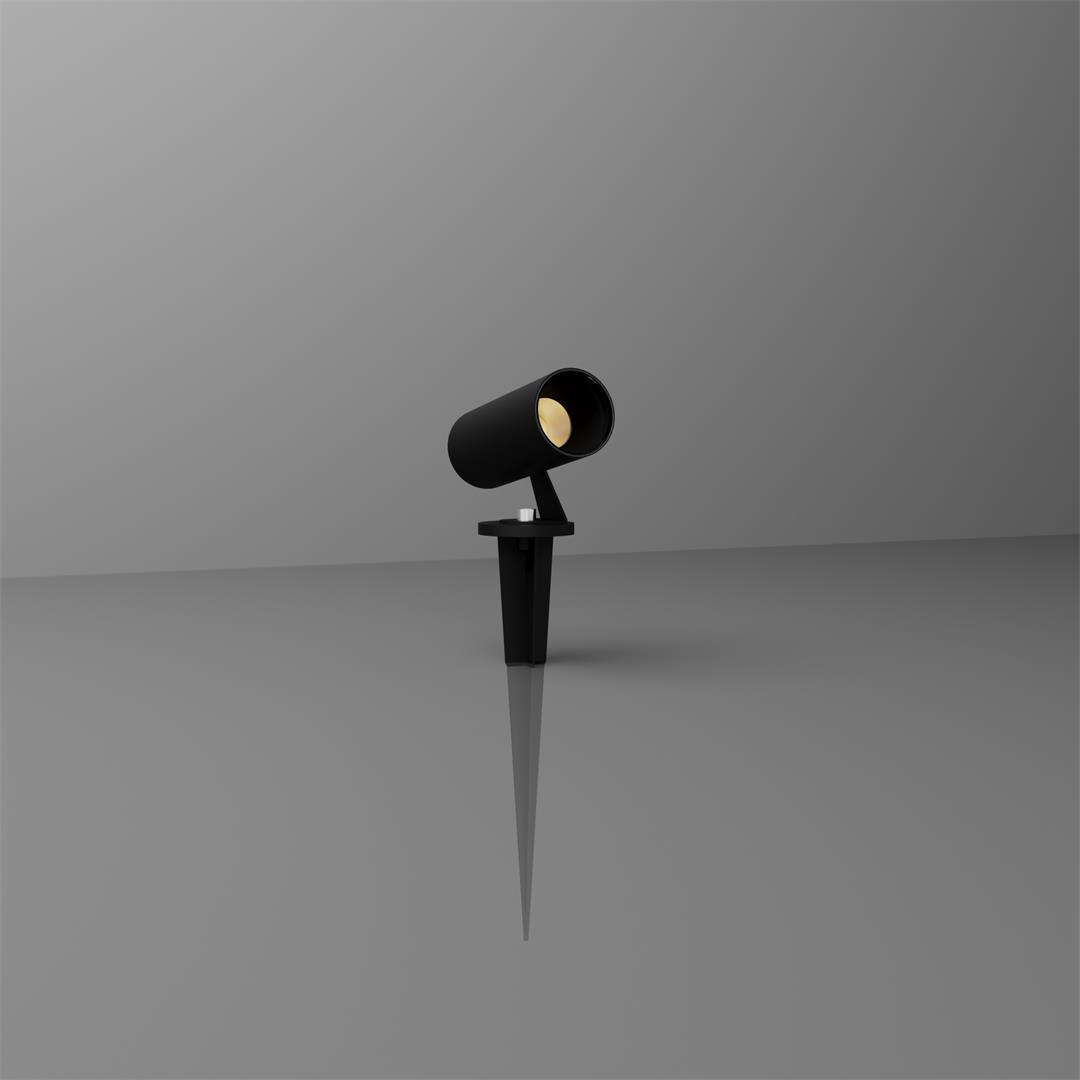

-Outdoor Projector Bracket / Spike Light
-Extruded Aluminium Housing With Heatsink within it
-Optical grade PC with UV coated reflector
-Pre - treated Powder Coating for corrosion resistance
-Clear Toughened Glass

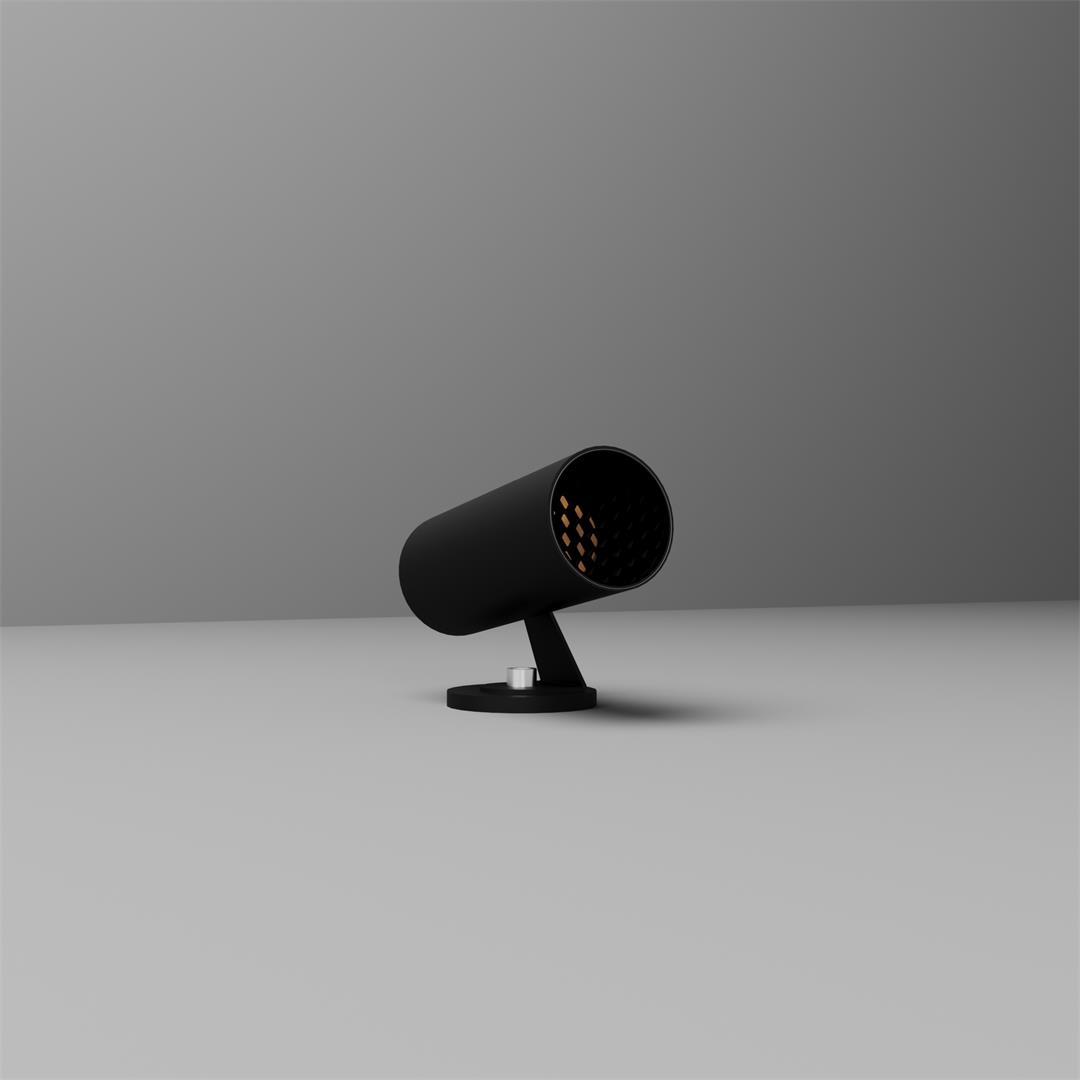

-With & Without Black Honeycomb Mesh
-SS304 Grade External & Internal Fastners used for corrosion resistance
-Built-IN IP68 Potted power Supply Used
-High CRI COB Used
-Angular C Bracket for 180° Tiltable

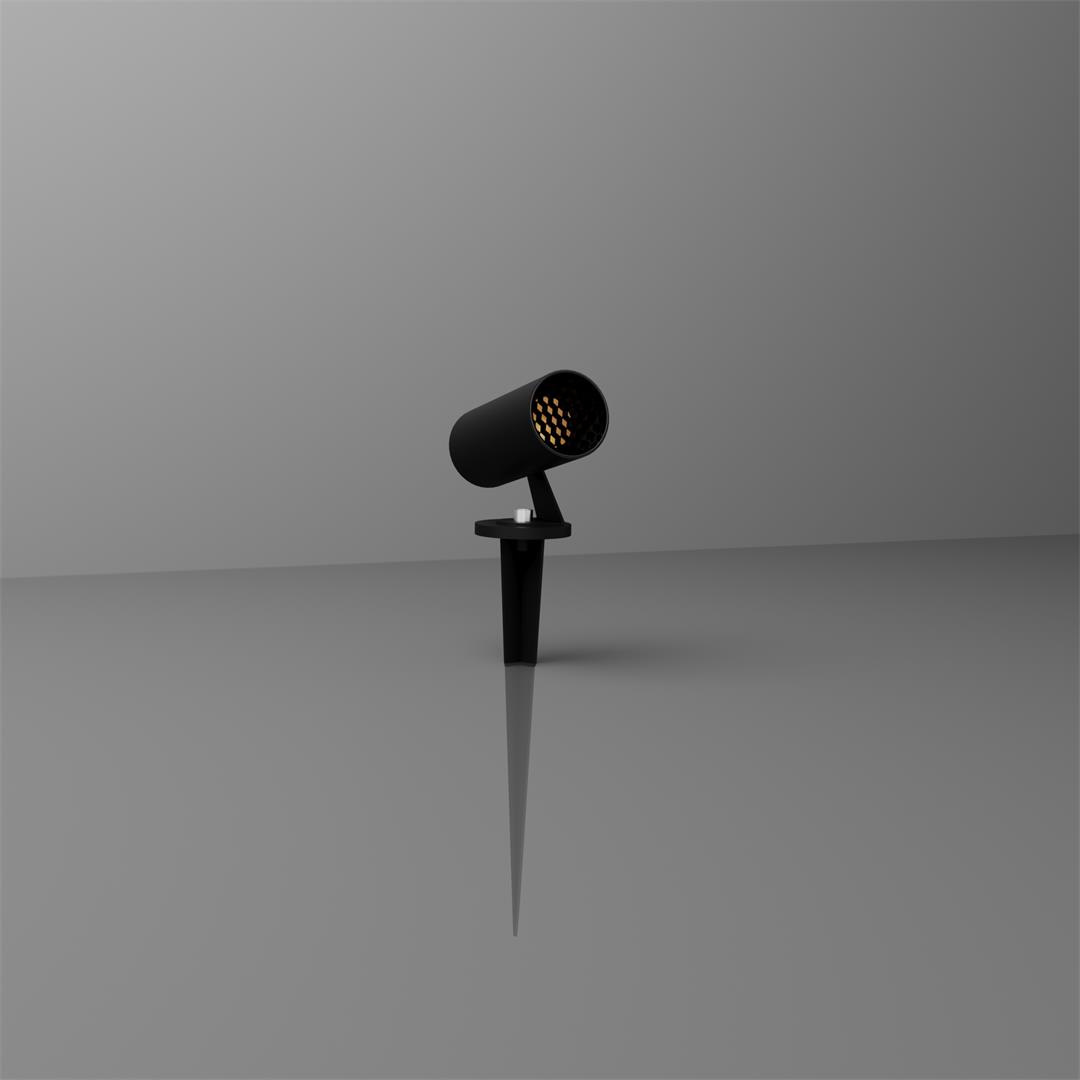

-Monting : Surface Mount With Angular Bracket & On mud with Spike
-Protection : IP65
USP
*Sleek 29mm Dia Projector
*35mm Source Depth Design With 20mm Deep optic For Low Glare
*Angular Bracket & Spike Design for Steady & Perfect Angle Of Light Projection

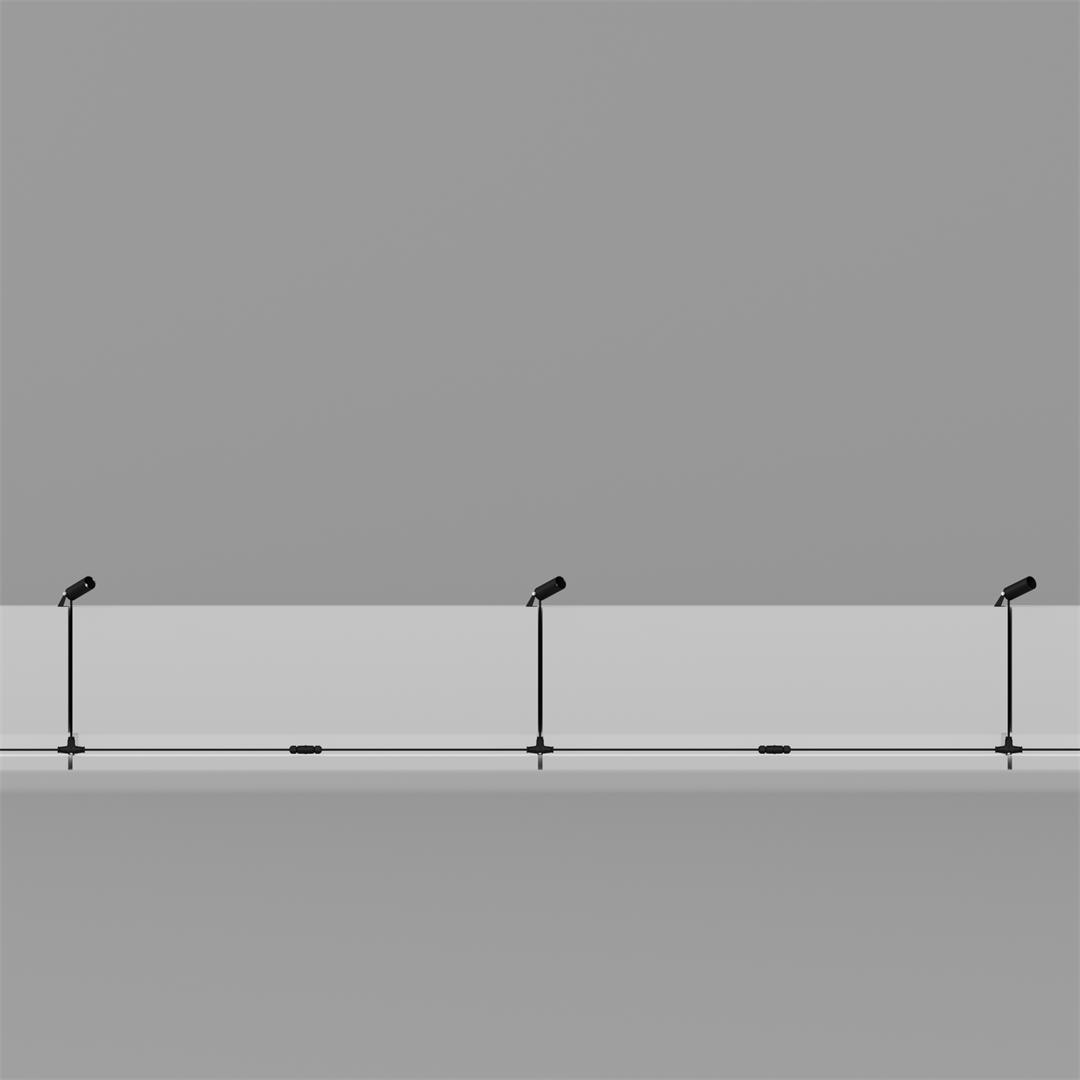

*Easy Lamp to Lamp Loop - In T Wired Connection for Easy Coonection
Mechanical Details
| Mounting | Outdoor |
| Material | Aluminum |
Finish
| Black / White / Graphite Grey / Dark Green
|

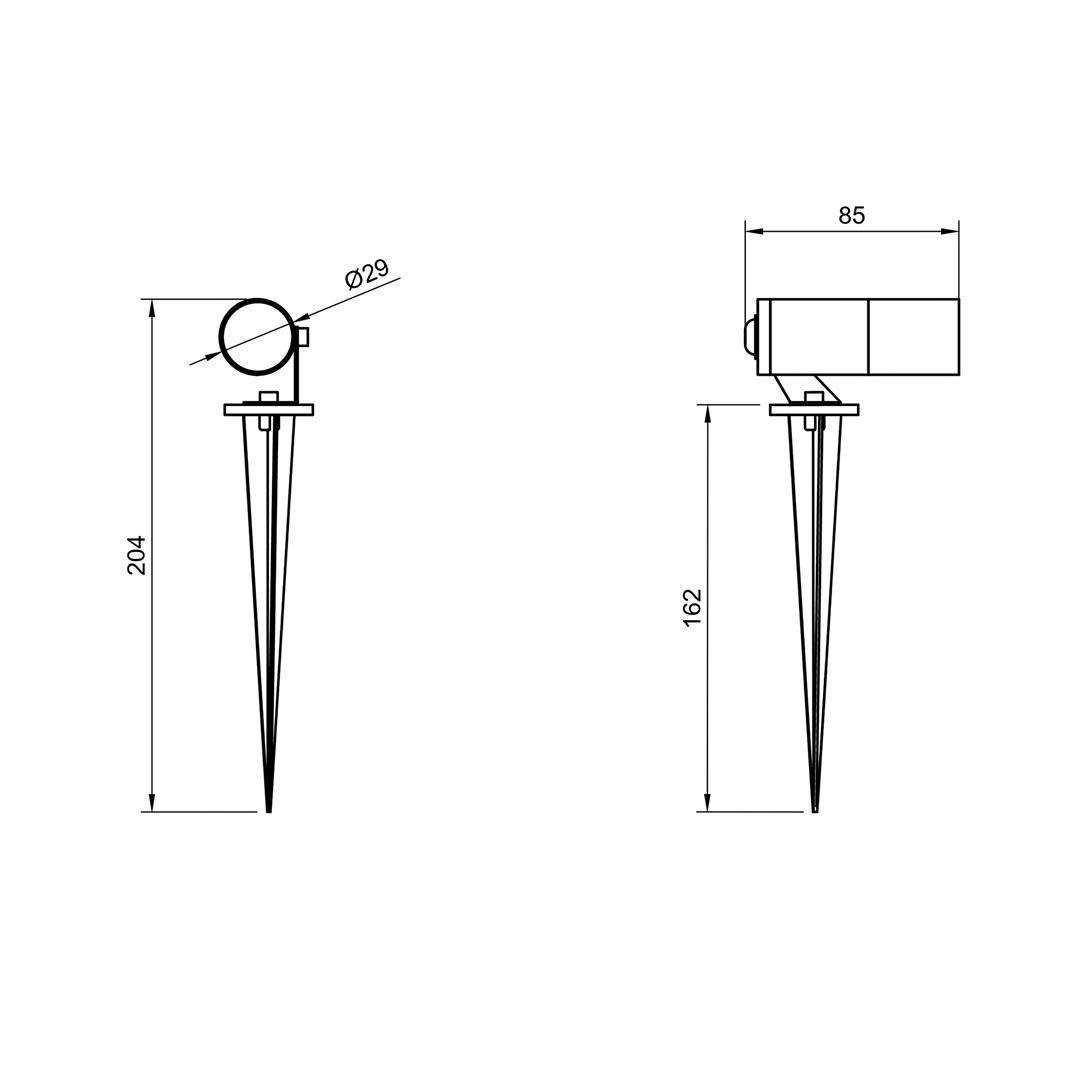

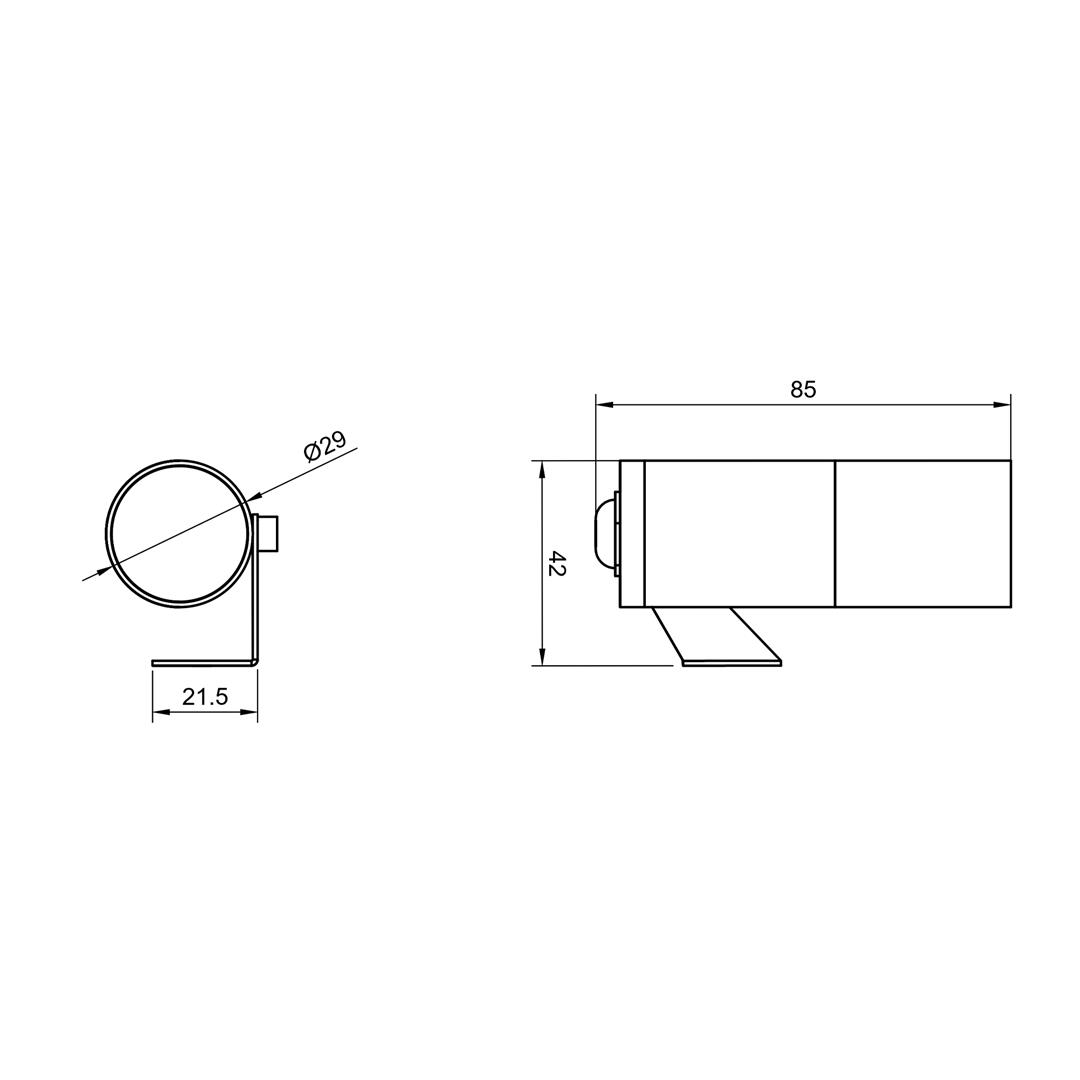

| Size | Ø29 X 85mm
|
Rotation and Tilt
| 180° Tiltable
|
Reflector
| ( 43° & 36° ) Optical grade PC Reflector (20mm Deep)
( 36° & 32° ) - Optical grade PC Reflector (30mm Deep)
|
Glass
| Clear Toughened Glass |
|---|
Depth
| ( 43° & 36° ) - 35mm Deep
( 36° & 32° ) - 45mm Deep
|
|---|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
| Cable Entry | Single Cable(L-300mm) / T - Three way wired Cable (L-1000mm)
|
|---|
Cable Gland
| SS Cable Gland
|
|---|
Power Supply
| Built - IN IP68 potted power supply Used
|
|---|
Connector
| NA |
|---|
IP Rating
| IP65
|
Weight
| 0.06Kg
|
Technical Details
Lamp
| COB |
| Input Power | 3W |
| Color Temperature | 3000 K |
| Lumen | (20mm Deep) With Mesh - 96 LM Without Mesh - 129 LM
(30mm Deep) With Mesh - 63 LM Without Mesh - 87 LM |
| Efficacy | (20mm Deep) With Mesh - 32 LM/W Without Mesh - 43 LM/W
(30mm Deep) With Mesh - 21 LM/W Without Mesh - 29 LM/W |
| Beam Angle | Without Mesh - 43° / 36° With Mesh - 36° / 32° |
| Input Voltage | 220-240VAC
|
| Driving System | Constant Current
|
| Dimming Type | ON / OFF |
|---|
| CRI | 90+
|
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C |
| LED Life | L70 at 50000 burning Hours |
|---|
| Safety Class | Class I
|
|---|
| System Warranty | 1 Year |
|---|
PB - Projector Bracket
PS - Projector Spike
|
Model
| Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | Mesh | WITH | Cable |
| PB R/B/G/D 03FC30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 129 LM | Flood - 43° | CC - Constant Current | C - Clear Glass
| B - Bracket | - Single Cable |
| PB R/B/G/D 03FM30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 96 LM | Flood - 36° | CC - Constant Current |
M - Mesh | B - Bracket | - Single Cable |
| PB R/B/G/D 03FC30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 129 LM | Flood - 43° | CC - Constant Current | C - Clear Glass
| B - Bracket | - T Cable |
| PB R/B/G/D 03FM30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 96 LM | Flood - 36° | CC - Constant Current |
M - Mesh | B - Bracket | - T Cable |
| PS R/B/G/D 03FC30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 129 LM | Flood - 43° | CC - Constant Current | C - Clear Glass
| S - Spike | - Single Cable |
| PS R/B/G/D 03FM30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 96 LM | Flood - 36° | CC - Constant Current |
M - Mesh | S - Spike | - Single Cable |
| PS R/B/G/D 03FC30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 129 LM | Flood - 43° | CC - Constant Current | C - Clear Glass
| S - Spike | - T Cable |
| PS R/B/G/D 03FM30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 96 LM | Flood - 36° | CC - Constant Current |
M - Mesh | S - Spike | - T Cable |
PB - Projector Bracket
PS - Projector Spike
|
Model
| Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | Mesh | WITH | Cable |
| PB R/B/G/D 03MC30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 87 LM | Medium - 36° | CC - Constant Current | C - Clear Glass
| B - Bracket | - Single Cable |
| PB R/B/G/D 03MM30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 63 LM | Medium - 32° | CC - Constant Current |
M - Mesh | B - Bracket | - Single Cable |
| PB R/B/G/D 03MC30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 87 LM | Medium - 36° | CC - Constant Current | C - Clear Glass
| B - Bracket | - T Cable |
| PB R/B/G/D 03MM30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 63 LM | Medium - 32° | CC - Constant Current |
M - Mesh | B - Bracket | - T Cable |
| PS R/B/G/D 03MC30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 87 LM | Medium - 36° | CC - Constant Current | C - Clear Glass
| S - Spike | - Single Cable |
| PS R/B/G/D 03MM30CC | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 63 LM | Medium - 32° | CC - Constant Current |
M - Mesh | S - Spike | - Single Cable |
| PS R/B/G/D 03MC30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 87 LM | Medium - 36° | CC - Constant Current | C - Clear Glass
| S - Spike | - T Cable |
| PS R/B/G/D 03MM30CCT | R - White
B - Black
G - Graphite Grey
D - Dark Green | 03W | 1X3W COB
3000K | 63 LM | Medium - 32° | CC - Constant Current |
M - Mesh | S - Spike | - T Cable |
Accessories
*M685 IP68 Connnector(Add Image)
