Description
-Outdoor Projector Light
-Pressure Die Cast Housing With Heatsink within it

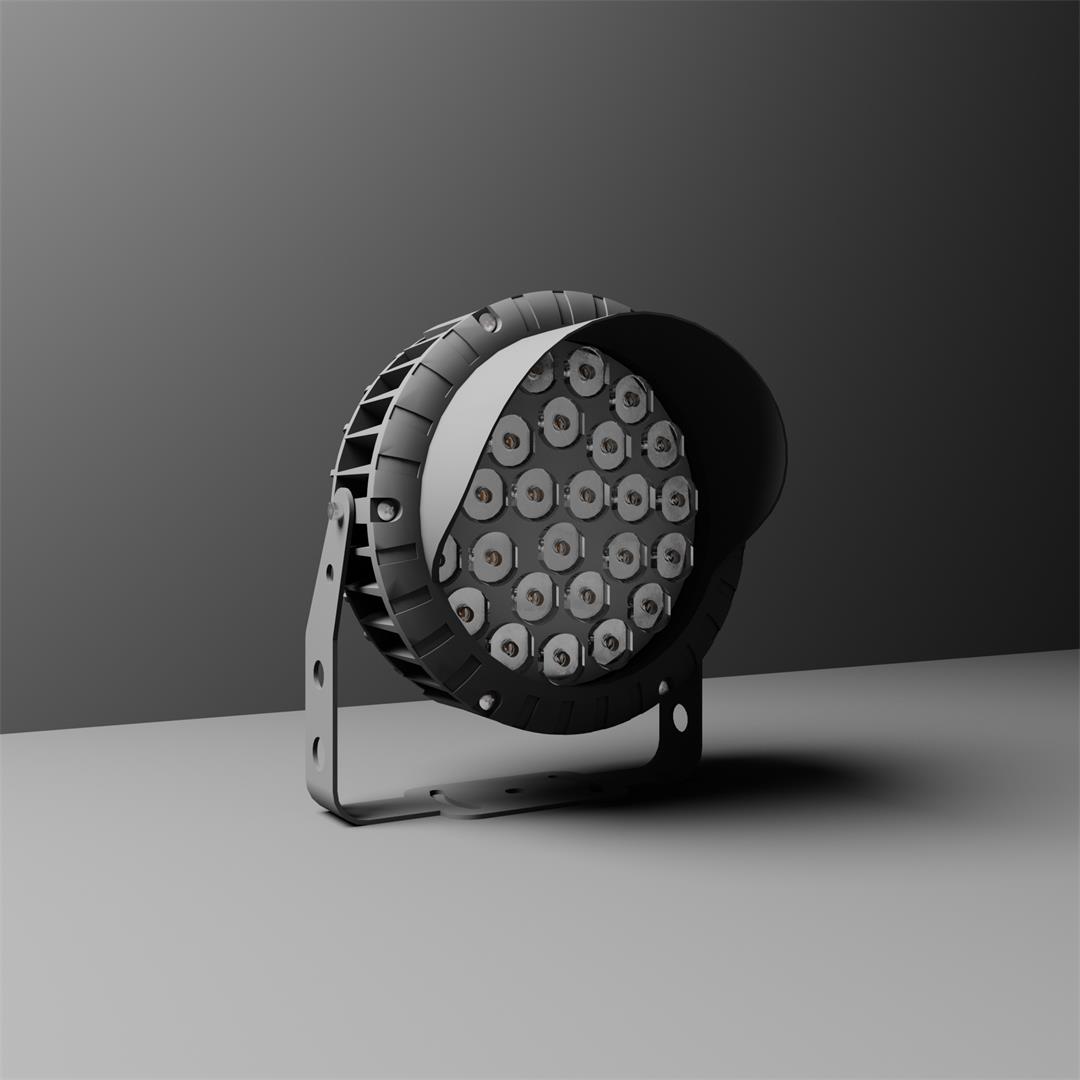

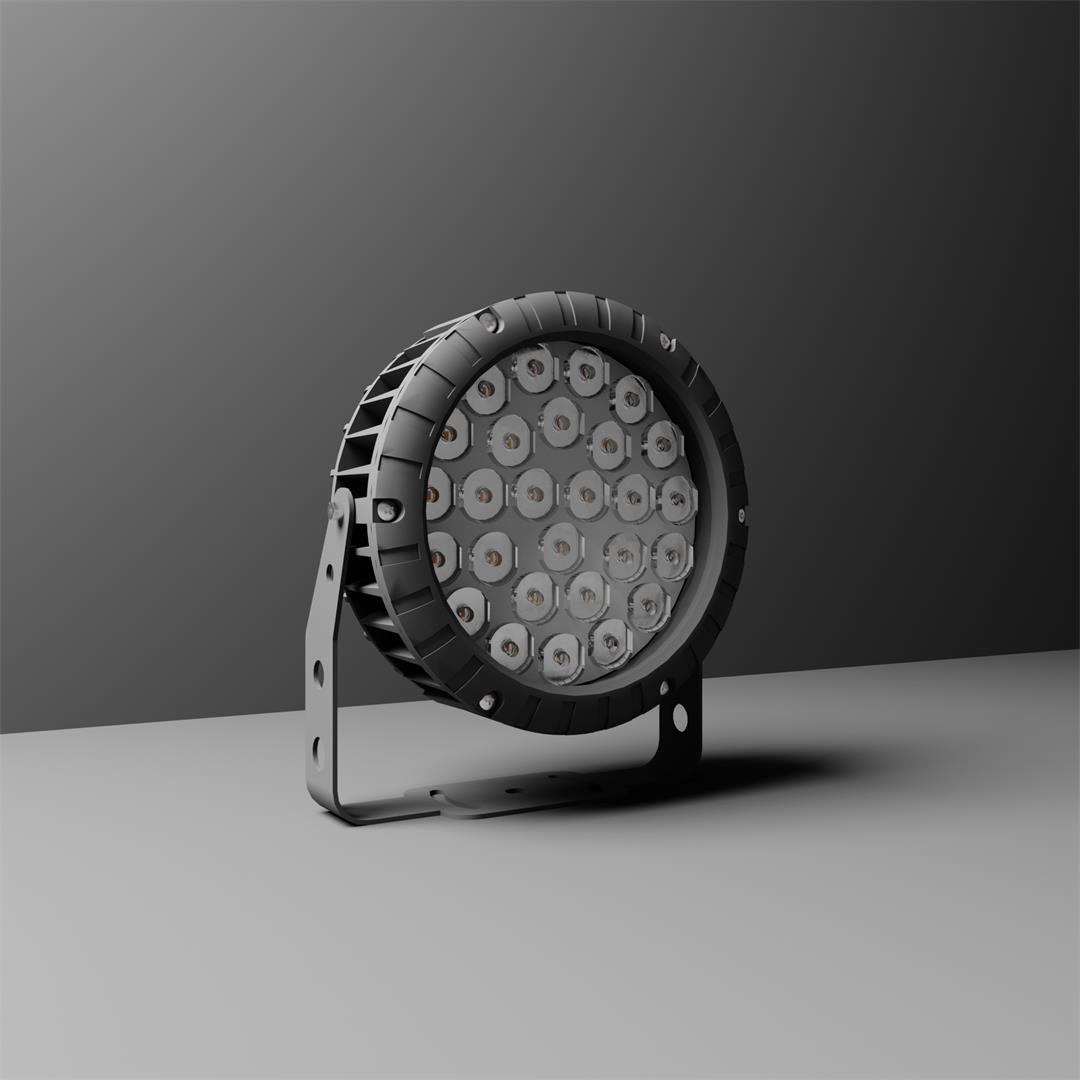

-Die Cast Aluminium Hood & WIthout Hood Frame
-Optical grade PMMA Lens Used
-Pre - treated Powder Coating for corrosion resistance
-Clear Toughened Glass
-SS304 Grade External & Internal Fastners used for corrosion resistance
-Built-IN IP68 Constant Current Control Gear
-Separate Driver Compartment
-Earthing Safe for shock proof application
-High Power Leds Used
-180° Tiltable
-Monting: With Bracket
-Protection : IP65
USP:-
*Earthing Safe Shockproof Application
*Separate Driver Compartment For Easy Servicing
*Easy Surface Bracket Mount On Pole & Ground As per application
*Hood Provided Frame For Glare reduction
*180° Tiltable For Directioning
Mechanical Details
| Mounting | Outdoor |
Finish
| Black / White / Graphite Grey / Dark Green
|
Housing Material
| Aluminum
|
|---|
Rotation and Tilt
| 180° Tiltable
|
Hood
| With Hood / Without Hood
|

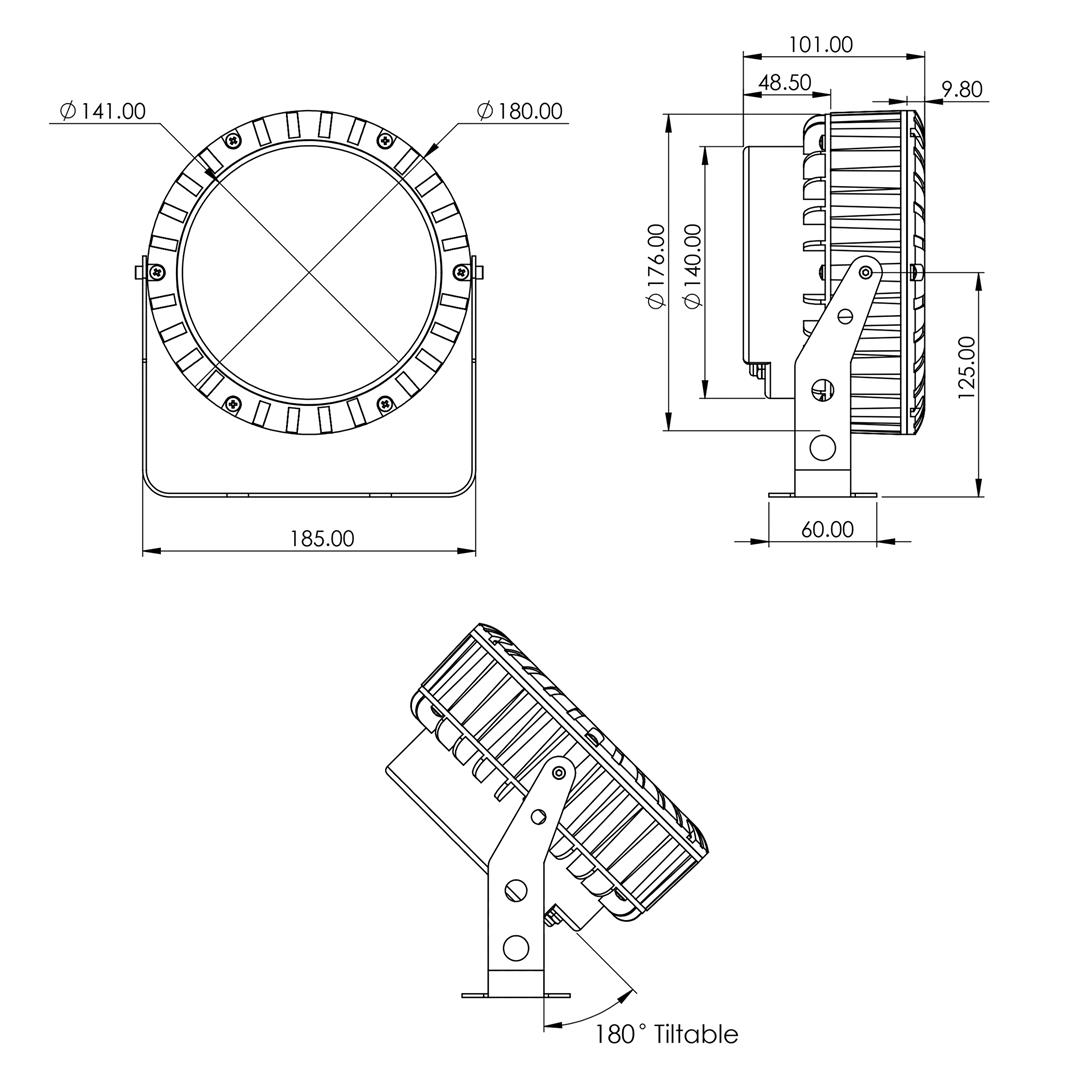

Dimension
| Ø 180mm X 101mm
|
|---|
Lens
| Optical grade PMMA Lens |
Glass
| Clear Toughened Glass
|
Fasteners
| SS 304 grade Internal & External fasteners
|
Cable
| High current carrying 3 core cable
|
Cable Entry
| Single Cable Entry ( L - 500mm) |
Cable Gland
| SS Cable Gland Used
|
Power Supply
| Built - IN IP68 Driver
|
IP Rating
| IP65
|
Weight
| 40W - 1.92Kg |
|---|
Technical Details
| Light Source | LED |
| Input Power | 40W |
| Color Temperature | 3000K
|
Lumen
| 4541 Lm |
Efficacy
| 113 Lm/W
|
| Beam Angle | Without Mesh - 14°
|
| Input Voltage | 220-240VAC
|
CRI
| 80+
|
|---|
| Driving System | Constant Current |
|---|
| Dimming Type | ON / OFF |
|---|
| Operating Temperature | -10 to 50°C
|
|---|
System Warranty
| 1 Year |
LED Life
| L70 at 50000 burning Hours
|
| Safety Class | Class I
|
| Model | Fixture Color | Power(W) | CCT(K) | Luminous Flux(LM) | Beam Angle(Degree) | Control | WITH/WITHOUT HOOD | WITH |
| PB R/B/G/D 40VN30CC- | R - White
B - Black
G - Graphite Grey
D - Dark Green | 40W | 26X1.53W LED
3000K | 4541 LM | Very Narrow - 14° | CC - Constant Current | - WITHOUT HOOD | B - Bracket |
| PB R/B/G/D 40VN30CC-H | R - White
B - Black
G - Graphite Grey
D - Dark Green | 40W | 26X1.53W LED
3000K | 4541 LM | Very Narrow - 14° | CC - Constant Current | H - WITH HOOD | B - Bracket |
